This Product Is No Longer Available
| Code | R901 |
|---|---|
| Model | BDS250 |
| Weight (kg) | 50 |
| Weight (m3) | 0.128 |
| Weight (Freight) | 50 |
| Dimensions (cm) | 71 x 41 x 44 |

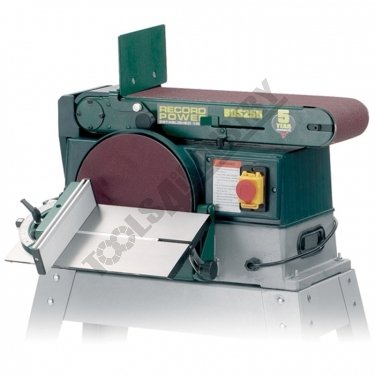

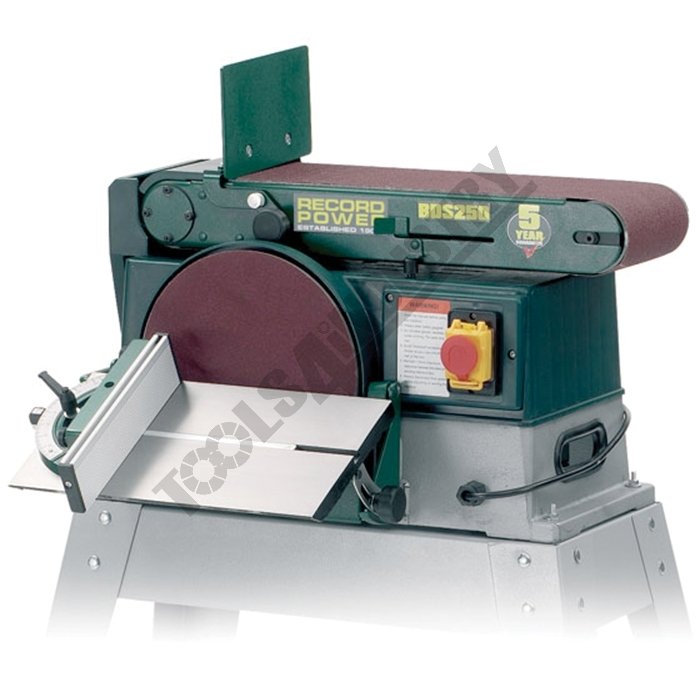

Belt & Disc Linisher Sander BDS250
Description
Record Power BDS250 Belt & Disc Linisher SanderThis heavy duty belt and disc sander has plenty of power to handle demanding sanding whilst also being capable of fine and delicate work. The solid cast iron table provides ample support and the 1 hp motor provides plenty of power to avoid stalling under pressure.

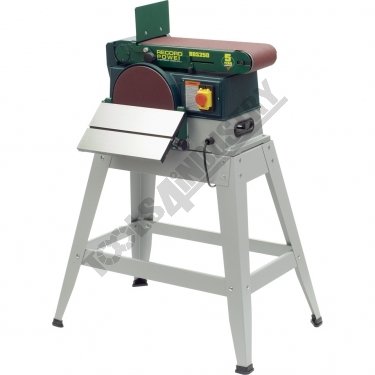

Shown with optional leg stand.
Features

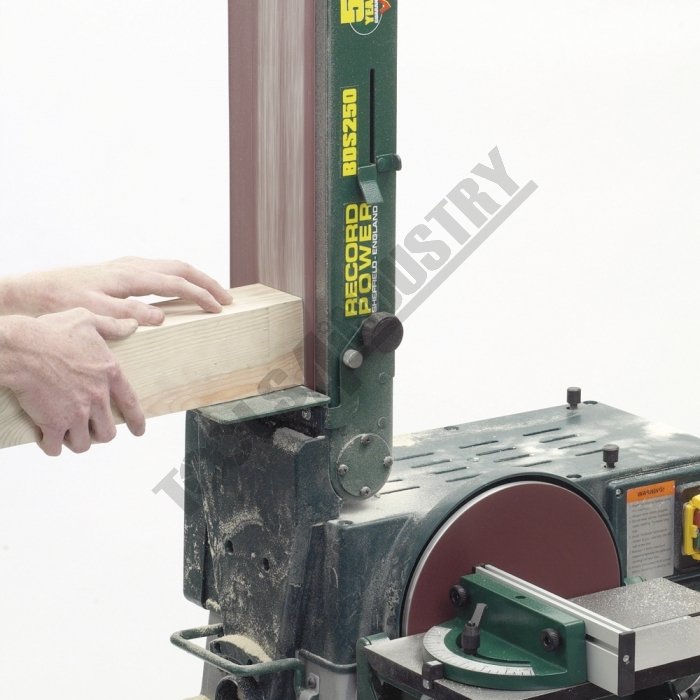

- Re-Positionable Belt - Large end grain pieces can be fitted into upright position for end grain work.

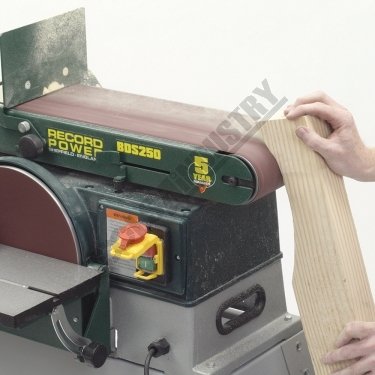

- Sanding Curves - Curved sanding is made possible using the end of the belt. Fitted with mitre slot and fence.
- Powerful 1hp Induction Motor - Can handle large close grained hardwoods - yet is also capable of fine and delicate work.
- Heavy Cast Iron Construction - Resulting in a better finish due to less vibration when sanding.

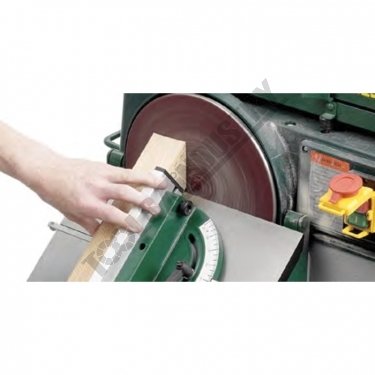

- Table - Solid cast iron with a finely ground finish and can be tilted to produce bevels.
- Table Size: 355 x 200mm
- Disc Speed: 1400rpm
- Size: L530 x W640 x H360mm
Includes
- Mitre fence
Specifications
- Compare 6 Products
- ORDER CODE
- MODEL
- Belt Sizemm
- Disc Diametermm
- Table Sizemm
- Disc Table Sizemm
- Belt Speedmpm
- Motor Speedrpm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg

- R901
- BDS250
- 152 x 1220
- Ø254
- ~
- ~
- ~
- 1400
- 0.75 / 1
- 240 / 10
- ~
- 47

- L105
- bts 900x
- 100 x 915
- Ø150
- 280 x 100
- 210 x 146
- 450
- 2850
- 0.37 / 0.5
- 240 / 10
- 530 x 380 x 320
- 25

- L107
- L-69A
- 150 x 1220
- Ø230
- 160 x 440
- 155 x 310
- ~
- 1400
- 0.75 / 1
- 240 / 10
- 750 x 550 x 1030
- 50

- L109
- L-612A
- 150 x 1220
- Ø305
- ~
- ~
- 753
- 1450
- 1.1 / 1.5
- 240 / 10
- 920 x 840 x 1020
- 62

- L108
- L-612
- 150 x 1220
- Ø305
- ~
- ~
- ~
- 2850
- 1.5 / 2
- 240 / 15
- 880 x 830 x 1080
- 72

- R900
- BDS150
- 100 x 910
- Ø152
- ~
- ~
- ~
- 2850
- 0.25 / 0.33
- 240 / 10
- ~
- 19
| ORDER CODE | BDS250 |
|---|---|
| MODEL | 152 x 1220 |
| Belt Sizemm | Ø254 |
| Disc Diametermm | ~ |
| Table Sizemm | ~ |
| Disc Table Sizemm | ~ |
| Belt Speedmpm | 1400 |
| Motor Speedrpm | 0.75 / 1 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | ~ |
| Floor Space (W x D x H)mm | 47 |
| Nett Weightkg |
