Code Q244
Model 33-244
Capacity 10-30mm/0.4-1.2"
Weight (kg) 0.84
Weight (m3) 0.002
Weight (Freight) 0.84
Dimensions (cm) 23.5 x 17 x 6
MEASUMAX
1 Year
RS232

33-244 Inside Caliper Gauge 10-30mm/0.4-1.2"

Description

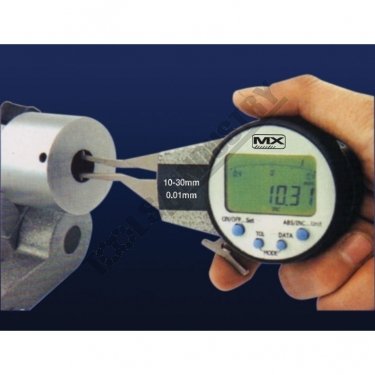

Electronic inside caliper gauges are suited to measuring bores, internal grooves and other hard to reach internal dimensions

Features

  • Digital and analogue display on LCD
  • Function include Power, Absolute & Incremental
  • Metric/Imperial conversion
  • Remembers the data of Max. and Min or hold data
  • Direct RS232 Output (Uses cable 40-401)
  • Auto power off
  • Accuracy 0.03mm
  • Tolerance set

Includes

  • Includes CR2032 battery

Specifications

ORDER CODE10 - 30mm / 0.4 - 1.2"
Range0.01mm / 0.0005"
Graduations55
Lmm2
Smm3.5
Hmm
