| Code | P188 |
|---|---|
| Model | 9023901 |
| Capacity | 250 x 20mm (100mm Vee) |
| Weight (kg) | 67 |
| Weight (m3) | 0.021 |
| Weight (Freight) | 67 |
| Dimensions (cm) | 36.5 x 30.5 x 19 |
9023901 Single-Vee Pressbrake Bending Attachment 250 x 20mm (100mm Vee)
Description

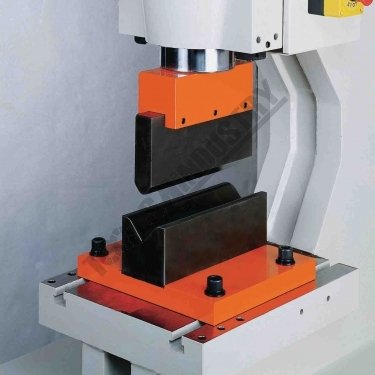

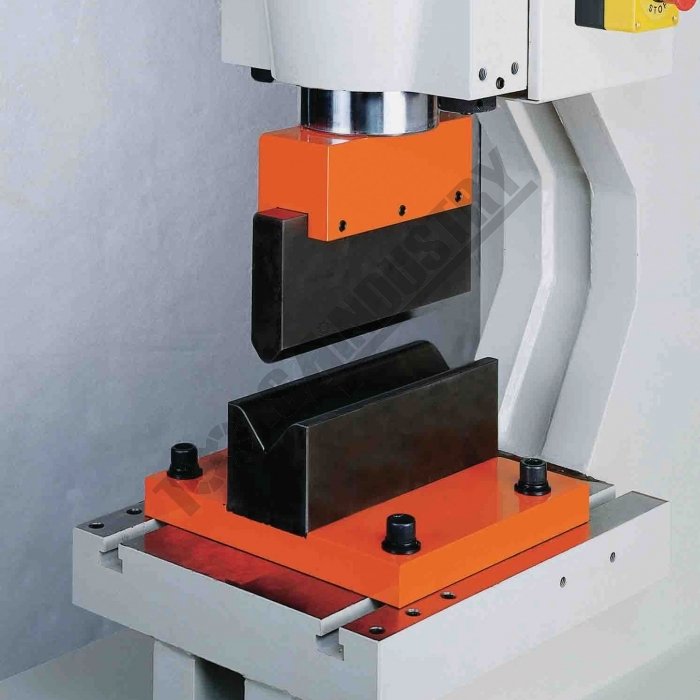

Sunrise Single-Vee pressbrake bending attachment is a great device to bend mild steel plate with a maximum capacity of 250 x 20mm and a tensile strength of 45kg/mm squaredThis attachment can only be fitted to the hole punching station as pictured
Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Type
- Bending Capacity - Mild Steelmm
- Die Block Vee Sizesmm
- Suits Punch & Shear Models
- P188
- 9023901
- Single-Vee
- 250 x 20
- 100mm
- IW-100S/SD, IW-125S/SD
IW-165SD
- P187
- 9023690
- Multi-Vee
- 700 x 5
- 10, 15, 20, 30mm
- IW-100S/SD, IW-125S/SD
IW-165SD
- P182
- 1623100
- Single-Vee
- 160 x 8
- 40mm
- IW-45K
- P183
- 1623200
- Multi-Vee
- 250 x 4
- 10, 15, 20, 30mm
- IW-45K
- P184
- 9023890
- Single-Vee
- 160 x 6 / 160 x 8
- 55mm
- IW-45MQ, IW-60H
- P186
- 9023490
- Single-Vee
- 250 x 12
- 60mm
- IW-60S/SD, IW-80S/SD
- P189
- 9023590
- Multi-Vee
- 500 x 5
- 10, 15, 20, 30mm
- IW-60S/SD, IW-80S/SD
- P188A
- 9023491
- Single-Vee
- 250 x 15
- 60mm
- IW-100S/SD, IW-125S/SD
IW-165SD
| ORDER CODE | 9023901 |
|---|---|
| MODEL | Single-Vee |
| Type | 250 x 20 |
| Bending Capacity - Mild Steelmm | 100mm |
| Die Block Vee Sizesmm | IW-100S/SD, IW-125S/SD IW-165SD |
| Suits Punch & Shear Models |
