Code	P187
Model	9023690
Capacity	700 x 5mm (10, 15, 20, 30mm Vee)
Weight (kg)	115
Weight (m³)	0.057
Weight (Freight)	115
Dimensions (cm)	79 x 33 x 22

SUNRISE

2 Years

Taiwan

Product Brochure

9023690 Multi-Vee Pressbrake Bending Attachment 700 x 5mm (10, 15, 20, 30mm Vee)

Description

Sunrise Multi-Vee pressbrake bending attachment is a great device to bend mild steel plate with a maximum capacity of 700 x 5mm and a tensile strength of 45kg/mm squared

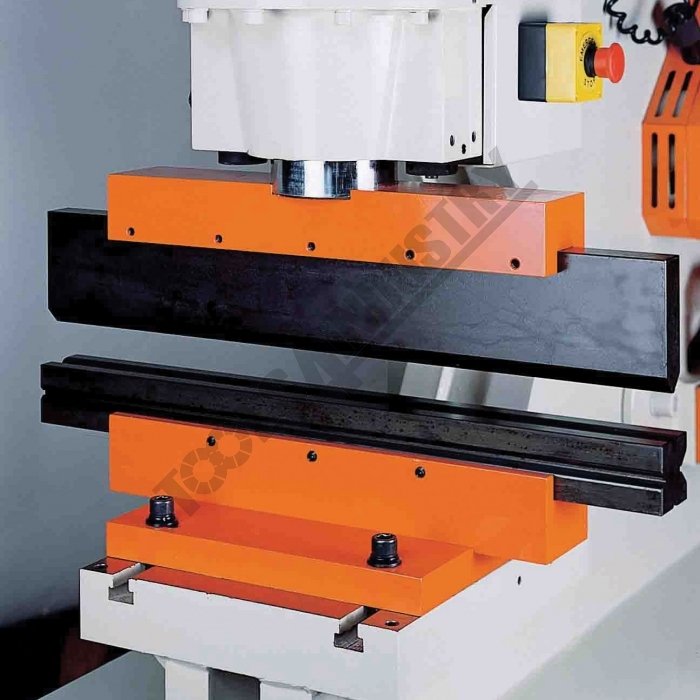

This attachment can only be fitted to the hole punching station as pictured

Specifications

Compare 8 Products
ORDER CODE
MODEL
Type
Bending Capacity - Mild Steelmm
Die Block Vee Sizesmm
Suits Punch & Shear Models

P187
9023690
Multi-Vee
700 x 5
10, 15, 20, 30mm
IW-100S/SD, IW-125S/SD
IW-165SD

P182
1623100
Single-Vee
160 x 8
40mm
IW-45K

P183
1623200
Multi-Vee
250 x 4
10, 15, 20, 30mm
IW-45K

P184
9023890
Single-Vee
160 x 6 / 160 x 8
55mm
IW-45MQ, IW-60H

P186
9023490
Single-Vee
250 x 12
60mm
IW-60S/SD, IW-80S/SD

P189
9023590
Multi-Vee
500 x 5
10, 15, 20, 30mm
IW-60S/SD, IW-80S/SD

P188A
9023491
Single-Vee
250 x 15
60mm
IW-100S/SD, IW-125S/SD
IW-165SD

P188
9023901
Single-Vee
250 x 20
100mm
IW-100S/SD, IW-125S/SD
IW-165SD

ORDER CODE	9023690
MODEL	Multi-Vee
Type	700 x 5
Bending Capacity - Mild Steelmm	10, 15, 20, 30mm
Die Block Vee Sizesmm	IW-100S/SD, IW-125S/SD IW-165SD
Suits Punch & Shear Models
