Code N006
Model N006
Capacity Zinc Plated
Weight (kg) 0.213
Weight (m3) 0.000
Weight (Freight) 0.213
Dimensions (cm) 12.5 x 9 x 2.5
HAFCO
1 Year
Taiwan

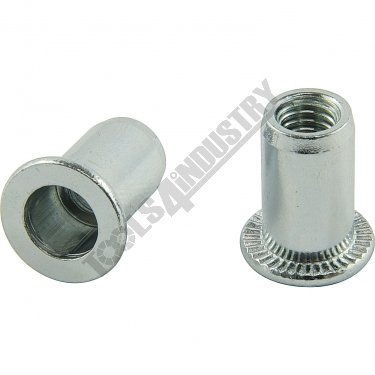

N006 Steel Nut Rivets Inserts - M6 x 1.0mm Zinc Plated

Description

Suits RNB40 Nut Riveter

Features

  • M6 x 1.0mm (50 Pack)
  • Steel Zinc Coated

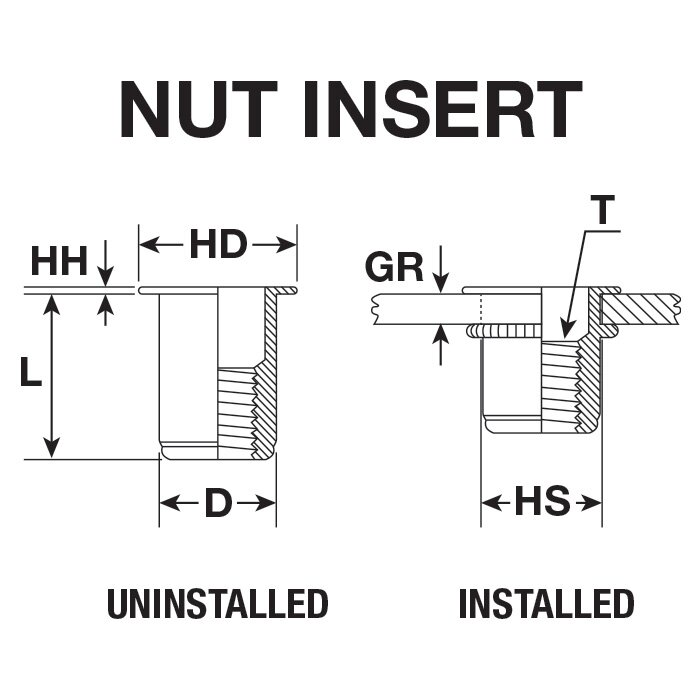

Specifications

ORDER CODE~
MODELSteel - Zinc Coated
Nut Insert MaterialType~
Rivet Nut Inserts RangeMetricM6 x 1.0

Thread Size (TS)Metric~
Blind Rivetsmm50
Quantity in Pack8.9
Diameter (D)mm13.1
Head Diameter (HD)mm1.5
Head Height (HH)mm14.4
Length (L)mm9
Hole Size (HS)mm
