Code | N001 |
---|---|
Model | RNB40 |
Capacity | Ø3.2mm, Ø4.0mm, Ø4.8mm, Ø6.4mm Blind Rivets |
Weight (kg) | 2.65 |
Weight (m3) | 0.006 |
Weight (Freight) | 2.65 |
Dimensions (cm) | 35 x 25 x 7 |

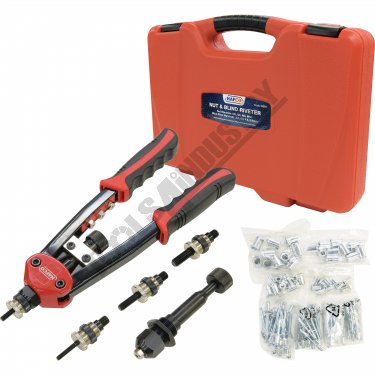

RNB40 Nut & Blind Riveter Set - 130 Piece Ø3.2mm, Ø4.0mm, Ø4.8mm, Ø6.4mm Blind Rivets
Description

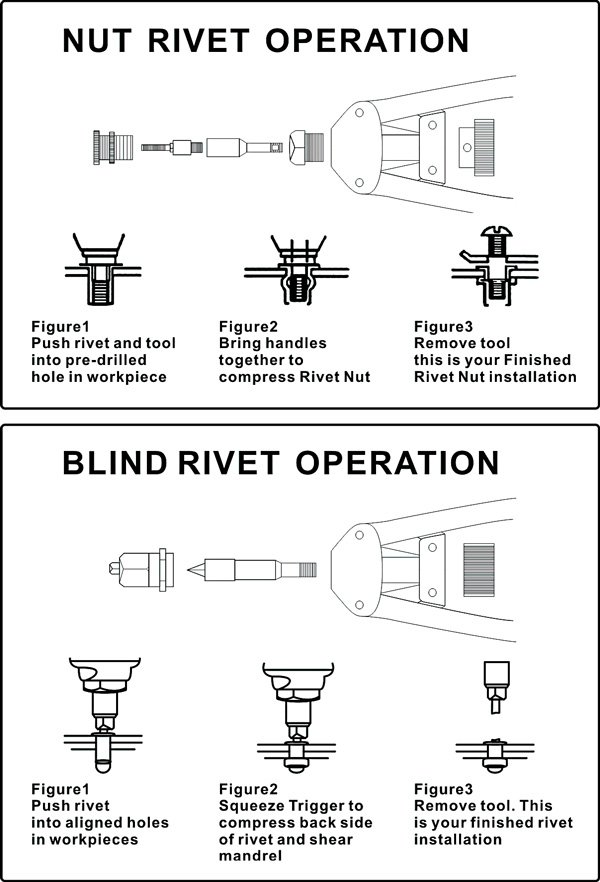

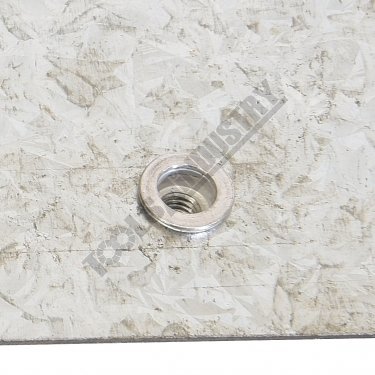

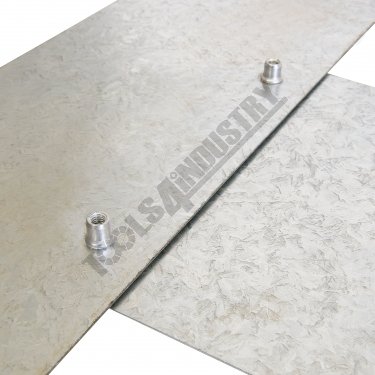

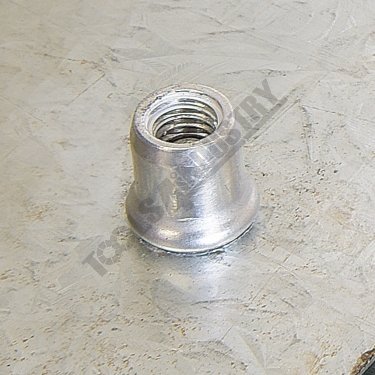

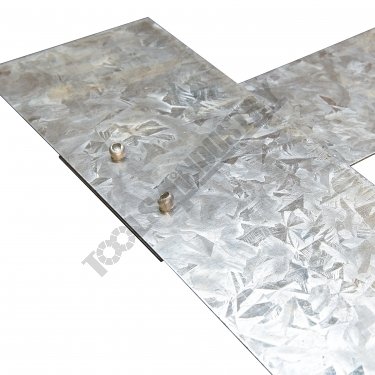

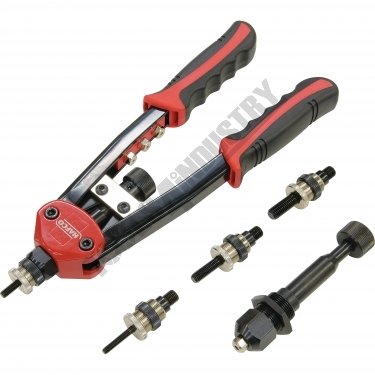

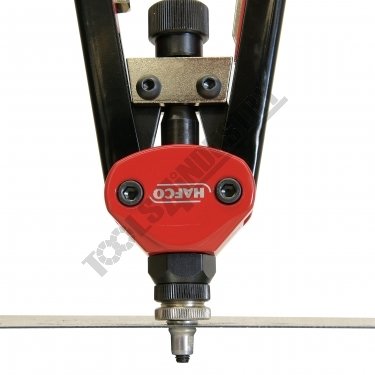

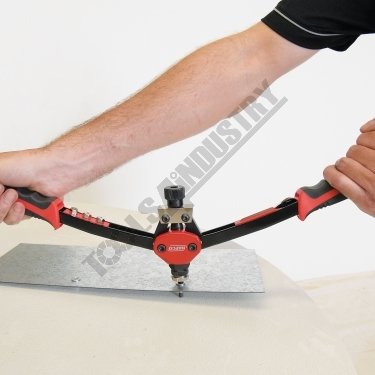

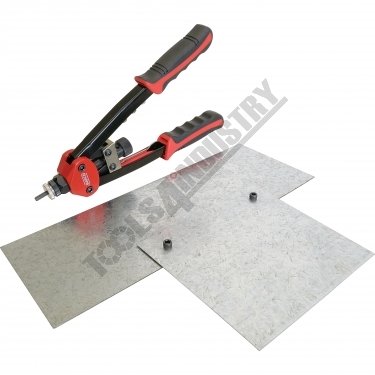

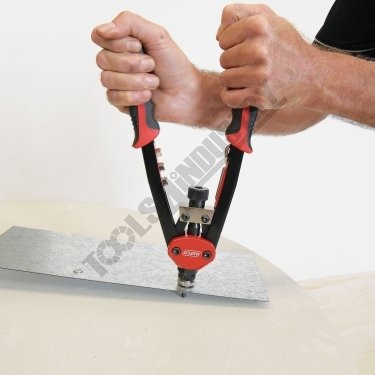

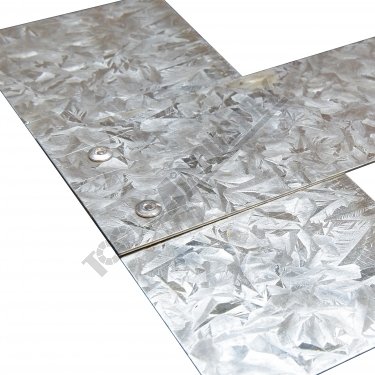

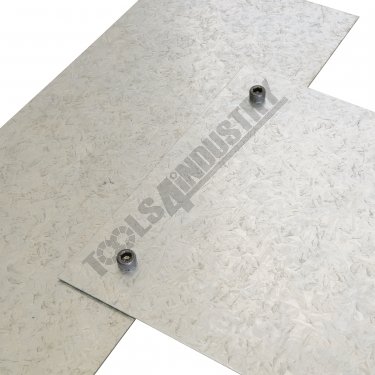

The Hafco nut & blind riveter is a dual purpose hand tool which can be used to install nut rivets on thin sheet steel & aluminium that's too thin for thread tapping allowing fasteners to be utilized. It also can be used to install standard type pop or blind rivets to securely join a wide range of thin sheet steel, stainless steel & aluminium.The 130 piece nut & blind riveter kit includes a heavy duty hand operated twin handle nut riveter manufactured from aluminium & steel with moulded handles for better grip. The set also includes 40 aluminium rivet nut inserts - (10 of each size) & 4 mandrels to suit, 80 aluminium blind rivets - (20 of each size) & 4 blind rivet mandrels to suit and all is neatly stored in a blow moulded carry case.
Features
- Heavy duty aluminium & steel hand rivet tool with moulded grips
- Suitable for aluminium, steel & stainless steel rivets & rivet nuts

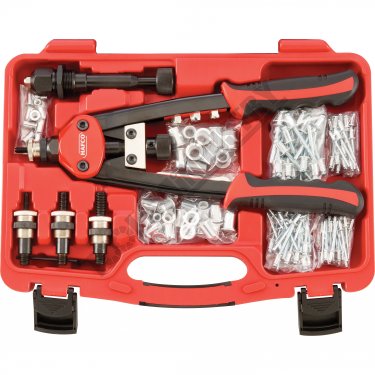

Includes

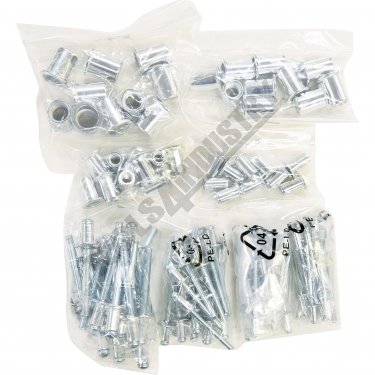

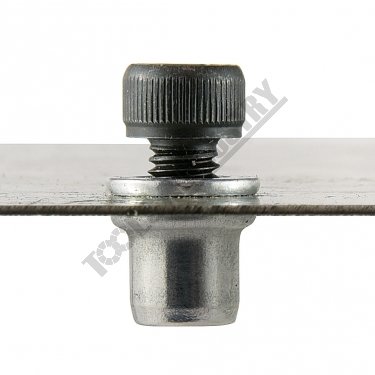

- Aluminium Rivet Nut Inserts: (10 of each size)
- (GR) - Grip Range & (TC) - Torque Capacity
- M5 x 0.8mm - (GR) - 0.25 ~ 2.5mm & (TC) - 5.9 N.m
- M6 x 1.0mm - (GR) - 0.75 ~ 3.0mm & (TC) - 9.8 N.m
- M8 x 1.25mm - (GR) - 1.00 ~ 3.0mm & (TC) - 16.6 N.m
- M10 x 1.5mm - (GR) - 1.00 ~ 4.0mm & (TC) - 34.3 N.m

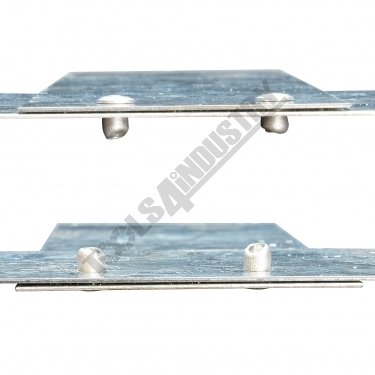

- Aluminium blind rivets: (20 of each size)
- Ø3.2mm, Ø4.0mm, Ø4.8mm, Ø6.4mm

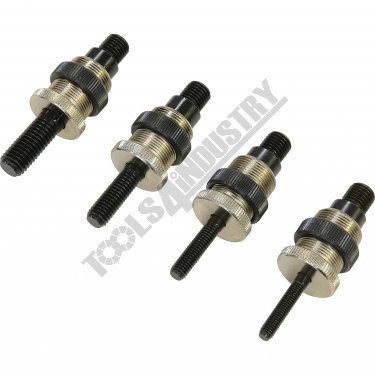

- 4 x rivet nut mandrels
- 4 x blind rivet mandrels
- Mandrel spanner

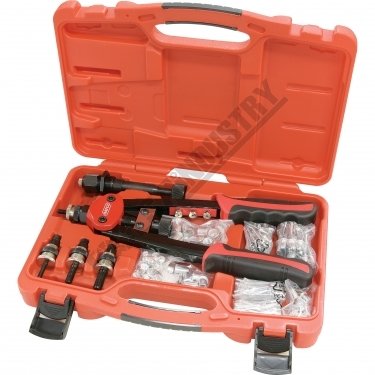

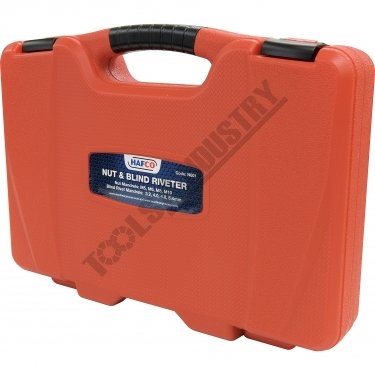

- Blow mould storage carry case
Optional Accessories
- Steel Rivet Nut Inserts, (GR) - Grip Range & (TC) - Torque Capacity
- M5 x 0.8mm - (GR) - 0.25 ~ 2.5mm & (TC) - 7.8 N.m
- M6 x 1.0mm - (GR) - 0.75 ~ 3.0mm & (TC) - 12.7 N.m
- M8 x 1.25mm - (GR) - 1.00 ~ 3.0mm & (TC) - 19.6 N.m
- M10 x 1.5mm - (GR) - 1.00 ~ 4.0mm & (TC) - 39.2 N.m

Videos
Specifications
- Compare 10 Products
- ORDER CODE
- MODEL
- Rivet Nut Inserts Range
- Nut Insert MaterialType
- Thread Size (TS)mm
- Quantity in Pack
- Diameter (D)mm
- Head Diameter (HD)mm
- Head Height (HH)mm
- Length (L)mm
- Hole Size (HS)mm
- N001
- RNB40
- M5, M6, M8, M10
- Aluminium
- M5 x 0.8, M6 x 1.0
M8 x 1.25, M10 x 1.5 - ~
- ~
- ~
- ~
- ~
- ~
- N005
- ~
- ~
- Steel - Zinc Coated
- M5 x 0.8
- 50
- 6.9
- 9.95
- 1.0
- 11.8
- 7
- N006
- ~
- ~
- Steel - Zinc Coated
- M6 x 1.0
- 50
- 8.9
- 13.1
- 1.5
- 14.4
- 9
- N008
- ~
- ~
- Steel - Zinc Coated
- M8 x 1.25
- 50
- 10.9
- 15
- 1.5
- 16.4
- 11
- N010
- ~
- ~
- Steel - Zinc Coated
- M10 x 1.5
- 50
- 12.9
- 17.15
- 1.5
- 18.5
- 13
- N015
- ~
- ~
- Aluminium
- M5 x 0.8
- 50
- 6.9
- 10
- 1.0
- 11.6
- 7
- N016
- ~
- ~
- Aluminium
- M6 x 1.0
- 50
- 8.9
- 12.7
- 1.5
- 13.7
- 9
- N018
- ~
- ~
- Aluminium
- M8 x 1.25
- 50
- 10.9
- 14.4
- 1.4
- 15
- 11
- N002
- ~
- ~
- ~
- M5 x 0.8, M6 x 1.0
M8 x 1.25, M10 x 1.5 - 4
- ~
- ~
- ~
- ~
- ~
- N020
- ~
- ~
- Aluminium
- M10 x 1.5
- 50
- 12.85
- 16.6
- 1.5
- 15.5
- 13
ORDER CODE | RNB40 |
---|---|
MODEL | M5, M6, M8, M10 |
Rivet Nut Inserts Range | Aluminium |
Nut Insert MaterialType | M5 x 0.8, M6 x 1.0 M8 x 1.25, M10 x 1.5 |
Thread Size (TS)mm | ~ |
Quantity in Pack | ~ |
Diameter (D)mm | ~ |
Head Diameter (HD)mm | ~ |
Head Height (HH)mm | ~ |
Length (L)mm | ~ |
Hole Size (HS)mm |
