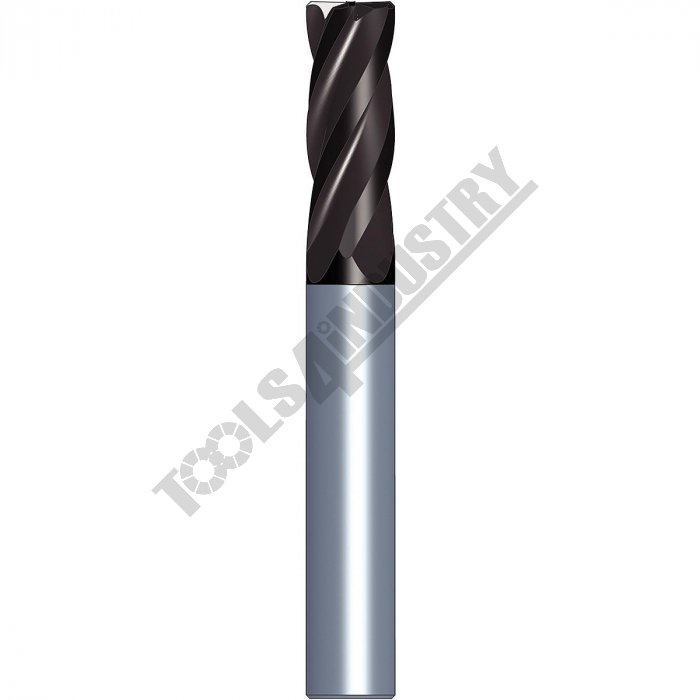

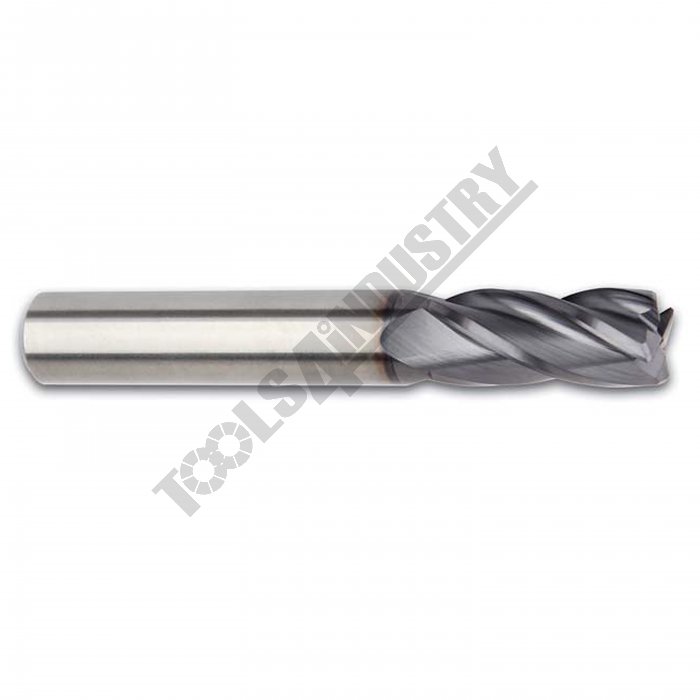

8mm Solid Carbide End Mill GOmill™ General Purpose Plain Shank

Description

The GOmill GP series offers plunging, slotting, and profi ling with long tool
life in a wide range of workpiece materials. These end mills are designed to
provide high Metal Removal Rates (MRR) and to achieve good surface quality
at an excellent cost-benefi t ratio. A wide range of diameters and lengths are
available with chamfered edge and ball nose as stocked standard.

Uses and Applications
Ramping: Blank
Side Milling/Shoulder Milling: Square End
Corner Style: Corner Chamfer
Helix Angle: 30°
Slotting: Square End

Features

• Solid carbide end mill with stepped parallel shank according to DIN 6527.
• Solid carbide end mill with excellent cost-benefit ratio.
• Eccentric relief increases cutting edge stability for long tool life and high surface quality.
• Eccentric relief eases regrinding and reduces reconditioning cost.
• Center cutting for plunging and ramping operations.
