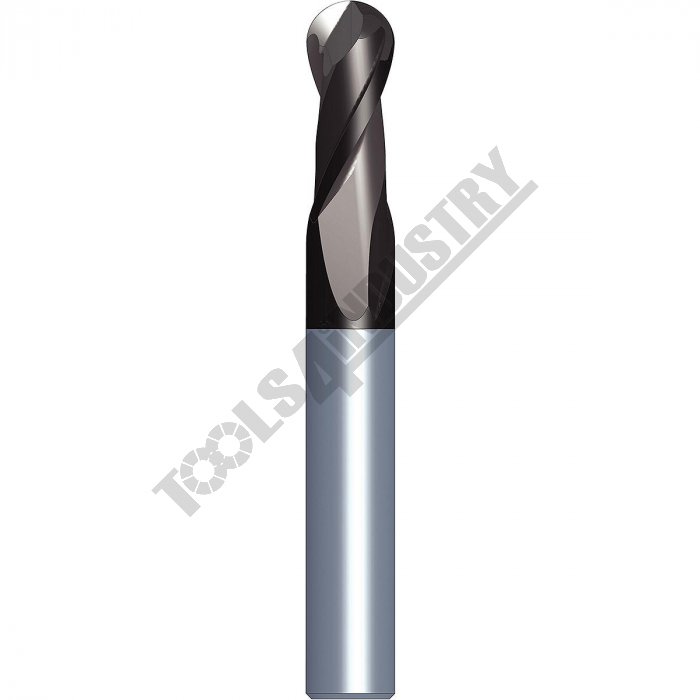

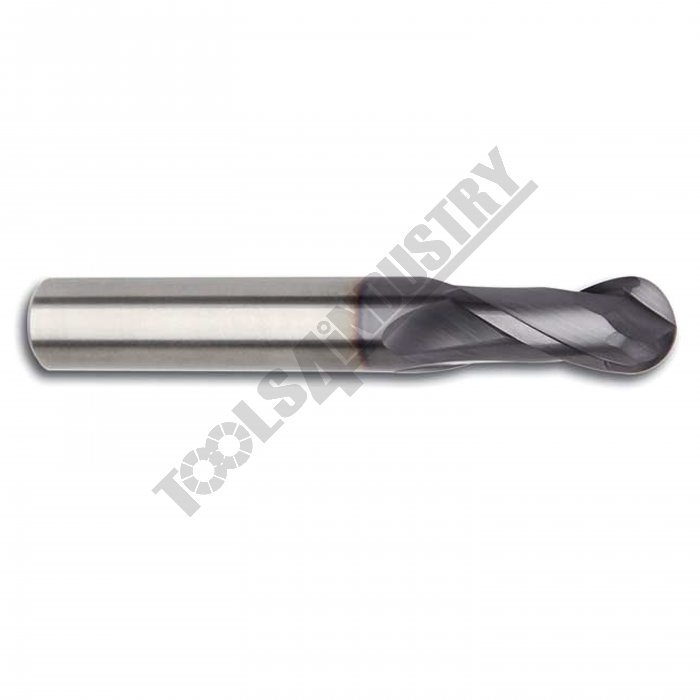

8mm Solid Carbide Ball Nose GOmill™ General Purpose Plain Shank

Description

The GOmill™ GP series offers plunging, slotting, and profiling with long tool life
on a wide range of workpiece materials. They are designed to provide high
Metal Removal Rates (MRR) and achieve good surface quality at an excellent
cost-benefi t ratio. A wide range of diameters and lengths are available with
chamfered edge and ball nose as stocked standard.

Uses and Applications
Slotting: Ball Nose
Side Milling/Shoulder Milling: Ball Nose
3D Profiling
Corner Style: Ball Nose
Helix Angle: 30°

Features

• Solid carbide end mill with continuous parallel shank according to DIN 6528.
• Solid carbide end mill with excellent cost-benefit ratio.
• Eccentric relief increases cutting edge stability for long tool life and high surface quality.
• Eccentric relief eases regrinding and reduces reconditioning cost.
• Center cutting for plunging and ramping operations.
