Code	L0511
Model	ERO312M03U00GUP
Capacity	3.13mm Width Grooving Insert Grade KCU25B General Purpose
Weight (kg)	0.02
Weight (m³)	0.000
Weight (Freight)	0.02
Dimensions (cm)	9.8 x 4 x 1.1

Product Brochure

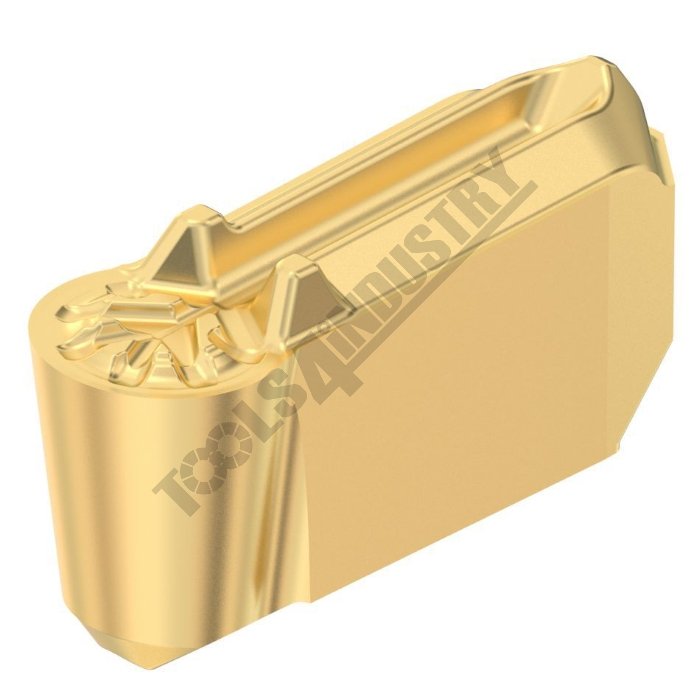

KENNAMETAL Carbide Inserts - Grooving ERO312M03U00GUP 3.13mm Width Grooving Insert Grade KCU25B General Purpose

Description

KCU25B upgrades Kennametal’s existing KCU25 with a newly engineered KENGold™ PVD, multilayer coating that makes machining from one material to another easy while also achieving consistency in cutting. The nano-composite coating has an enhanced coating adhesion that delivers better flank and chipping resistance.

Features

KCU25B - Coated grade: Suitable for heavy machining, particular suitable when turning Austenitic stainless steels. Reduces build up on the cutting edge
3.13mm Width
1.56mm Radius
Made in Germany
10 Inserts Per Pack

Specifications

Compare 11 Products
ORDER CODE
ISO Catalog ID
Grade
Insert HandType
Insert Sizemm
[W] Cutting Widthmm
[RC] Corner Radius Centermm
[LI] Insert Lengthmm
[T] Cuttg Depthmm
[RR] Corner Radiusmm
Clearance Angledeg

L0511
ERO312M03U00GUP
KCU25B
N
~
3.13
1.58
9.6
1.56
~
7.6°

L0512
A2022N00CR02
KCU25B
N
2
2.2
~
~
~
0.2
7.6°

L0513
A2030N00CR02
KCU25B
N
3
3
~
~
~
0.2
7.6°

L0512
A2022N00CR02
KCU25
~
~
2.2
~
~
~
~
7.6°

L0512
A2022N00CR02
KCU25
~
~
2.2
~
~
~
~
7.6°

L0512
A2022N00CR02
KCU25
~
~
2.2
~
~
~
~
7.6°

L0512
A2022N00CR02
KCU25
~
~
2.2
~
~
~
~
7.6°

L0512
A2022N00CR02
KCU25
~
~
2.2
~
~
~
~
7.6°

L0117
~
~
~
~
2
~
~
~
~

L0118
~
~
~
~
3
~
~
~
~
~

L0510
ERO212M02U00GUP
KCU25B
N
~
2.12
1.05
8.97
1.65
~
7.6°

ORDER CODE	ERO312M03U00GUP
ISO Catalog ID	KCU25B
Grade	N
Insert HandType	~
Insert Sizemm	3.13
[W] Cutting Widthmm	1.58
[RC] Corner Radius Centermm	9.6
[LI] Insert Lengthmm	1.56
[T] Cuttg Depthmm	~
[RR] Corner Radiusmm	7.6°
Clearance Angledeg
