Code G162
Model BG-10
Capacity Ø250mm Fine & Coarse Wheels
Weight (kg) 49
Weight (m3) 0.101
Weight (Freight) 49
Dimensions (cm) 64 x 36 x 44
HAFCO-METALMASTER
240V / 10A
1 Year
Taiwan

BG-10 Industrial Bench Grinder Ø250mm Fine & Coarse Wheels

Description

The Hafco Metalmaster BG-10 Bench Grinder, manufactured in Taiwan, is a robust and reliable machine designed for industrial use. With a heavy cast iron frame, a powerful 1.3HP motor, and 250mm grinding wheels, this bench grinder is built to handle the most demanding tasks. Additionally, it features heavy-duty toolrests which are supported on both sides of the wheels, providing excellent support for the workpiece.

Features

  • High quality robust construction, manufactured in Taiwan
  • 1.3HP high powered motor rated at it’s true output power
  • Fully balanced motor providing smooth operation

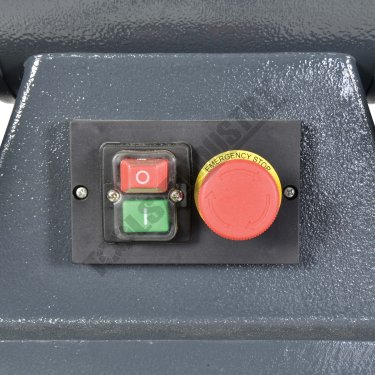

  • Non Voltage Return (NVR) safety switch, which stops machine from re-starting during workshop power failures
  • Emergency stop switch
  • Capacitor start and run provides instant startup and running power
  • Overload protection

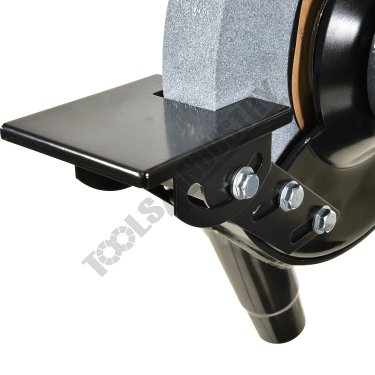

  • Heavy duty tool rests with dust chutes

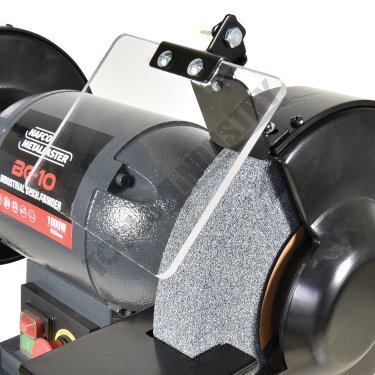

  • Adjustable spark protection eye shields
  • 1” x 8TPI spindle

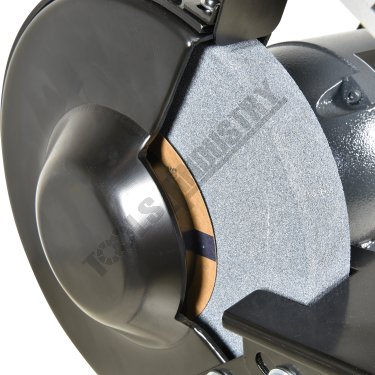

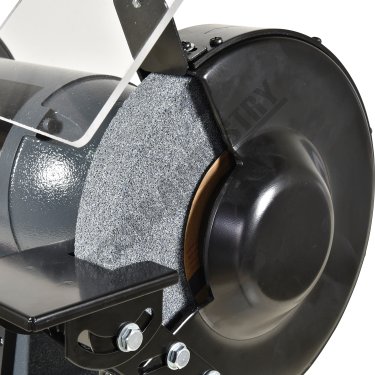

  • Ø250 x 38 x 25mm wheels (36-grit & 60-grit)

Specifications

ORDER CODEBG-10
MODELBench
Grinder TypeBench / PeHafco MetalMaster
Brand250
Grinding Wheel Diametermm38
Grinding Wheel WidthmmFine & Coarse
Wheel GradeTypeOptional
Linishing Attachmentmm~
Disc Sizemm1" x 8TPI
Spindle Shaft Thread Sizemm / Inch~
Includes1 / 1.3
Motor PowerkW / hp240 / 10
Voltage / AmperageV / amp~
Motor Speedrpm~
Machine Dimensions (L x W x H)mm49
Nett Weightkg
