Code G161
Model BG-8
Capacity Ø200mm Fine & Coarse Wheels
Weight (kg) 24
Weight (m3) 0.052
Weight (Freight) 24
Dimensions (cm) 52.5 x 33.5 x 29.5
HAFCO-METALMASTER
240V / 10A
1 Year
Taiwan

BG-8 Industrial Bench Grinder Ø200mm Fine & Coarse Wheels

Description

The Hafco Metalmaster BG-8 Bench Grinder, manufactured in Taiwan, is a robust and reliable machine designed for industrial use. With a heavy cast iron frame, a powerful 1HP motor, and 200mm grinding wheels, this bench grinder is built to handle the most demanding tasks. Additionally, it features heavy-duty toolrests which are supported on both sides of the wheels, providing excellent support for the workpiece.

Features

  • High quality robust construction, manufactured in Taiwan
  • 1HP high powered motor rated at it’s true output power
  • Fully balanced motor providing smooth operation

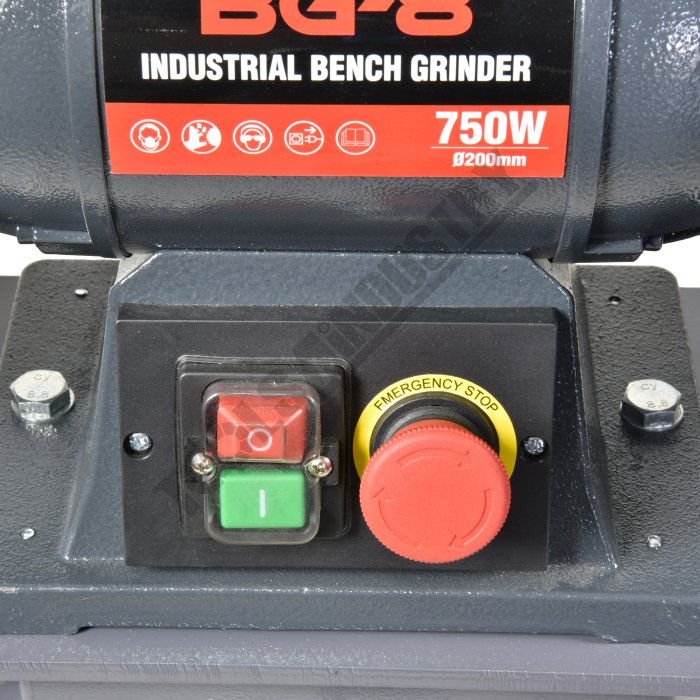

  • Non Voltage Return (NVR) safety switch, which stops machine from re-starting during workshop power failures
  • Emergency stop switch
  • Capacitor start and run provides instant startup and running power

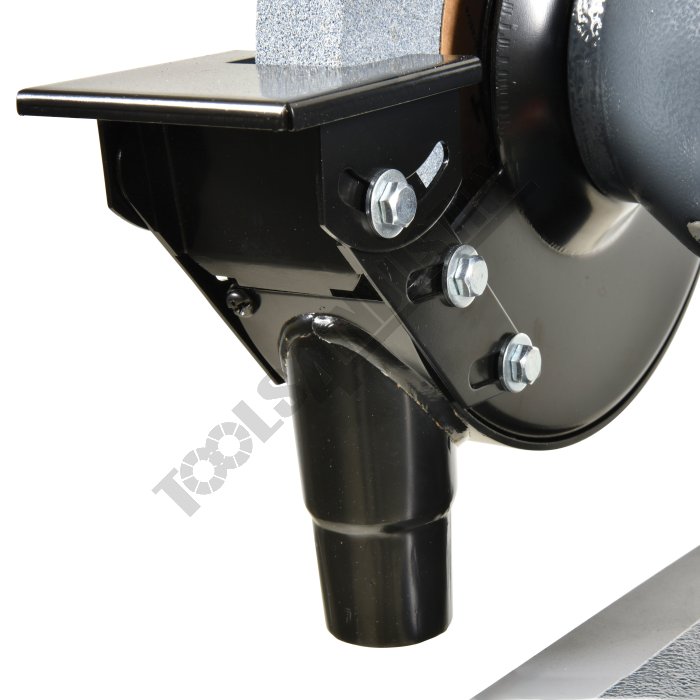

  • Heavy duty tool rests with dust chutes
  • Adjustable spark protection eye shields
  • 5/8” x 11TPI spindle

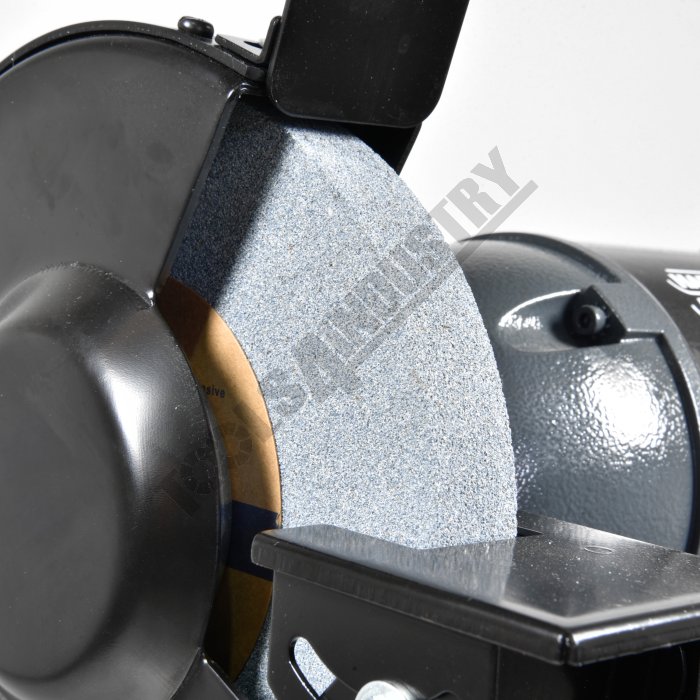

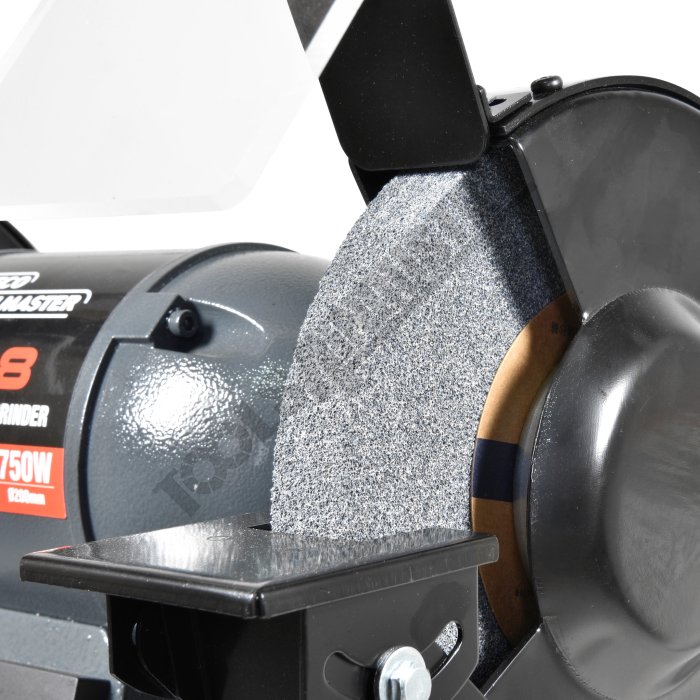

  • Ø200 x 25 x 20mm wheels (36-grit & 60-grit)

Specifications

ORDER CODEBG-8
MODELBench
Grinder TypeBench / PeHafco MetalMaster
Brand200
Grinding Wheel Diametermm25
Grinding Wheel WidthmmFine & Coarse
Wheel GradeTypeOptional
Linishing Attachmentmm~
Disc Sizemm5/8"
Spindle Shaft Thread Sizemm / Inch~
Includes0.75 / 1
Motor PowerkW / hp240 / 10
Voltage / AmperageV / amp~
Motor Speedrpm~
Machine Dimensions (L x W x H)mm24
Nett Weightkg
