| Code | D1252 |
|---|---|
| Model | D109SM3 |
| Capacity | Ø1.0 - Ø13.0mm |
| Weight (kg) | 1.7 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 1.7 |
| Dimensions (cm) | 20 x 11.2 x 6 |
| Only Available From | Sydney |

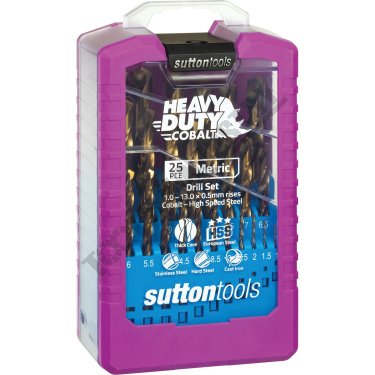

Metric 135° Heavy Duty HHS Cobalt Jobber Drill Set - 25 Piece D109SM3 Ø1.0 - Ø13.0mm
Description
Sutton Tools Heavy Duty Cobalt Jobber Drills are industrial quality for drilling materials that have high hardness and tensile strength such as cast iron, bronze, hard steel & stainless steel. These drill bits feature a thick core for increased rigidity in hard materials.Features

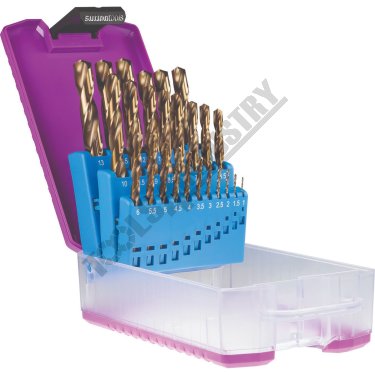

- 25 piece set
- 1-13mm in 0.5mm increments

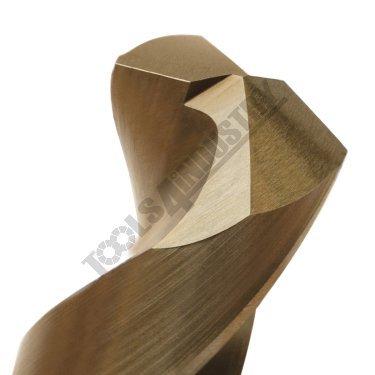

- 135° Split Point (drills > 2mm & 3/32) - Enables accurate positioning and less drilling pressure
- Thick Core - For increased rigidity in hard materials
- Precision Engineered Parallel Shank - For accurate hole size
- Made from HSS Cobalt - The 5% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures
- Colour Tempered Surface Finish - Enables identification of cobalt tool material
Specifications
- Compare 6 Products
- ORDER CODE
- FlutesType
- Number of PiecesNo.
- Drill Size RangeInch / mm
- Metric / Imperial~
- Drill Size StepsInch / mm
- Point AngleDegrees
- StandardDIN
- Nett Weightkg

- D1252
- Precision Ground
- 25
- 1 - 13mm
- Metric
- 0.5mm
- 135º
- ~
- 1.7

- D1272
- Precision Ground
- 25
- 1 - 13mm
- Metric
- 0.5mm
- 135º
- DIN 338
- 1.7

- D1282
- Precision Ground
- 29
- 1/16 - 1/2"
- Imperial
- 1/64"
- 135º
- DIN 338
- 1.7

- D1285
- Precision Ground
- 51
- 1 - 6mm
- Metric
- 0.1mm
- 135º
- DIN 338
- 1.7

- D126
- Precision Ground
- 170
- 1 - 10mm
- Metric
- 0.5mm
- 135º
- DIN 338
- 4.84

- D104
- ~
- 4
- 6.0, 8.0, 10.0, 12.0
- Metric
- ~
- 90°
- DIN 1897
- ~
| ORDER CODE | Precision Ground |
|---|---|
| FlutesType | 25 |
| Number of PiecesNo. | 1 - 13mm |
| Drill Size RangeInch / mm | Metric |
| Metric / Imperial~ | 0.5mm |
| Drill Size StepsInch / mm | 135º |
| Point AngleDegrees | ~ |
| StandardDIN | 1.7 |
| Nett Weightkg |
