Code	C274
Model	K72-500/D1-11
Capacity	Ø500mm
Weight (kg)	110
Weight (m³)	0.072
Weight (Freight)	110
Dimensions (cm)	60 x 57 x 21

TOOLMASTER

1 Year Warranty

Product Brochure How To Determine a Camlock Size [40 KB]

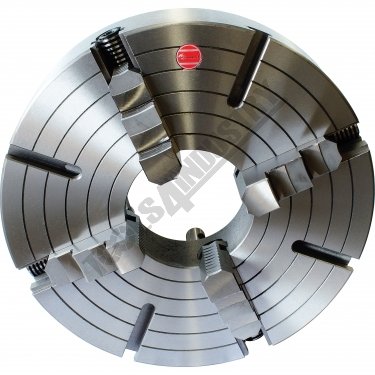

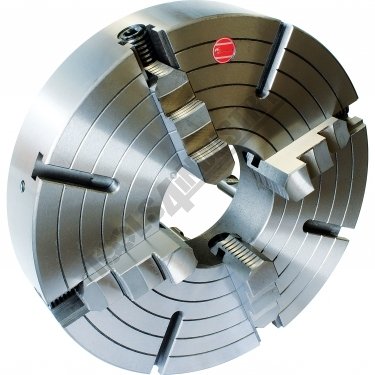

4 Jaw Independent Lathe Chuck K72-500/D1-11 Ø500mm

Description

Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened.

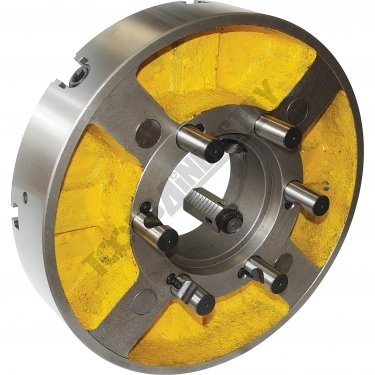

Supplied with camlock pins, 1 set of jaws and wrench.

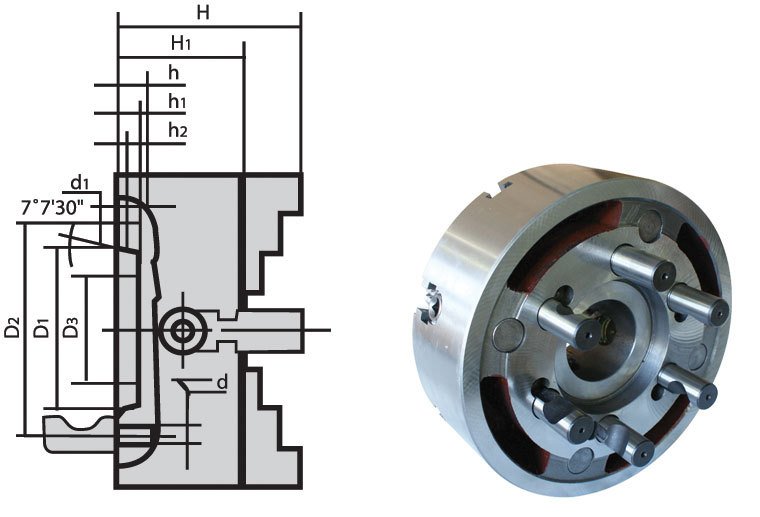

Specifications

Compare 8 Products
ORDER CODE
Chuck Sizemm
Camlock
Speedrpm
D1mm
D2mm
D3mm
H1mm
hmm
Nett Weightkg

C274
Ø500
D1-11
800
196.8
235
160
106
16
124

C275
Ø630
D1-11
600
196.8
235
180
118
16
216

C252
Ø200
D1-4
2000
82.5
104.8
56
75
12
15

C253
Ø200
D1-5
2000
82.5
104.8
56
75
12
17.5

C256
Ø250
D1-6
1800
106.38
133.4
75
80
13
23

C256A
Ø320
D1-8
1200
139.7
171.4
95
90
14
40.5

C273
Ø400
D1-8
1000
139.7
171.4
125
95
14
78

C271
Ø400
D1-11
1000
196.8
235
125
95
16
72

ORDER CODE	Ø500
Chuck Sizemm	D1-11
Camlock	800
Speedrpm	196.8
D1mm	235
D2mm	160
D3mm	106
H1mm	16
hmm	124
