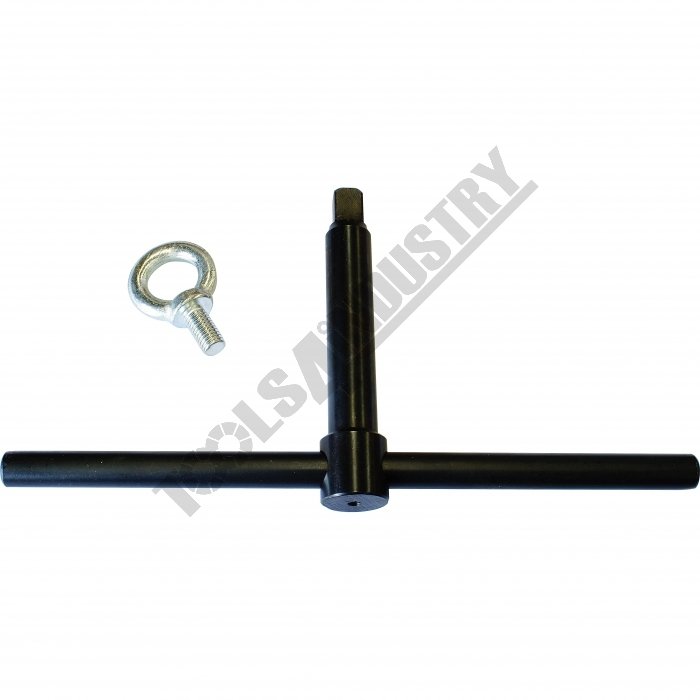

Included Accessories

Included Accessories

Code	C271
Model	K72-400/D1-11
Capacity	Ø400mm
Weight (kg)	62
Weight (m³)	0.059
Weight (Freight)	62
Dimensions (cm)	50 x 47 x 25

TOOLMASTER

1 Year Warranty

Product Brochure How To Determine a Camlock Size [40 KB] LATHE CHUCK - SAFETY NOTES [36 KB]

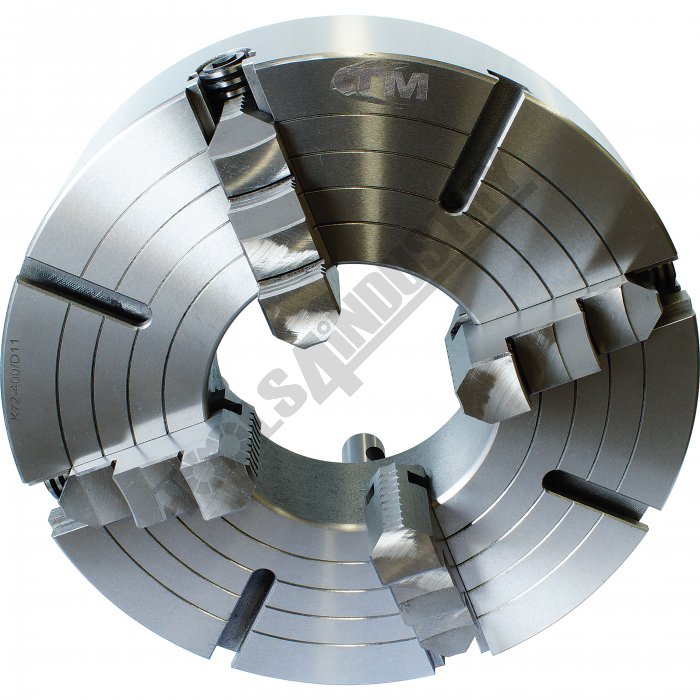

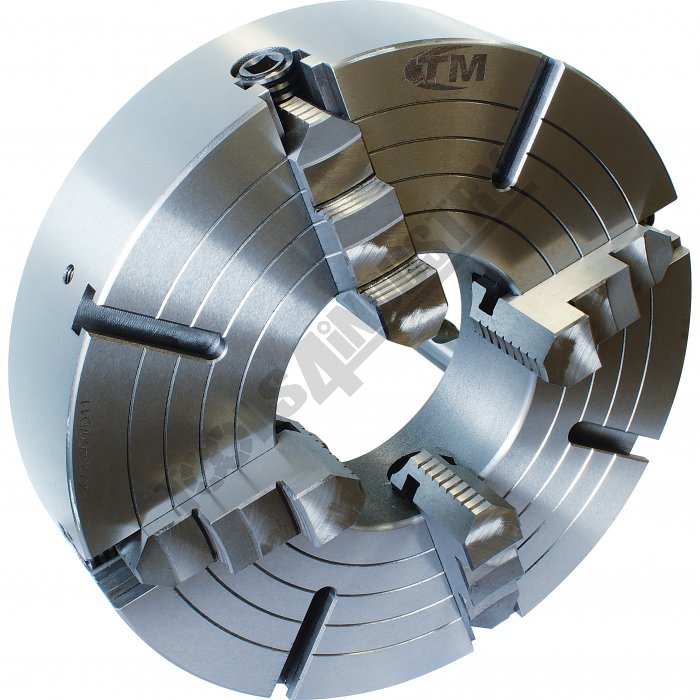

4 Jaw Independent Lathe Chuck K72-400/D1-11 Ø400mm

Description

Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened.

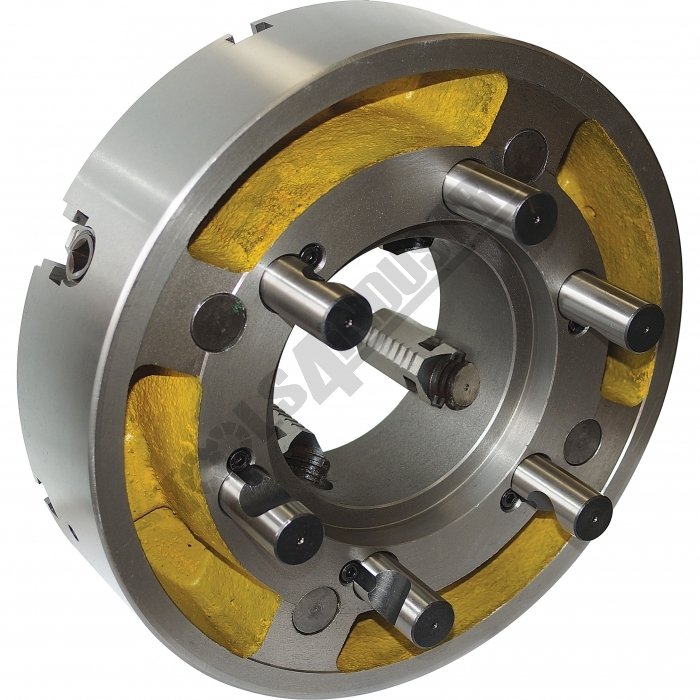

Supplied with camlock pins, 1 set of jaws and wrench.

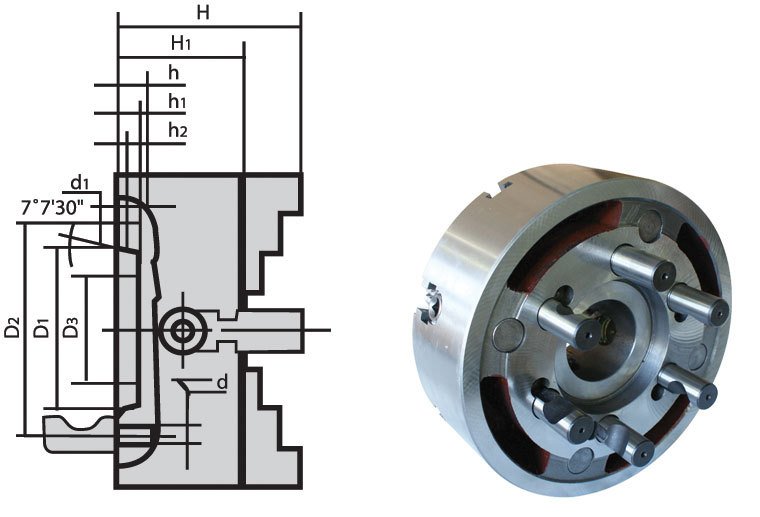

Specifications

Compare 8 Products
ORDER CODE
Chuck Sizemm
Camlock
Speedrpm
D1mm
D2mm
D3mm
H1mm
hmm
Nett Weightkg

C271
Ø400
D1-11
1000
196.8
235
125
95
16
72

C274
Ø500
D1-11
800
196.8
235
160
106
16
124

C275
Ø630
D1-11
600
196.8
235
180
118
16
216

C252
Ø200
D1-4
2000
82.5
104.8
56
75
12
15

C253
Ø200
D1-5
2000
82.5
104.8
56
75
12
17.5

C256
Ø250
D1-6
1800
106.38
133.4
75
80
13
23

C256A
Ø320
D1-8
1200
139.7
171.4
95
90
14
40.5

C273
Ø400
D1-8
1000
139.7
171.4
125
95
14
78

ORDER CODE	Ø400
Chuck Sizemm	D1-11
Camlock	1000
Speedrpm	196.8
D1mm	235
D2mm	125
D3mm	95
H1mm	16
hmm	72
Nett Weightkg
