| Code | C195 |
|---|---|
| Model | FLA-2T |
| Capacity | WLL 2 Tonne Capacity |
| Weight (kg) | 28.5 |
| Weight (m3) | 0.045 |
| Weight (Freight) | 28.5 |
| Dimensions (cm) | 72 x 25 x 25 |

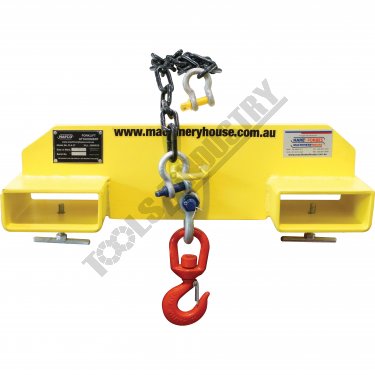

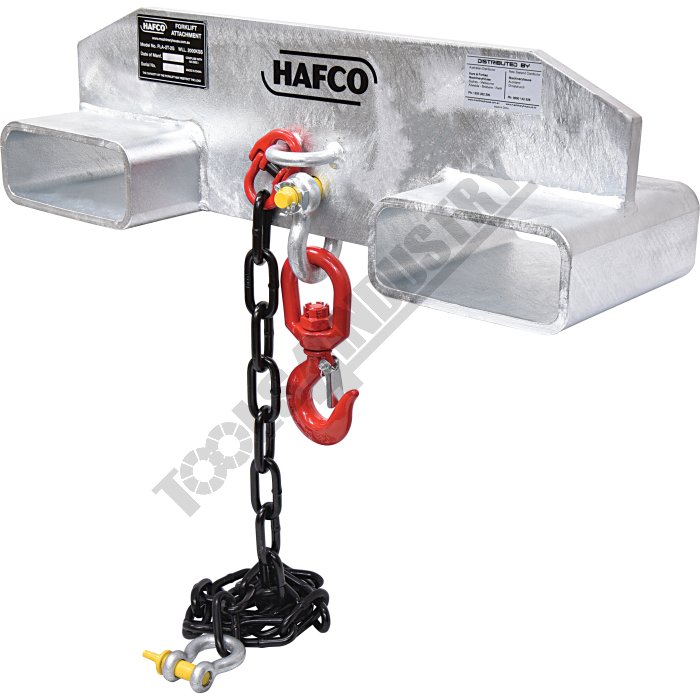

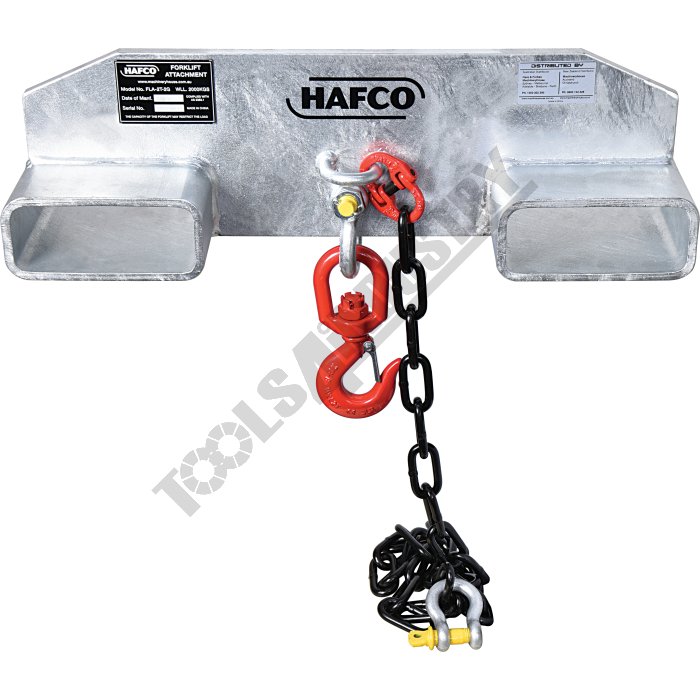

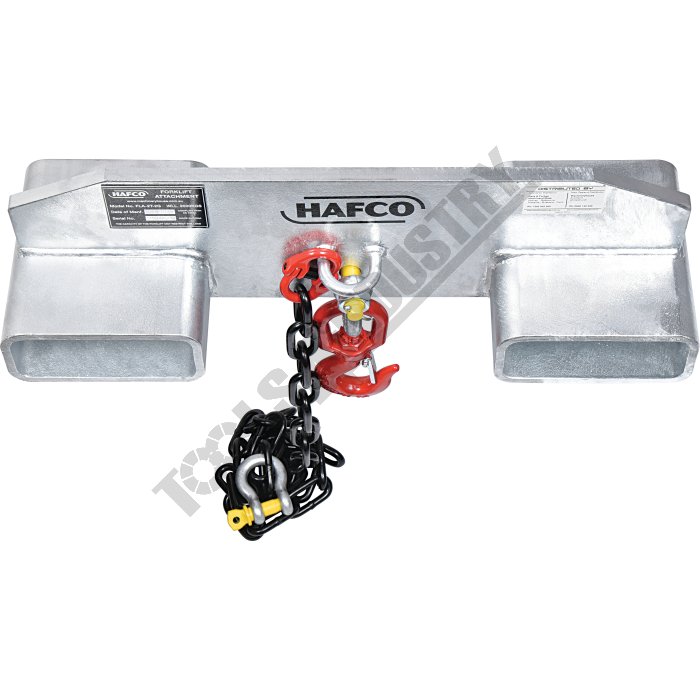

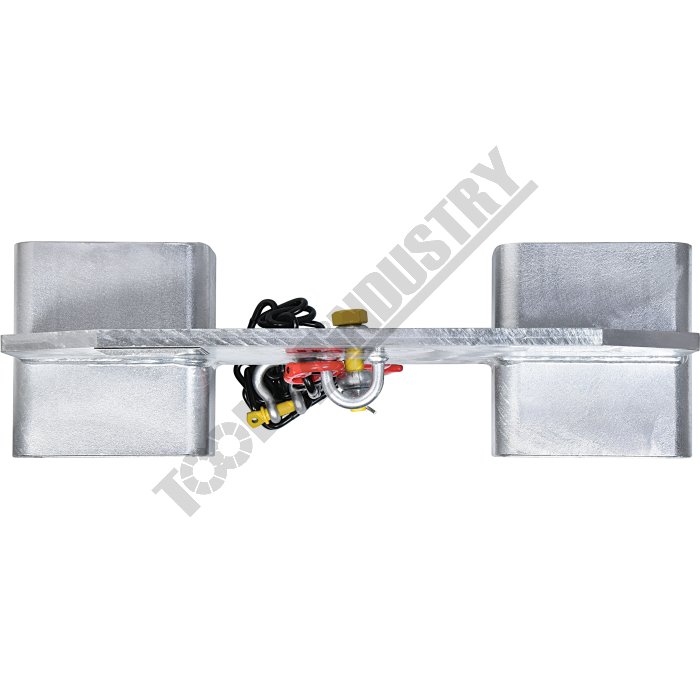

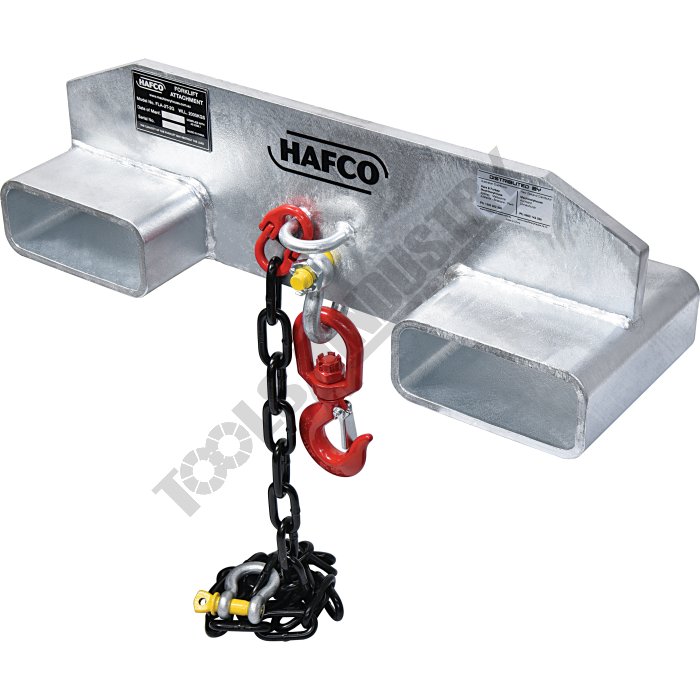

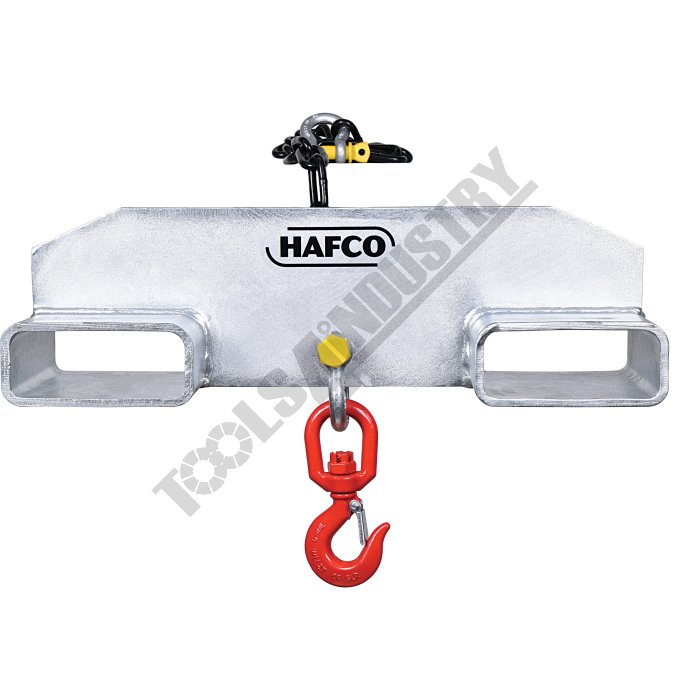

FLA-2T Forklift Jib Attachment WLL 2 Tonne Capacity
Description

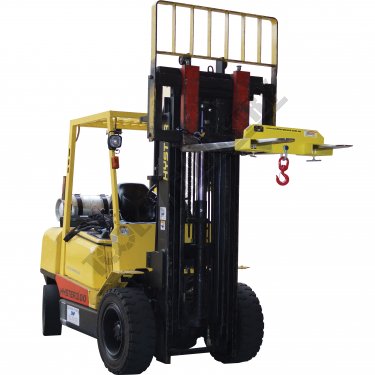

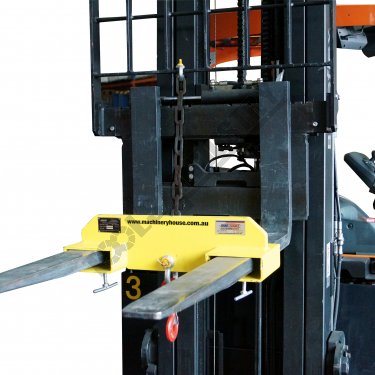

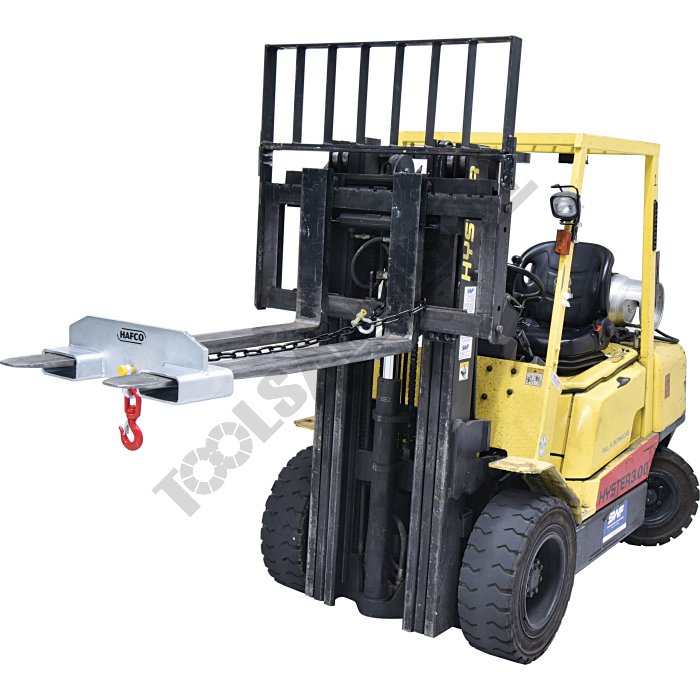

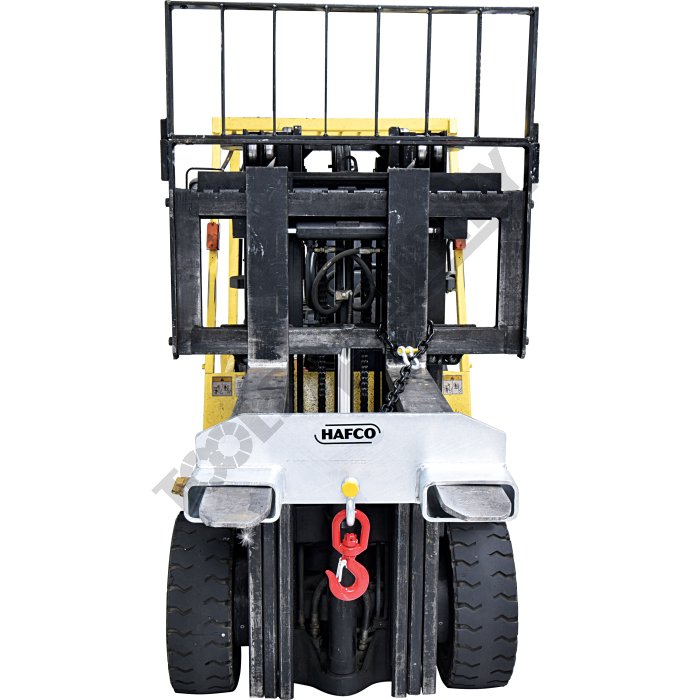

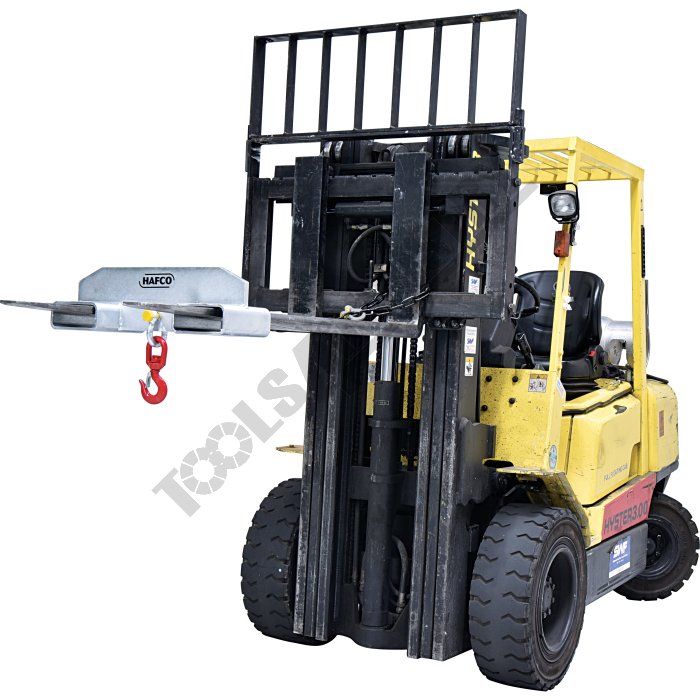

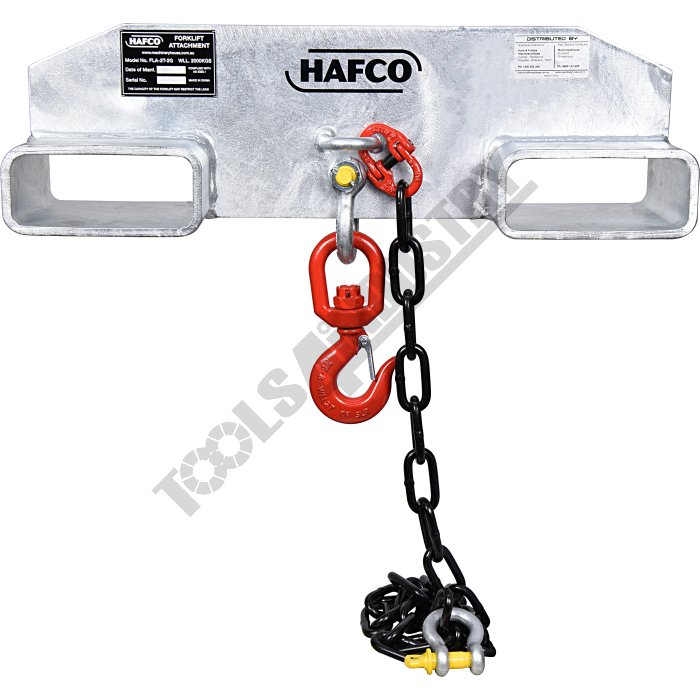

FLA-2T Forklift attachment effectively transforms a forklift into a mobile crane, handling awkward loads which cannot be safely handled by a conventional forklift with great efficiency. It has excellent strength: weight ratios. The Forklift attachment is supplied complete with safety hook, shackle and safety chain.The FLA-2T capacity is rated at WLL 2 Tonne (2000kg) when position & secured on the tine's and placed 600mm from the mast & safety chain also secured.
*Please note forklift capacity must be rated WLL 2 Tonne (2000kg) or greater
Features

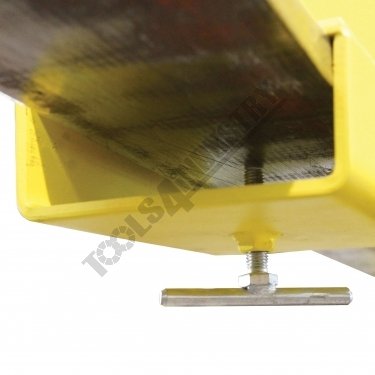

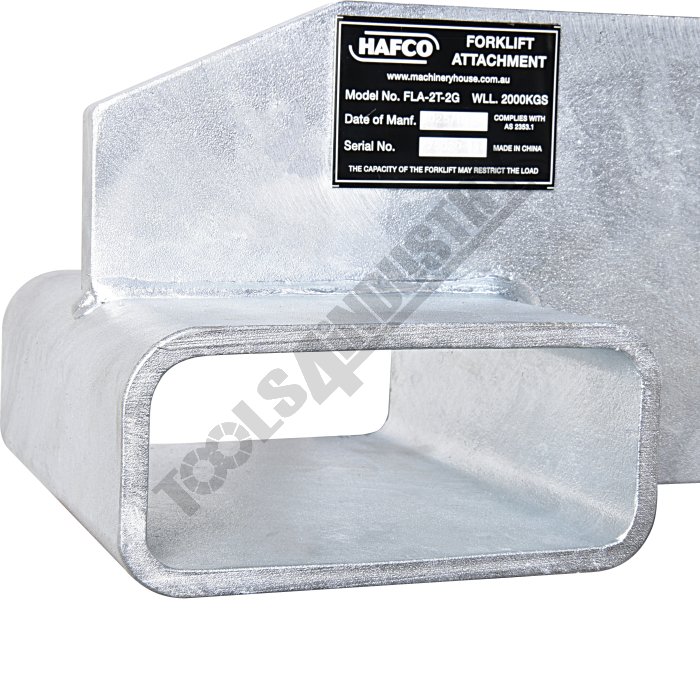

- T bar screw locks for fork tine's

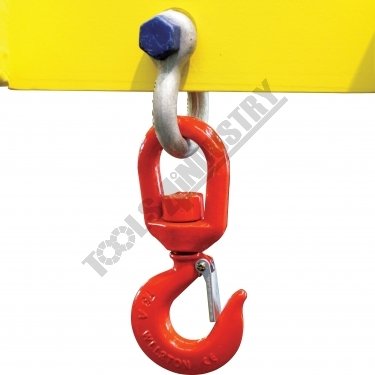

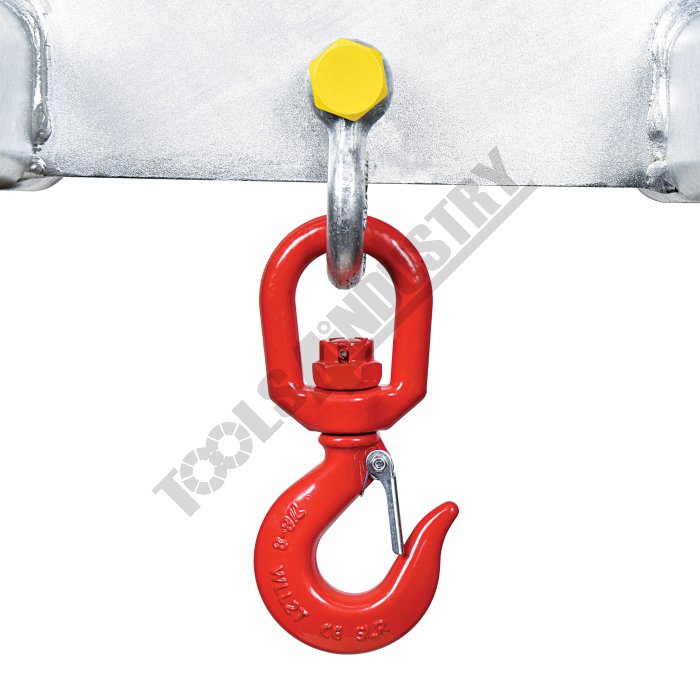

- Swivel hook with latch

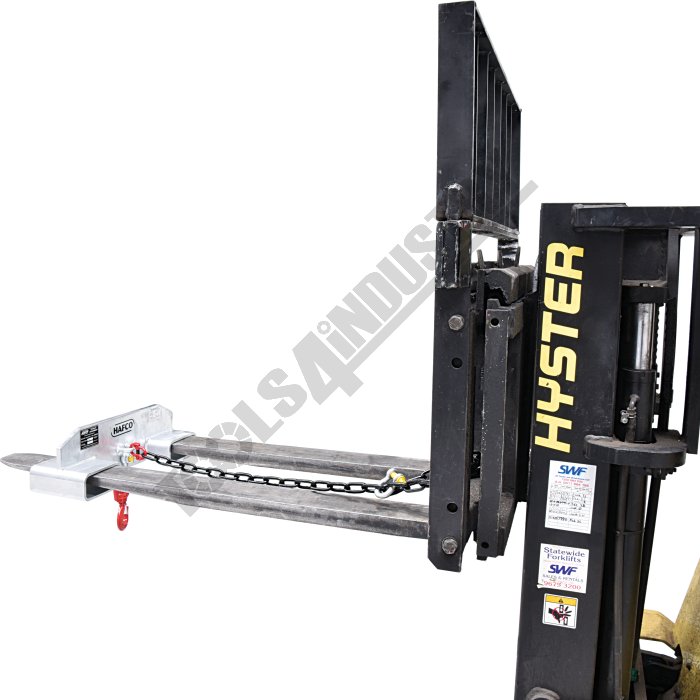

- 1200mm safety chain
- Steel construction
- 465mm fork tine centres
- Complies with standard AS/NZS2359.1

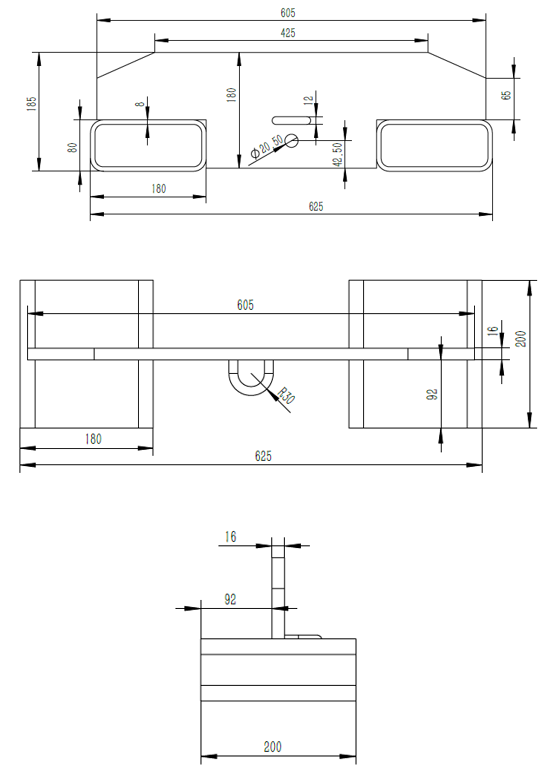

Specifications
- Compare 1 Products
- ORDER CODE
- Lifting Capacity (WLL)Tonne
- Widthmm
- Safety Chain Lengthmm
- Fork Pocket Sizemm
- Fork Pocket Centremm
- Horizontal Centre of Gravity (HCG)mm
- Vertical Centre of Gravity (VCG)mm
- Swivel Hook with Safety LatchYes / No
- StandardNo.
- Nett Weightkg
- C195
- 2
- 635
- 1200
- 153 x 60
- 465
- 100
- 75
- Yes
- AS/NZS2359.1
- 28.5
| ORDER CODE | 2 |
|---|---|
| Lifting Capacity (WLL)Tonne | 635 |
| Widthmm | 1200 |
| Safety Chain Lengthmm | 153 x 60 |
| Fork Pocket Sizemm | 465 |
| Fork Pocket Centremm | 100 |
| Horizontal Centre of Gravity (HCG)mm | 75 |
| Vertical Centre of Gravity (VCG)mm | Yes |
| Swivel Hook with Safety LatchYes / No | AS/NZS2359.1 |
| StandardNo. | 28.5 |
| Nett Weightkg |
