| Code | A353 |
|---|---|
| Model | TCS-450 |
| Capacity | 450kg Lifting Capacity |
| Weight (kg) | 38.5 |
| Weight (m3) | 0.051 |
| Weight (Freight) | 38.5 |
| Dimensions (cm) | 110 x 23 x 20 |

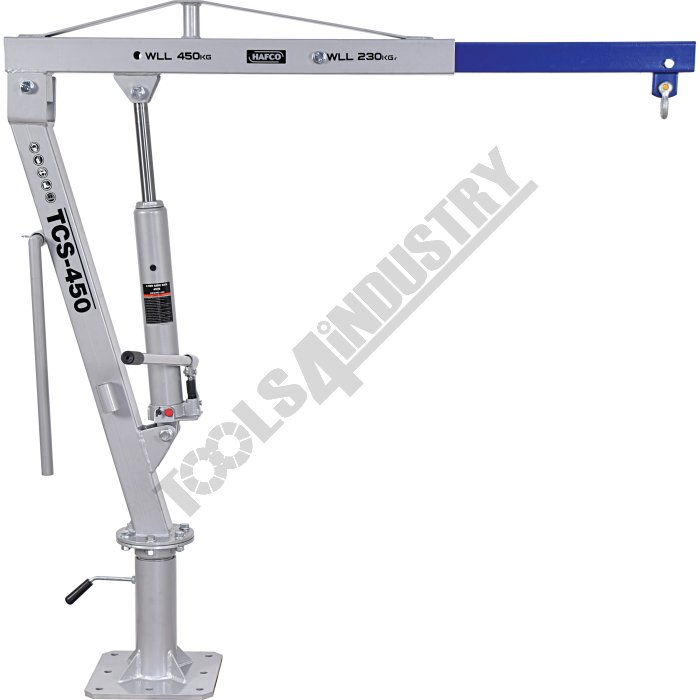

Swivel Crane - Truck or Ute TCS-450 450kg Lifting Capacity
Description
Keep it in your workshop, or the back of your ute or truckFeatures
- Heavy duty construction
- 450kg & 230kg lifting positions

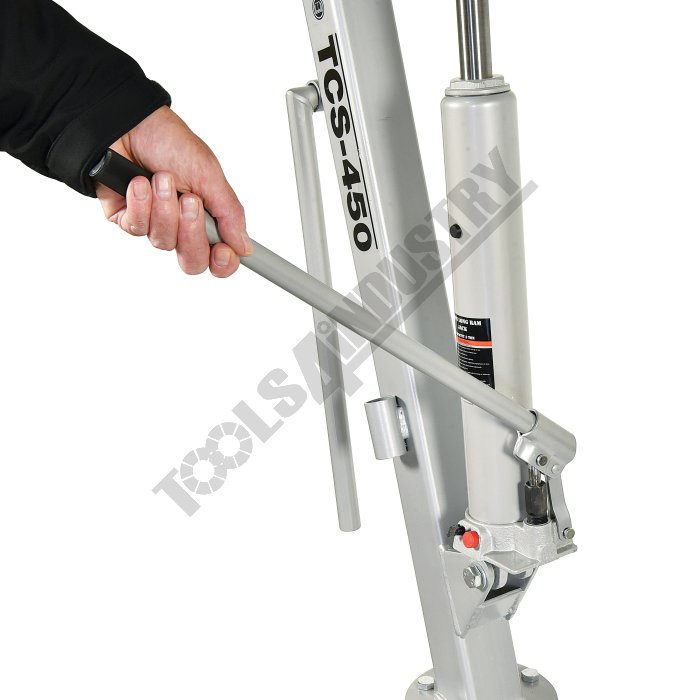

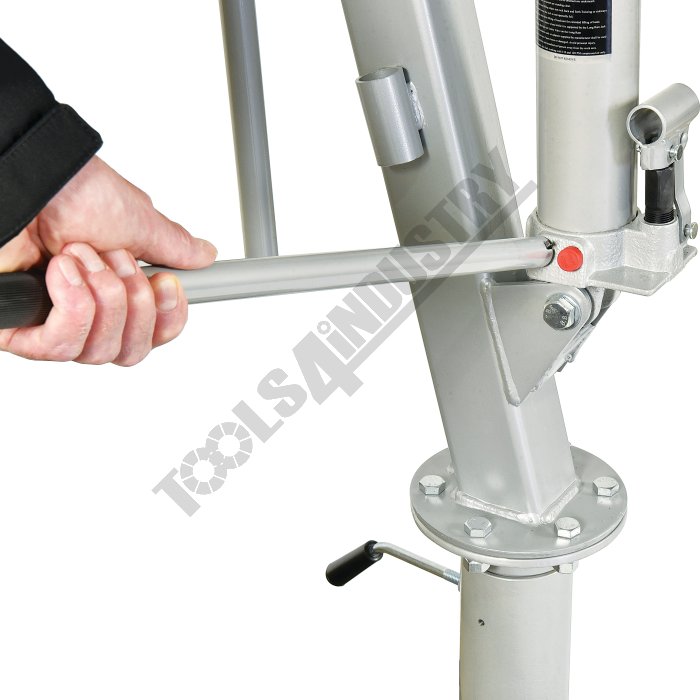

- Manual hydraulic lifting pump

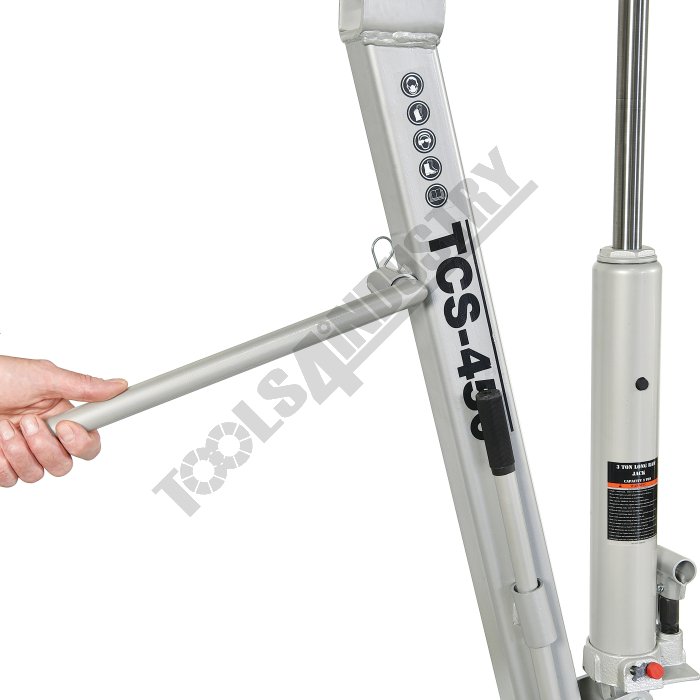

- 360° continuous manual rotation

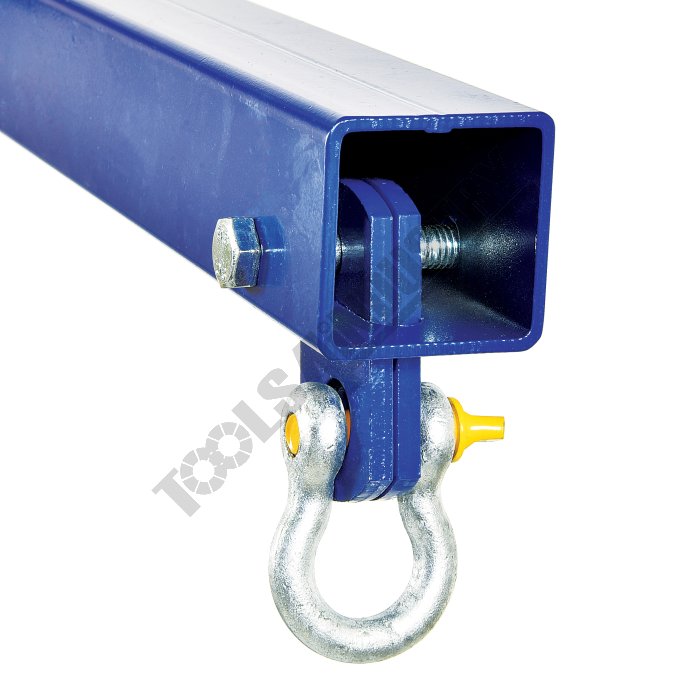

- Supplied with a load rated bow shackle

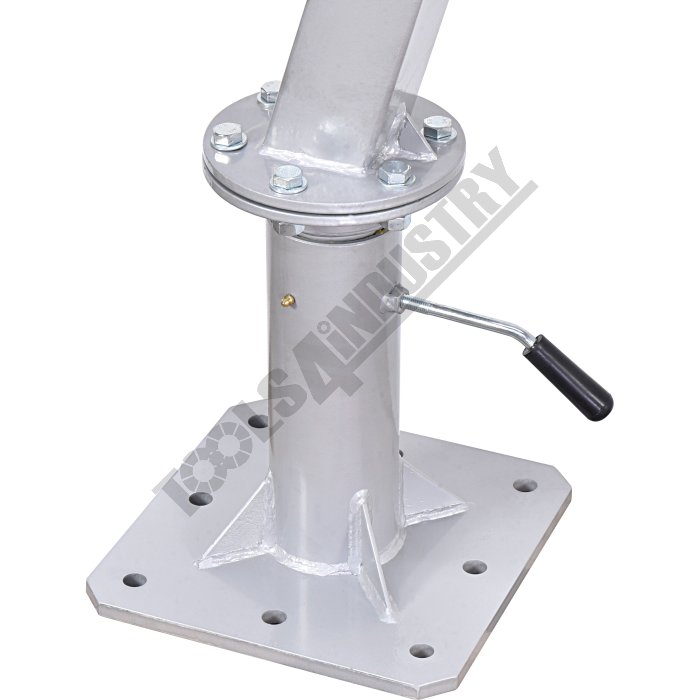

- 268 x 268mm base plate

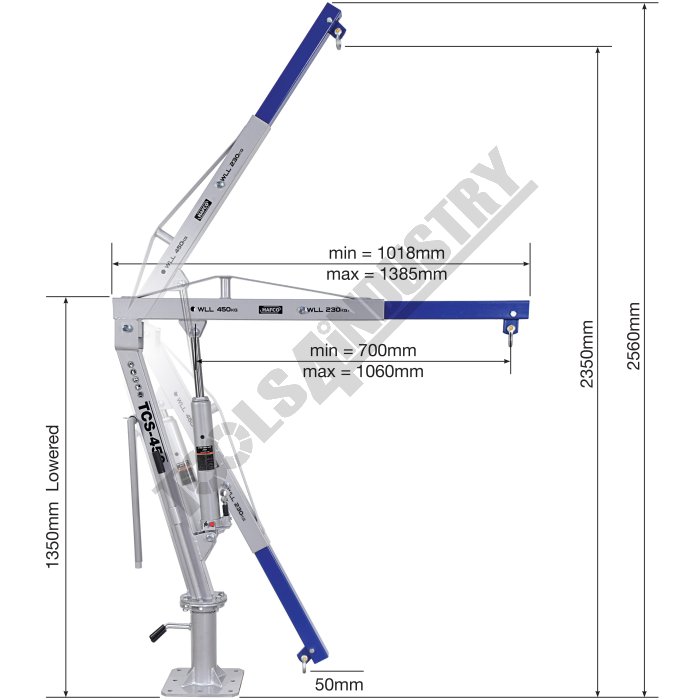

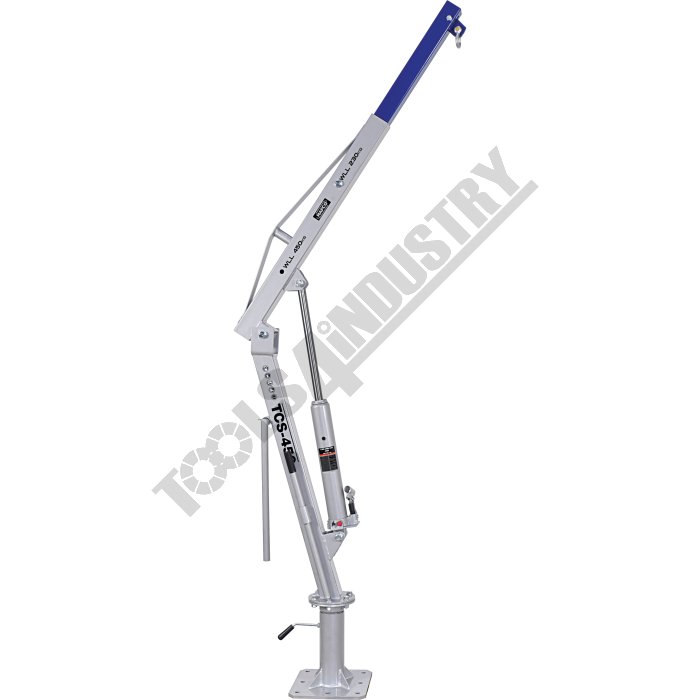

- Lifting height (Base to Lifting Shackle): 2350mm

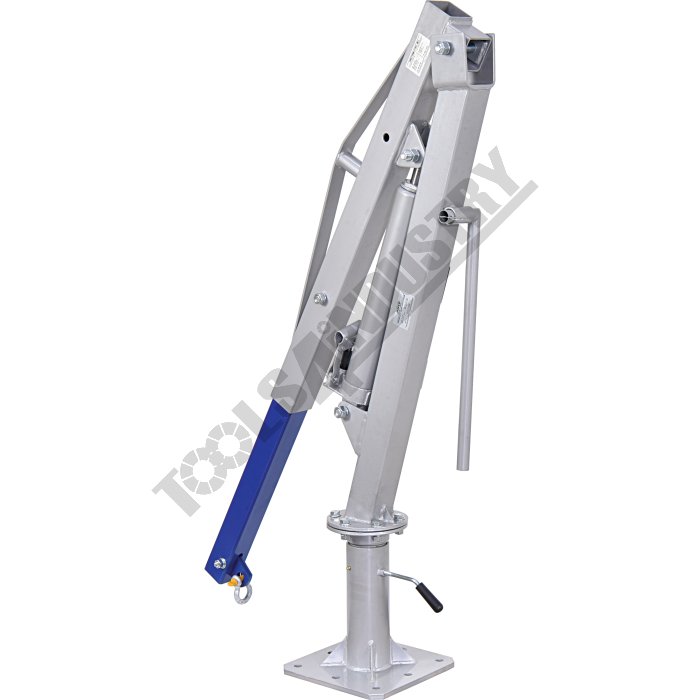

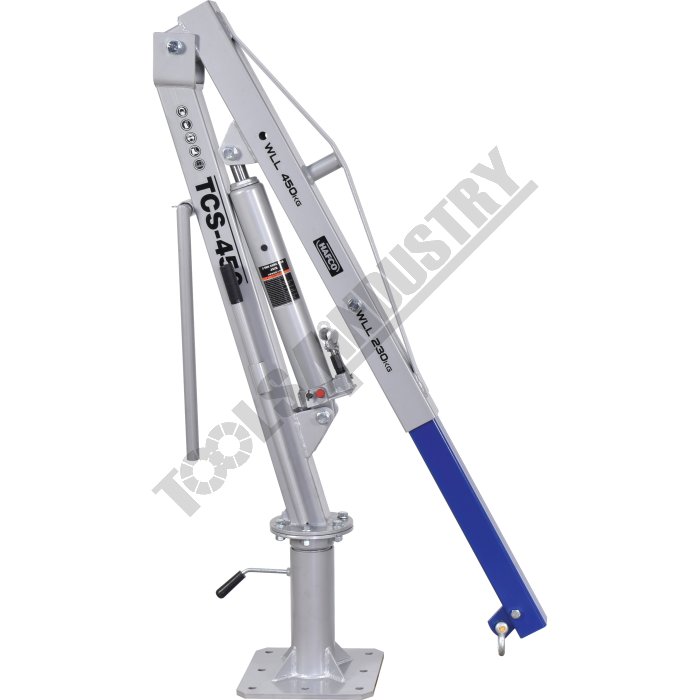

- Storage height folded (from base): 1350mm
- 2 position telescoping boom: 450kg @ 700mm Horizontal Throat, 230kg @ 1060mm Horizontal Throat
Specifications
- Compare 2 Products
- Order Code
- MODEL
- Hydraulic RamTonne
- Power SupplyV
- Single Line Lifting Capacitykg
- Double Line Lifting Capacitykg
- Lifting SystemType
- Lift Capacity Pin LocationsKg
- Steel Box Section Size - Vertical Supportmm
- Steel Box Section Size - Extension Arm Supportmm
- Max. Lift Height (Base to Lifting Shackle)mm
- Min. Lift Height (Base to Lifting Shackle)mm
- Overall Height - Boom at Lowest Positionmm
- Nett Weightkg
| Order Code | TCS-450 |
|---|---|
| MODEL | 3 |
| Hydraulic RamTonne | ~ |
| Power SupplyV | 450 |
| Single Line Lifting Capacitykg | ~ |
| Double Line Lifting Capacitykg | Hydraulic - Manual |
| Lifting SystemType | 450 & 230 |
| Lift Capacity Pin LocationsKg | 70 x 70 |
| Steel Box Section Size - Vertical Supportmm | 70 x 70 |
| Steel Box Section Size - Extension Arm Supportmm | 2350 |
| Max. Lift Height (Base to Lifting Shackle)mm | 50 |
| Min. Lift Height (Base to Lifting Shackle)mm | 1350 |
| Overall Height - Boom at Lowest Positionmm | 48.5 |
| Nett Weightkg |
