| Code | A085 |
|---|---|
| Model | ATS-255 |
| Capacity | 1.2mm Steel, 1.6mm Aluminium |
| Weight (kg) | 1.22 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 1.22 |
| Dimensions (cm) | 29 x 5 x 8 |

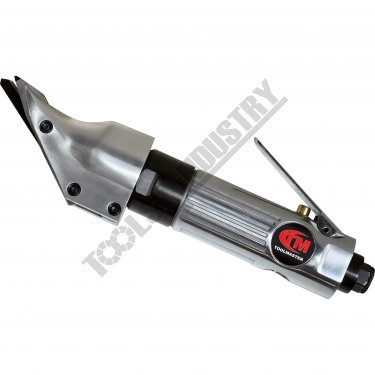

Air Shear ATS-255 1.2mm Steel, 1.6mm Aluminium
Description
The inline grip on the Toolmaster Air shears give you greater control for smooth, clean cuts through sheet metal and aluminum without burrs or deformed edges. The cutter head swivels a full 360 degrees, allowing you to adjust the throttle lever for precise control to suit the application.Features
- 1.2mm Mild steel capacity
- 1.6mm Aluminium capacity
- Lightweight Aluminium diecast body
- Cutter head swivels a full 360 degrees for precision control
- Rear exhaust
- Ideal tool for straight and contour cutting with minimium edge distortion in automotive body repairs and all other sheet metal applications.
- Replacement blades available
Specifications
- Capacity: Mild Steel 1.2mm
- Aluminium 1.6mm
- Strokes per min: 2600
- Air requirements: 4.5CFM (127 L/min)
- Air Pressure: 90PSI
- Inlet: 1/4" BSPT
- Sound pressure: 85.5dBA
- Length: 255mm
- Weight: 1.1kg
Includes
- 1 x 1/4" Male Hi-Flow Adaptor
Specifications
