This Product Is No Longer Available
| Code | W4202 |
|---|---|
| Model | BP-305 |
| Weight (kg) | 68 |
| Weight (m3) | 0.206 |
| Weight (Freight) | 68.598 |
| Dimensions (cm) | 112 x 36.5 x 50.5 |

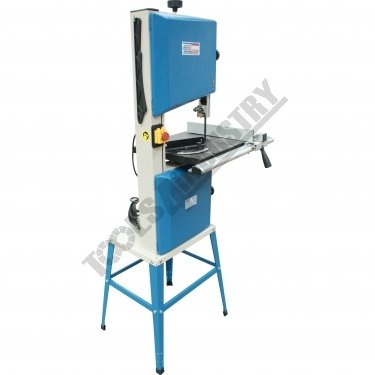

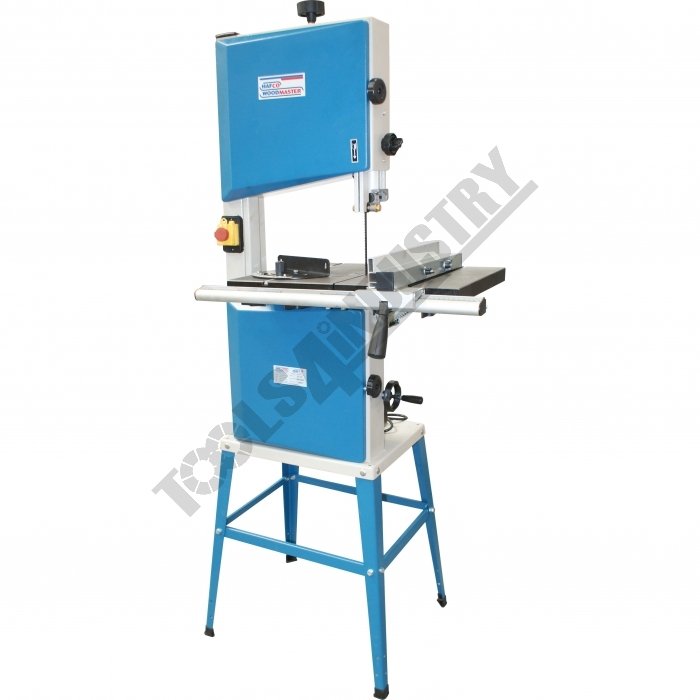

Wood Band Saw BP-305
Features
- Powerful 750W / 1hp 240V motor

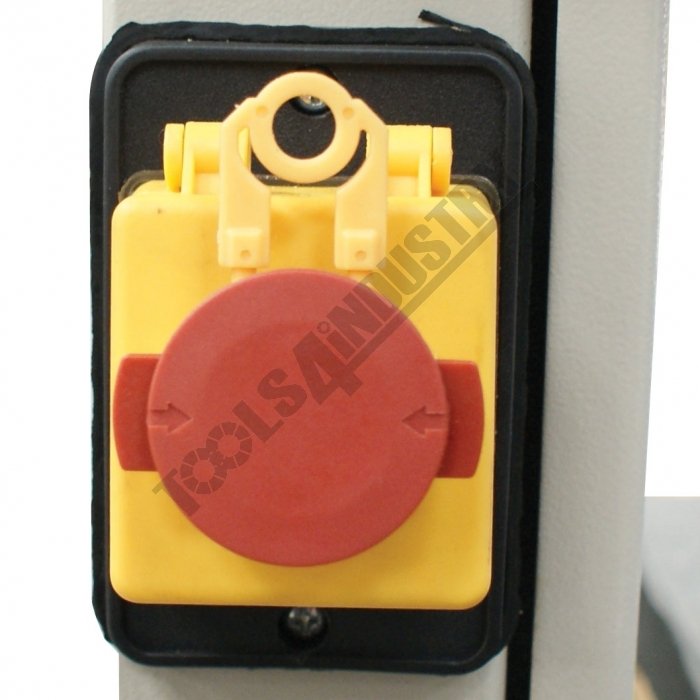

- Safety magnetic switch with emergency stop

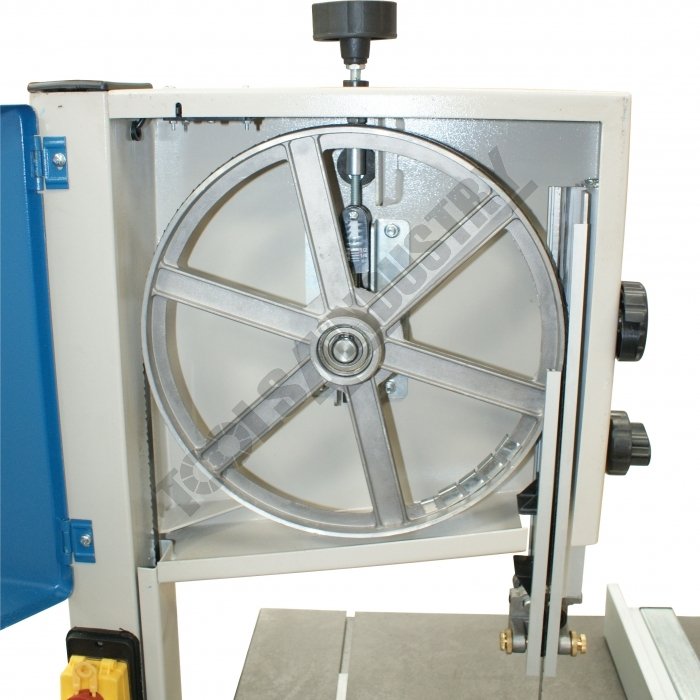

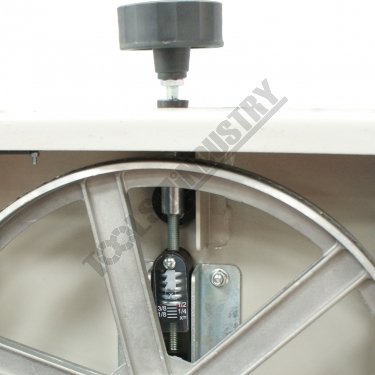

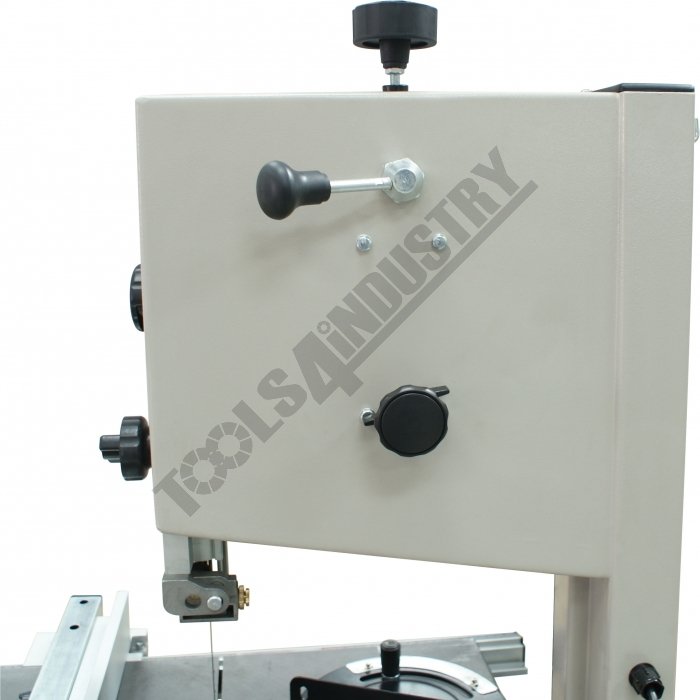

- Quick action blade tension system

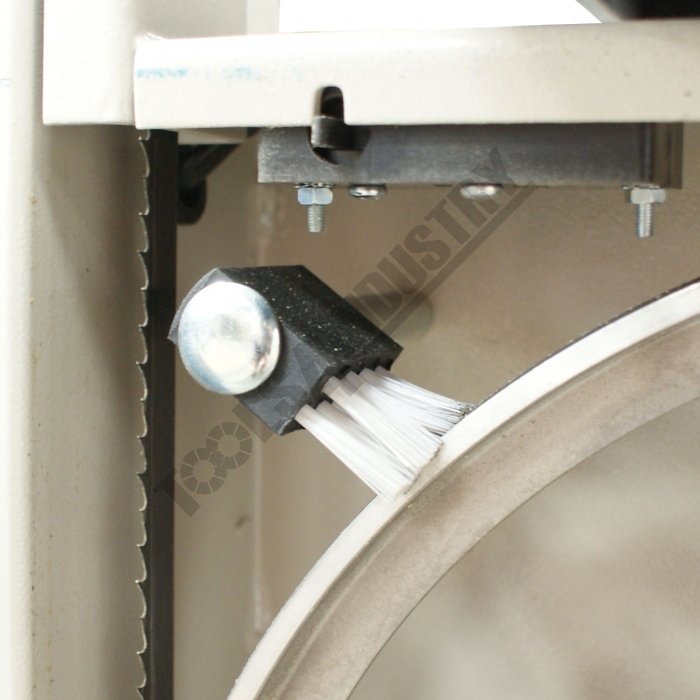

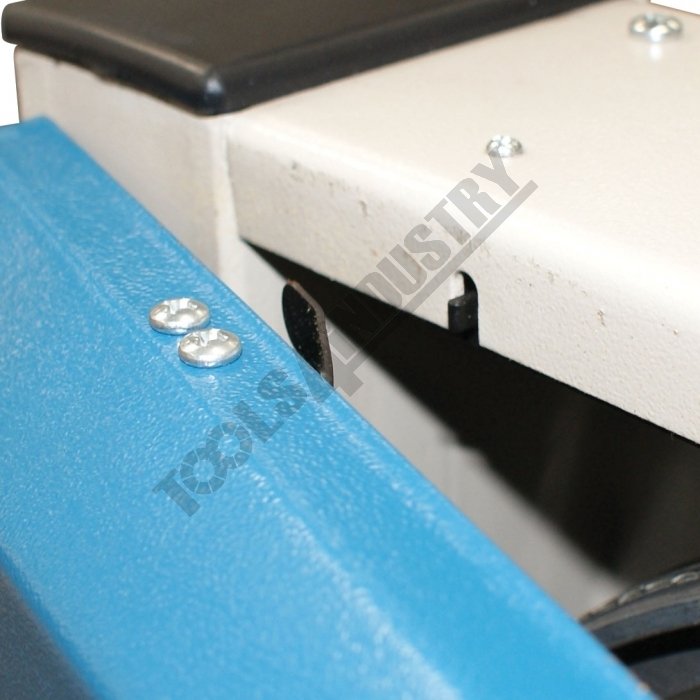

- Micro-switch protection on hinged blade guard doors

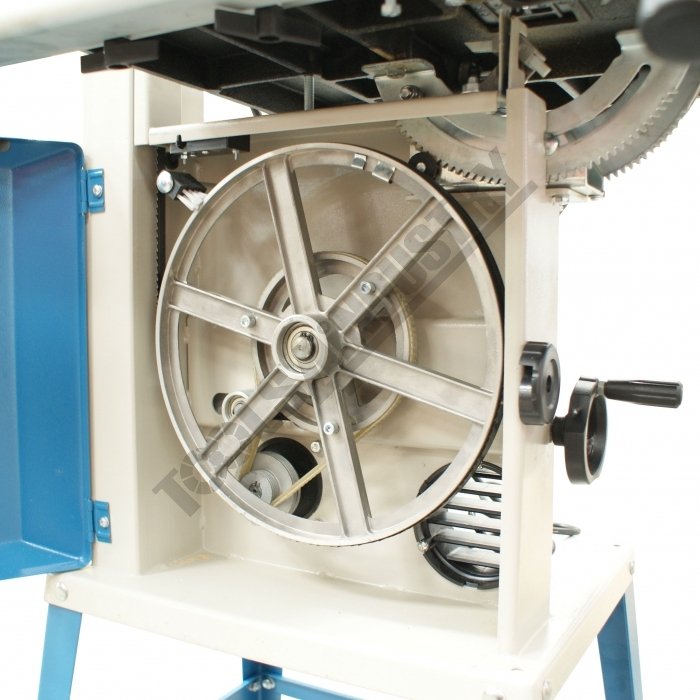

- 2 x blade speeds via mechanical belt tension handwheel system

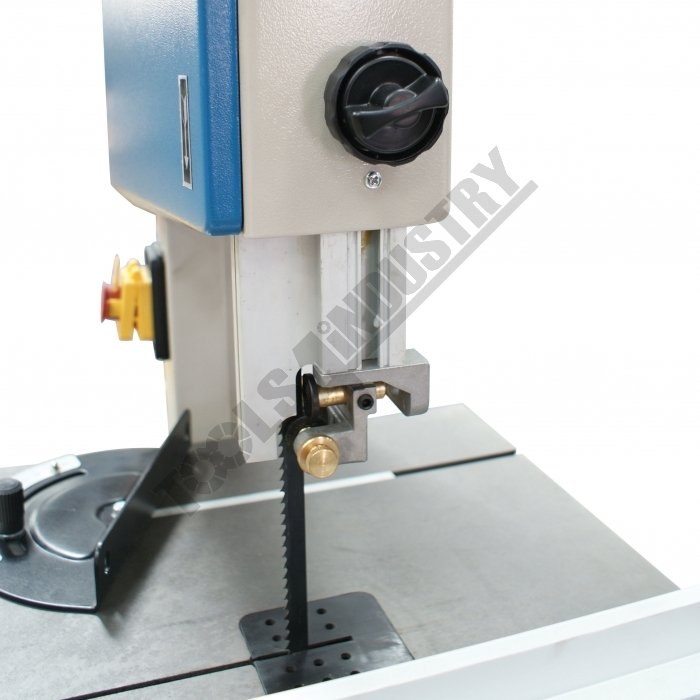

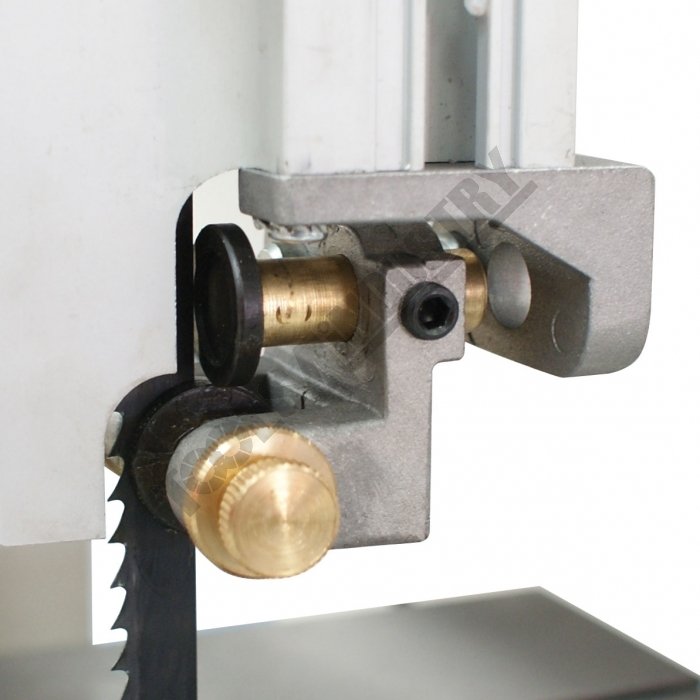

- Adjustable bearing blade guides

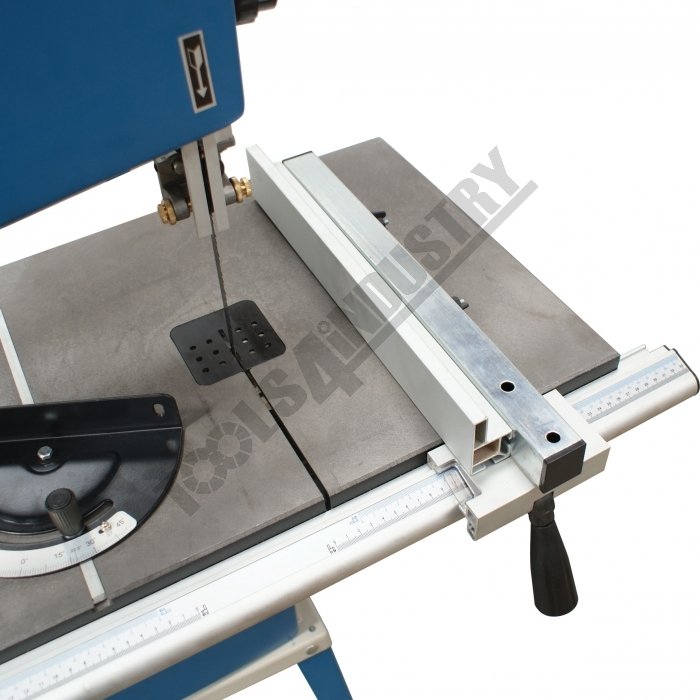

- Aluminium rip fence with quick action lock
- Large 548 x 400mm cast iron table

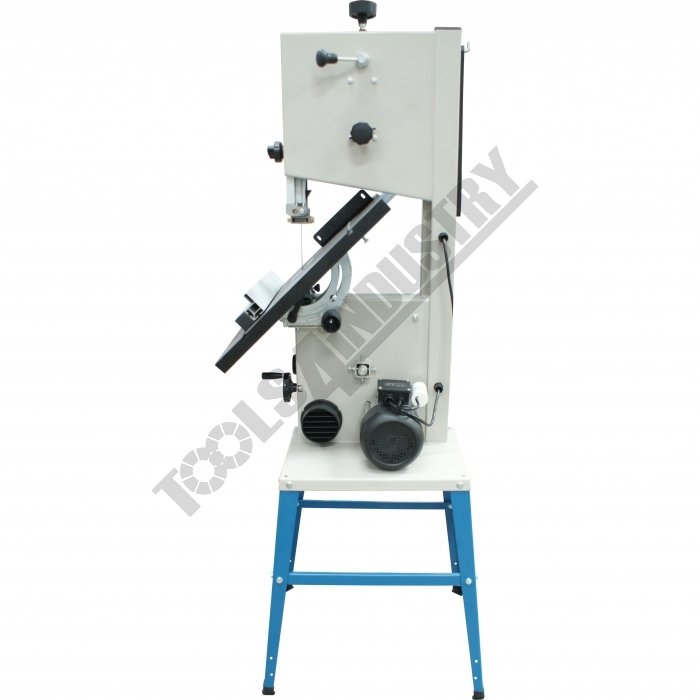

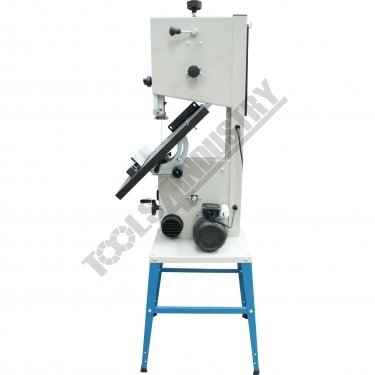

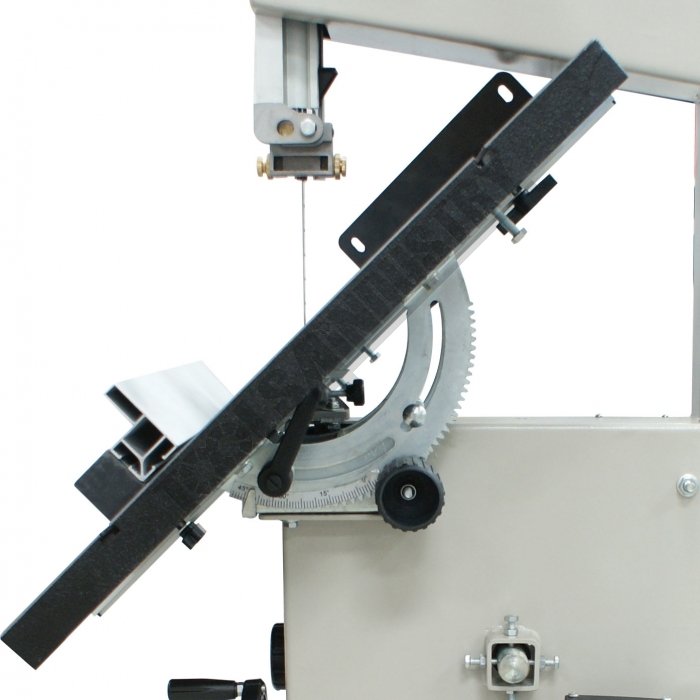

- Cast iron table tilts to 45°
- Large height capacity 175mm

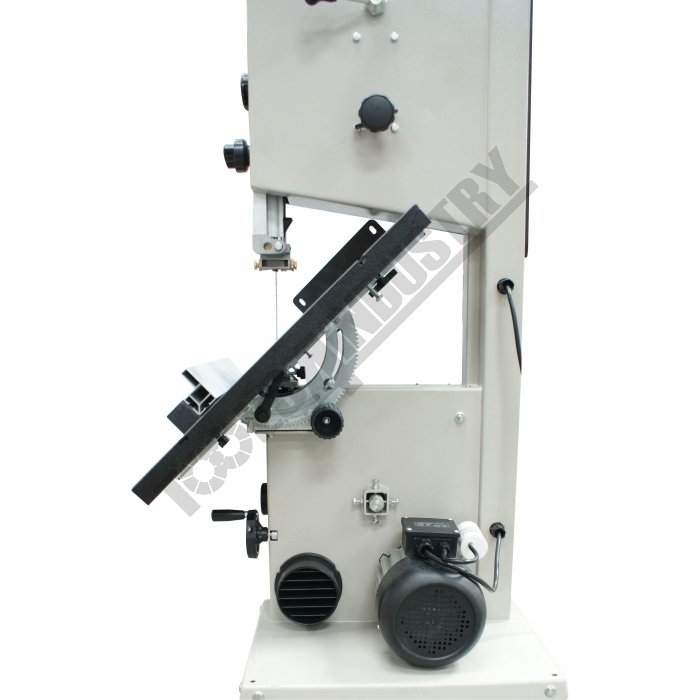

- 100mm dust collector port
- Heavy duty adjustable aluminium fence

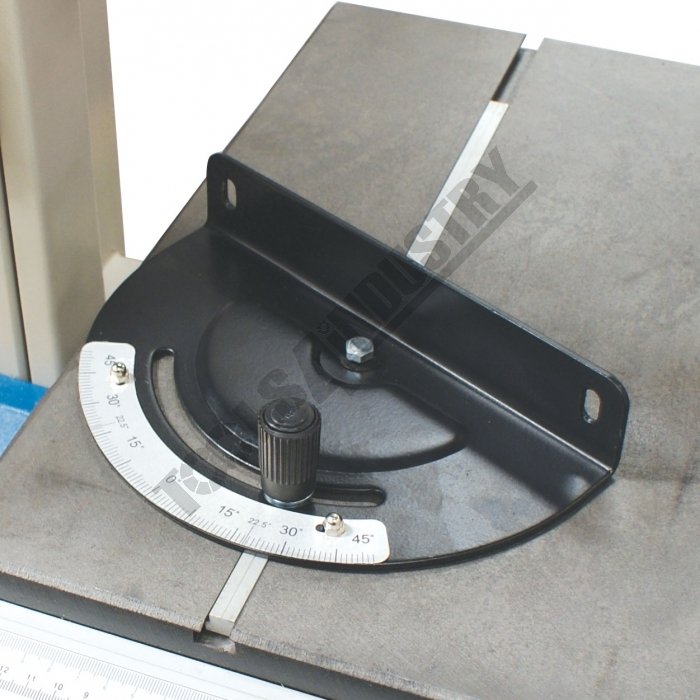

- Mitre guide & fence can be used on either side of blade
Includes
- Stand
- Mitre guide
- Heavy Duty Rip fence
Specifications
- Compare 29 Products
- ORDER CODE
- MODEL
- Wheel Diameter (Ø)mm
- Throat Capacitymm
- Height Capacitymm
- Table Sizemm
- Frame Type
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Blade CodeSuits
- Blade Size (L x W x T)mm
- Floor Space (W x D x H)mm
- Nett Weightkg
- W4202
- BP-305
- 310
- 305
- 175
- 548 x 400
- Steel
- 0.75 / 1
- 240 / 10
- W420A, W420B, W420F
- 2240 x 12.5 x 0.65
- ~
- 75
- W856
- Basato 4
- 380
- 375
- 250
- 548 x 400
- Steel
- 1.5 / 2
- 240 / 10
- W856A, W856B
- 2895 x 12 x 0.65
- ~
- 108
- W417
- BP-250
- 255
- 245
- 100
- 340 x 335
- Steel
- 0.375 / 0.5
- 240 / 10
- W417A, W417B
- 1712 x 9.5 x 0.65
- ~
- 35
- W691
- MBS500
- 470
- 465
- 285
- 630 x 480
- Steel
- 1.5 / 2
- 240 / 15
- W4335 / W4336
- 3607 x 25 x 0.90
- ~
- 175
- W427
- BP-500
- 525
- 510
- 335
- 508 x 612
- Steel
- 2.2 / 3
- 415
- W425A, W425B, W425C
- 3937 x 25.4 x 0.70
- ~
- 265
- W4334
- BP-470
- 470
- 465
- 280
- 630 x 480
- Steel
- 2.25 / 3
- 240 / 15
- W4335, W4336
- 3607 x 19 x 0.80
- ~
- 180
- R821
- BS300E
- ~
- 305
- 190
- 480 x 400
- Steel
- 0.75 / 1
- 240 / 10
- W420A, W420B, W420F
- 2368 x 12.5 x 0.65
- ~
- 80
- W420
- BP-300
- 310
- 305
- 180
- 480 x 400
- Steel
- 0.75 / 1
- 240 / 10
- W420A, W420B
- 2240 x 12.5 x 0.65
- ~
- 65
- W432
- BP-530
- 530
- 515
- 310
- 530 x 530
- Steel
- 1.5 / 2
- 240 / 10
- W432A, W432B
- 3860 x 19 x 0.80
- ~
- 196
- W4324
- BP-420
- 420
- 410
- 255
- 535 x 435
- Steel
- 2.25 / 3
- 240 / 10
- W4324A, W4324B
- 3345 x 16 x 0.65
- ~
- 140
- W854
- Basato 3 Vario
- 315
- 300
- 165
- 540 x 400
- Steel
- 0.8 / 1.06
- 240 / 10
- W854A, W854B
- 2360 x 12 x 0.65
- ~
- 69
- W403
- BP-14A
- 356
- 340
- 150
- 350 x 350
- Cast Iron
- 0.55 / 0.75
- 240 / 10
- W404A, W404B, W404D
- 2362 x 9.5 x 0.65
- ~
- 78
- R823
- BS400
- ~
- 416
- 305
- 535 x 480
- Steel
- 1.5 / 2
- 240 / 10
- W433A, W433B
- 3378 x 16 x 0.65
- ~
- 140
- W950
- BP-255
- 255
- 245
- 152
- 360 x 320
- Steel
- 0.375 / 0.5
- 240 / 10
- W950A, W950B, W950F
- 1826 x 12.5 x 0.65
- 750 x 650 x 1430
- 38
- W9501
- BP-255 + Circle Att Package
- 255
- 245
- 152
- 360 x 320
- Steel
- 0.375 / 0.5
- 240 / 10
- W950A, W950B, W950F
- 1826 x 12.5 x 0.65
- 750 x 650 x 1430
- 43
- W952
- BP-310
- 310
- 305
- 165
- 480 x 390
- Steel
- 0.75 / 1
- 240 / 10
- W420A, W420B, W420F
- 2240 x 12.5 x 0.65
- 830 x 700 x 1590
- 73
- W955
- BP-360
- 360
- 340
- 225
- 545 x 515
- Steel
- 1.1 / 1.5
- 240 / 10
- W955A,W955B, W955F
- 2560 x 16 x 0.65
- 920 x 800 x 1710
- 88
- W4224
- BP-355
- 355
- 345
- 245
- 535 x 435
- Steel
- 1.5 / 2
- 240 / 10
- W4224A,W4224B,W4224F
- 2750 x 16 x 0.65
- 920 x 760 x 1810
- 121
- W4230
- BP-355H
- 355
- 345
- 300
- 540 x 480
- Steel
- 1.7 / 2.5
- 240 / 10
- W4230A, W4230B, W4230F
- 2920 x 6~19 x 0.9
- 680 x 600
- 132
- W4330
- BP-430A
- 430
- 415
- 310
- 585 x 435 with Extension
- Steel
- 1.5 / 2 (Electronic Brake System)
- 240 / 10
- W433A, W433B, W433C
- 3345 x 16 x 0.80
- 850 x 830 x 1860
- 181
- W4340
- BP-480A
- 480
- 465
- 310
- 680 x 480
- Steel
- 1.5 / 2 (Electronic Brake System)
- 240 / 10
- W434A, W434B
- 3630 x 19 x 0.80
- 960 x 850 x 1935
- 214
- W4344
- BP-480
- 480
- 465
- 310
- 480 x 632
- Steel
- 1.5 / 2 [with Brake System]
- 240 / 15
- W434A, W434B
- 3630 x 19 x 0.65
- 960 x 850 x 1935
- 182
- W4346
- BP-480
- 480
- 465
- 310
- 480 x 682
- Steel
- 1.5 / 2 [with Brake System]
- 415 / 3.3
- W434A, W434B
- 3630 x 19 x 0.65
- 960 x 850 x 1935
- 180.5
- W425
- BP-500
- 525
- 510
- 335
- 508 x 612
- Steel
- 2.2 / 3
- 240 / 15
- W425A, W425B, W425C
- 3937 x 25.4 x 0.70
- 1050 x 800 x 1910
- 290
- W429
- BP-630
- 630
- 615
- 370
- 542 x 660
- Steel
- 2.2/ 3
- 415
- W429A, W429B
- 4483 x 25.4 x 0.90
- 1160 x 900 x 2100
- 350
- W434
- BP-480
- 480
- 462
- 310
- 480 x 480
- Steel
- 1.5 / 2
- 240 / 15
- W434A, W434B
- 3630 x 19 x 0.80
- 960 x 850 x 1935
- 174
- W433
- BP-430
- 430
- 415
- 310
- 430 x 430
- Steel
- 1.5 / 2
- 240 / 10
- W433A, W433B, W433C
- 3345 x 16 x 0.80
- 850 x 830 x 1860
- 146
- R822
- BS350S
- 350
- 340
- 230
- 548 x 500
- Steel
- 1.125 / 1.5
- 240 / 10
- R822A, R822B, R822F
- 2628 x 16 x 0.65
- 1000 x 800 x 1810
- 103
- W855
- Basato 3h Vario
- 315
- 305
- 205
- 548 x 400
- Steel
- 0.8 / 1.06
- 240 / 10
- W854A, W854AB
- 2360 x 13 x 0.65
- 1100 x 650 x 1680
- 72
| ORDER CODE | BP-305 |
|---|---|
| MODEL | 310 |
| Wheel Diameter (Ø)mm | 305 |
| Throat Capacitymm | 175 |
| Height Capacitymm | 548 x 400 |
| Table Sizemm | Steel |
| Frame Type | 0.75 / 1 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | W420A, W420B, W420F |
| Blade CodeSuits | 2240 x 12.5 x 0.65 |
| Blade Size (L x W x T)mm | ~ |
| Floor Space (W x D x H)mm | 75 |
| Nett Weightkg |
