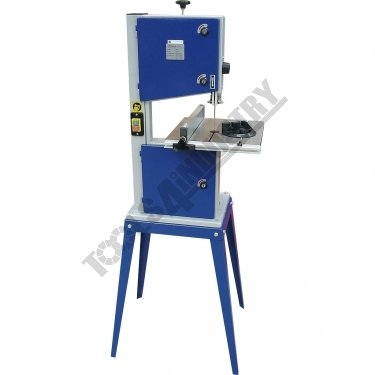

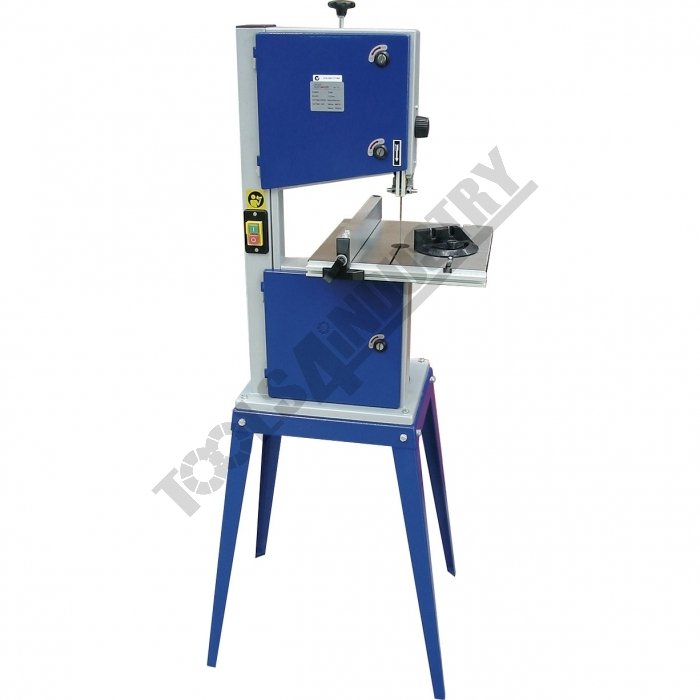

W417 Wood Band Saw BP-250
Wood Band Saw

Magnetic Safety SwitchSliding Rip FenceMitre Guide 0 45 DegreesSafety Locks on DoorsBall Bearing Blade Guides

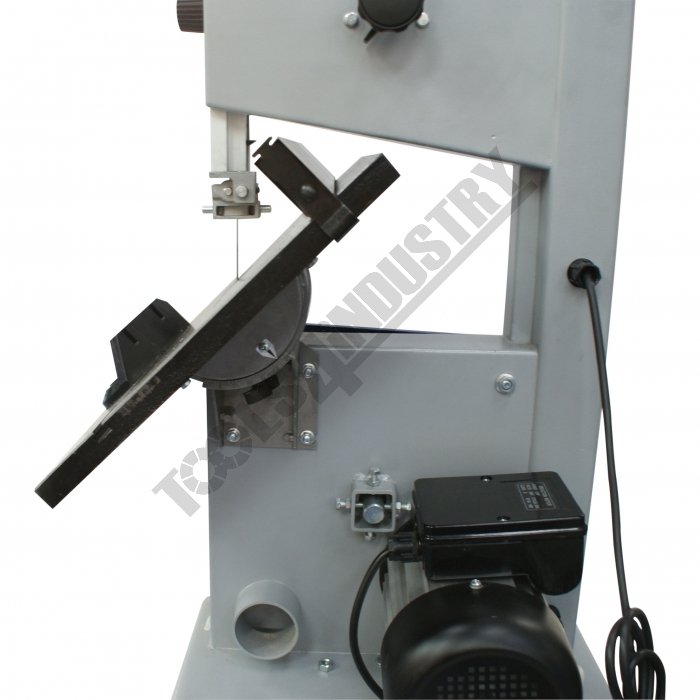

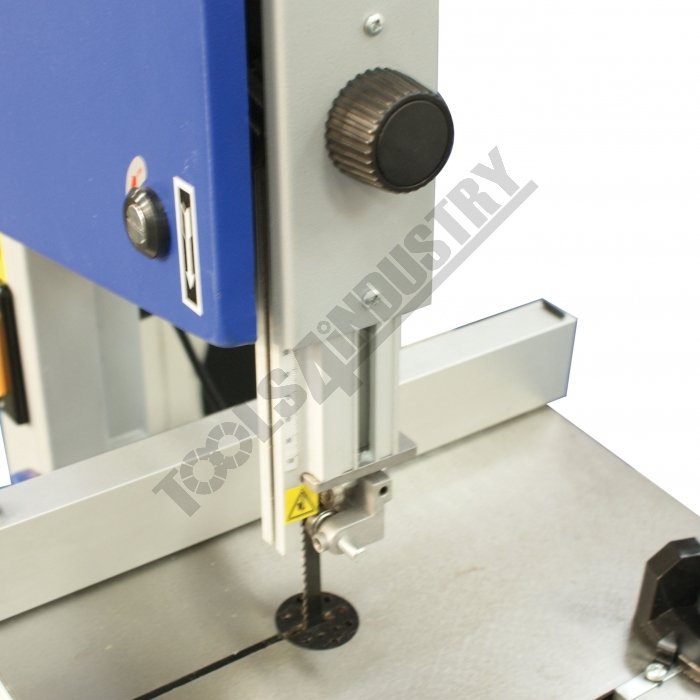

Cast Iron Table Tilts 0 45 degreesDoor LocksGeared rack height adjustmentBlade Guide AdjustmentRear View
Code:W417
Model:BP-250
Capacity:245 x 100mm
Weight (Nett):47 Kg
Weight (Cubic):0.128 m3
Weight (Freight):47 Kg
Dimensions:88 x 33 x 44
In Stock:Yes

Wood Band Saw

Features
- Powerful 375W / 1/2 hp 240V induction motor

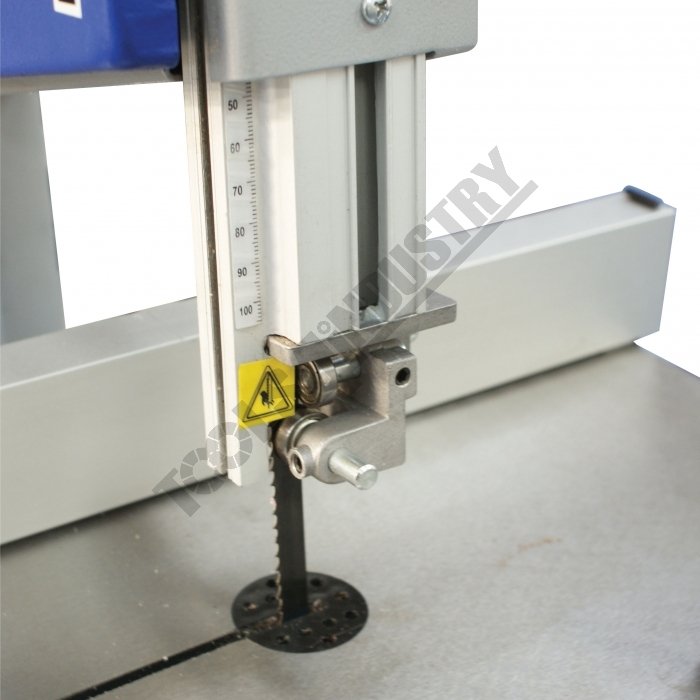

- Geared rack height adjustment for blade guides

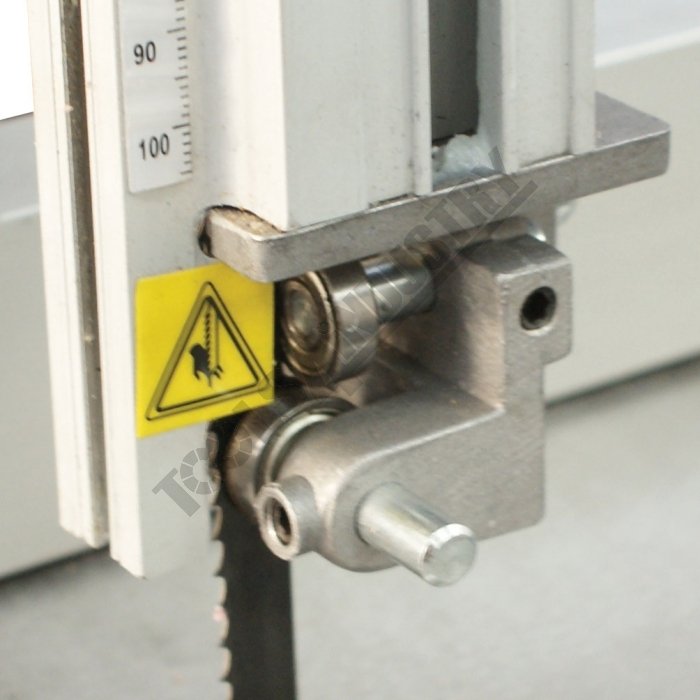

- Ball bearing blade guide ensures smooth operation

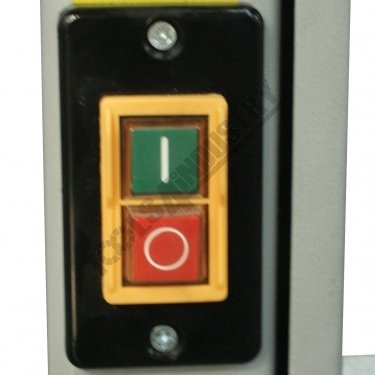

- Safety magnetic switch with dust cover

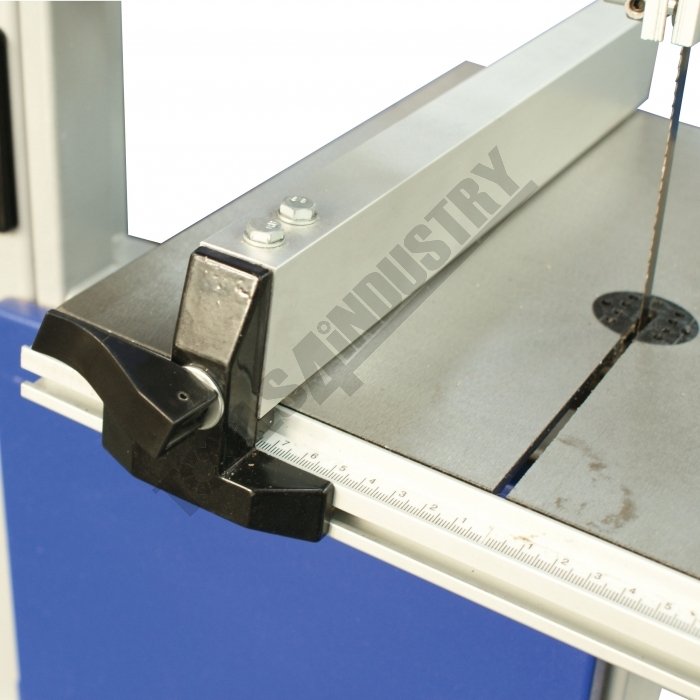

- Aluminium rip fence with quick action lock
- Hinged top & bottom blade guard doors enables quick blade replacement

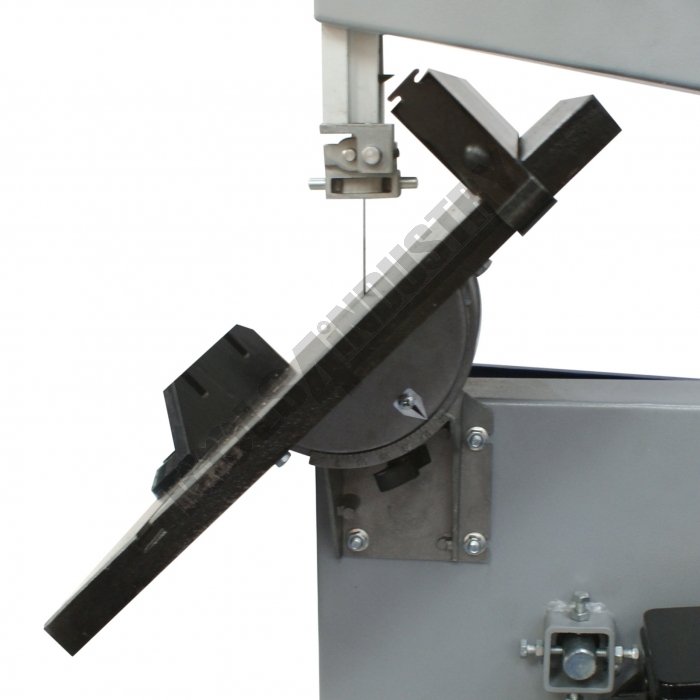

- Cast iron table tilts 0-45ยบ
- 60mm dust collector port

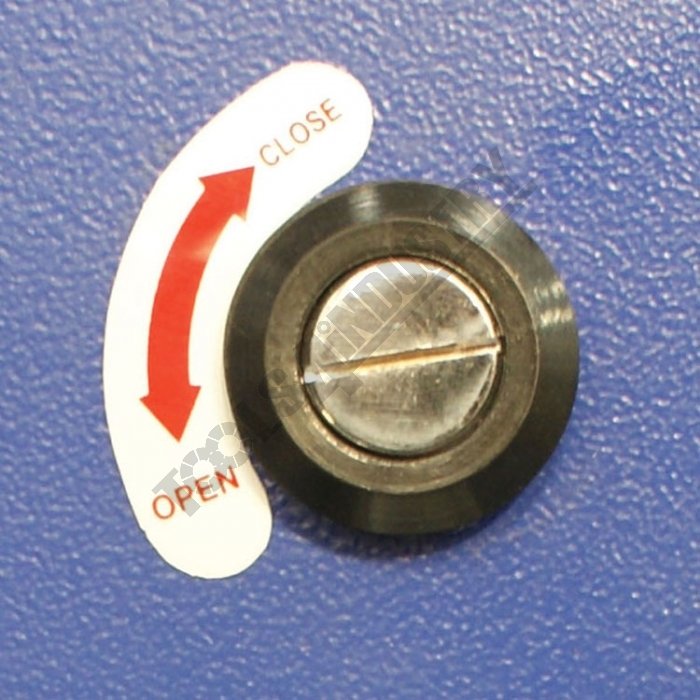

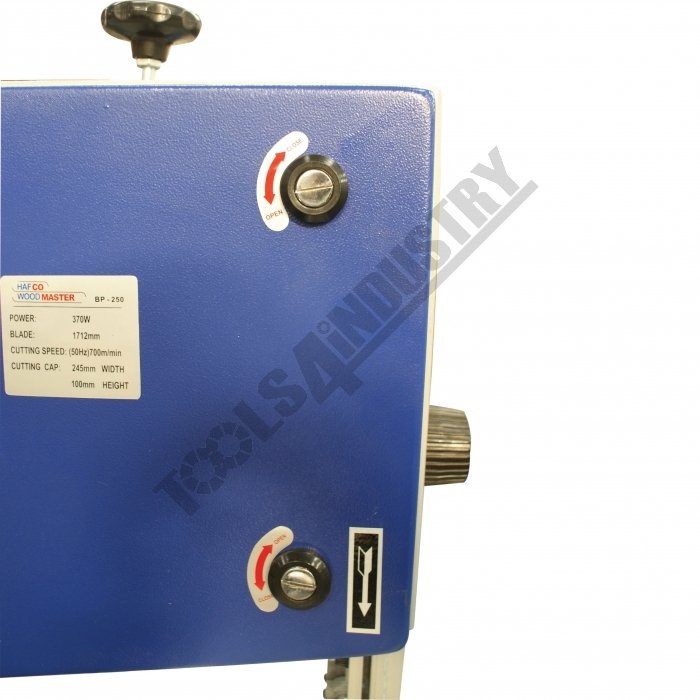

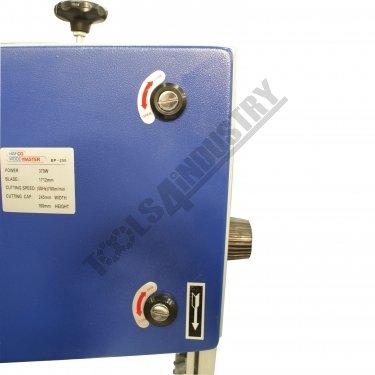

- Safety locks on doors

Includes
• Stand

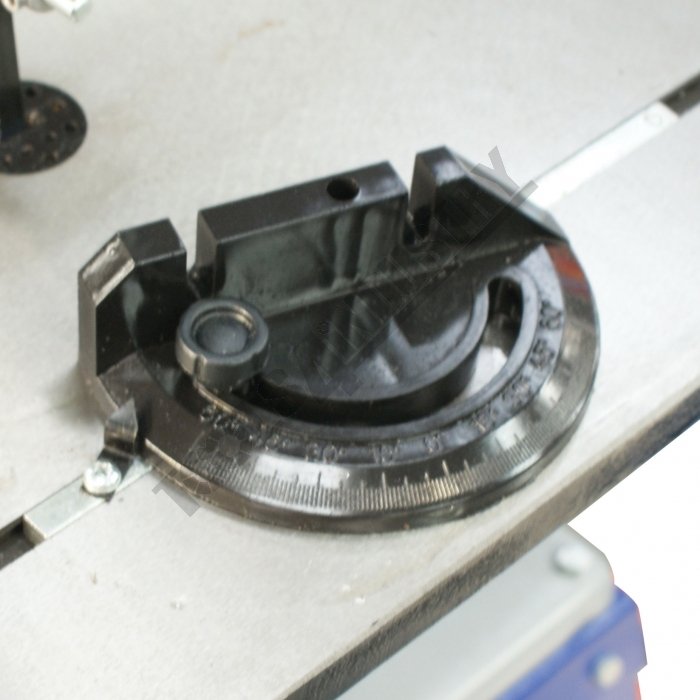

• Mitre guide
• Rip fence

Array
(
    [17] => W403
    [0] => W417
    [11] => W420
    [1] => W4202
    [16] => W4214
    [3] => W4224
    [8] => W425
    [9] => W427
    [10] => W429
    [12] => W430
    [13] => W432
    [14] => W4324
    [5] => W433
    [6] => W4334
    [7] => W434
    [15] => W854
    [2] => W855
    [4] => W856
)

All Sorts: Array
(
    [0] => W403
    [1] => W417
    [2] => W420
    [3] => W4202
    [4] => W4214
    [5] => W4224
    [6] => W425
    [7] => W427
    [8] => W429
    [9] => W430
    [10] => W432
    [11] => W4324
    [12] => W433
    [13] => W4334
    [14] => W434
    [15] => W854
    [16] => W855
    [17] => W856
)

All Codes +  All Sorts: Array
(
    [W403] => W403
    [W417] => W417
    [W420] => W420
    [W4202] => W4202
    [W4214] => W4214
    [W4224] => W4224
    [W425] => W425
    [W427] => W427
    [W429] => W429
    [W430] => W430
    [W432] => W432
    [W4324] => W4324
    [W433] => W433
    [W4334] => W4334
    [W434] => W434
    [W854] => W854
    [W855] => W855
    [W856] => W856
)

Current: 1
Max: 11
Back: NO
Next: 1
First: W417
Second: W4202
Third: W4224
Fourth: W425


CODEW417W4202W4224W425
ModelBP-250BP-305BP-355BP-500
Model~~~~
Throat Capacity245mm305mm345mm510mm
Wheel Diameter255mm310mm355mm525mm
Height Capacity100mm175mm245mm335mm
Table Size340 x 335mm548 x 400mm535 x 435mm508 x 612mm
Frame TypeSteelSteelSteelSteel
Motor Voltage240V240V240V240V
Motor Power375W, 1/2hp750W, 1hp1500W, 2hp 2200W, 3hp
Full Height1530mm1710mm1800mm1910mm
Weight (nett)35kg75kg96Kg265kg
Blade CodeW417AW420A/B/FW4224A/BW425A/B
Blade Length1712 x 9.5mm2240 x 12.5mm2750 x 16mm3937 x 25.4mm


Recommended Accessories

W417A - BP-250 Band Saw Blade 6TPI
W930 - Mobile Base 227kg
W344 - DCK-2 Dust Accessory Kit (Wood Only)
W334 - Dust Collector Adaptor 100-63mm
W333 - Dust Collector Adaptor 100-125mm
W335 - Dust Collector Shut Off Valve 100mm
W336 - Dust Collector Elbow 100mm
W337 - Dust Collector 'Y' Fitting 100mm
W338 - Dust Collector Universal Dust Hood 100mm
W339 - Dust Collector Floor Sweeper Attachment 100mm
W3985 - per/Metre Dust Hose (Wood Only) 63mm (2-1/2") Dia.
W3405 - Dust Collector Steel Hose Clamp 63mm (2-1/2") Dia.
W334A - Dust Collector Stepped Reducer 63mm, 50mm, 38mm, 32mm, 25mm
W340 - Dust Collector Steel Hose Clamp 100mm (4") Dia.
W398 - per/Metre Dust Hose (Wood Only) 100mm (4") Dia.
W343 - RS-720 Roller Stand 710-1125mm
W3434 - RSH-970 Roller Stand 580-970mm
