This Product Is No Longer Available
| Code | V357 |
|---|---|
| Model | VQV-160V |
| Capacity | 160 x 300mm |
| Weight (kg) | 91 |
| Weight (m3) | 0.004 |
| Weight (Freight) | 91 |
| Dimensions (cm) | 12.7 x 20 x 15.7 |
Product Brochure
This Product Is No Longer Available

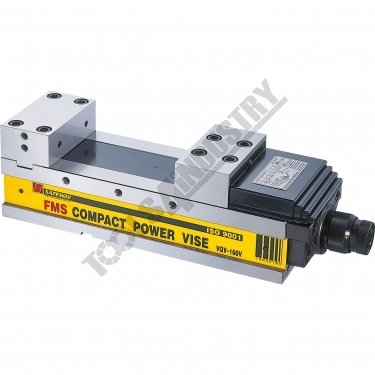

Safeway Compact Power Machine Vice VQV-160V 160 x 300mm
Description
Precision Power Machine Vice with modular jaws. Replaceable jaws allow for special purpose holding of components. The spindle allows for pre-setting of the clamping pressureFeatures
- Power pre-set operation
- Maximum opening capacity yet compact in overall length
- Toleranced all over for use with other vices as matched pairs
- Rigid material- Ductile Iron FCD60 JIS. Equal to GGG60. 80,000 psi tensile strength.
- Flame hardened to HRC 45
- Chip cover to protect leadscrew
- Jaws hardened to HRC 52-55

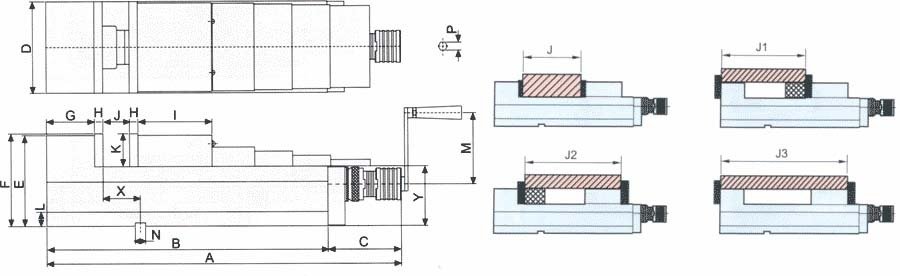

Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- Jaw Widthmm
- Pressurekgf
- Amm
- Bmm
- Cmm
- Dmm
- Emm
- Fmm
- Gmm
- Imm
- Jmm
- Kmm
- Mmm
- Nmm
- Xmm
- Ymm
- Nett Weightkg
| ORDER CODE | VQV-160V |
|---|---|
| MODEL | 160 |
| Jaw Widthmm | 5292 |
| Pressurekgf | 581 |
| Amm | 475 |
| Bmm | 106 |
| Cmm | 161 |
| Dmm | 152 |
| Emm | 160 |
| Fmm | 86 |
| Gmm | 86 |
| Imm | 0 - 300 |
| Jmm | 55 |
| Kmm | 125 |
| Mmm | 18 |
| Nmm | 65 |
| Xmm | 105 |
| Ymm | 62 |
| Nett Weightkg |
