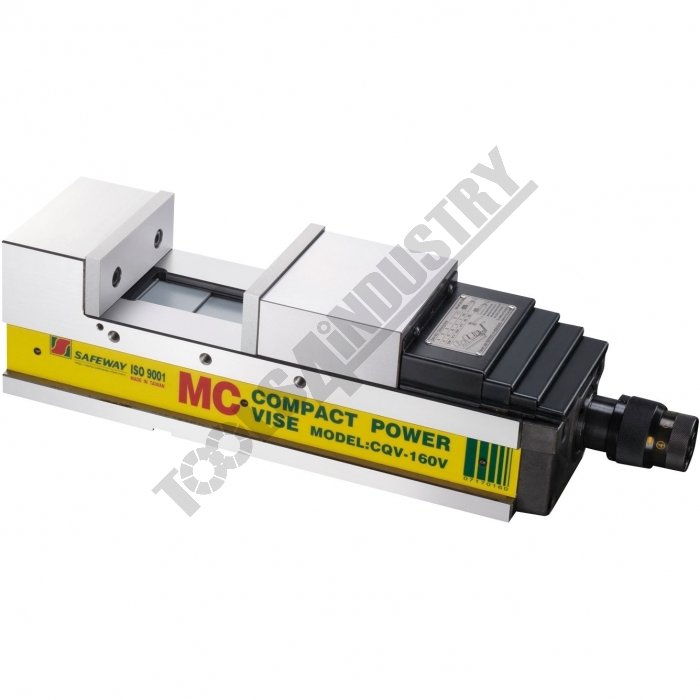

Safeway Compact Power Machine Vice CQV-160V 160 x 300mm

Description

Compact design power vice that allows you to set a pre-set pressure which is repeated each time you close the vice.
Mechanically operated with a two speed system.

Features

• Clamping system mechanical power
• Clamping power indicating graduations are engraved on the vice handle to show instantly the figure of clamping force in tons
• Semi-spherical segment eliminates jaw lifting and work piece tilting
• Rigid-material Ductile line FCD600 JIS (equal to GGG-60) with
• 60 kilograms / MM2 or 80 thousand PSI tensile strength
• Vice bed flame hardened to HRC45°
• Chip covers on each vice prevent chips falling into leadscrew



• CLAMPING FORCE DIAL
• 0 = 5(490) KN(kgf)
• 1 = 12(1176) KN(kgf)
• 2 = 21(2058) KN(kgf)
• 3 = 43(4214) KN(kgf)
• 4 = 54(5292) KN(kgf)
