This Product Is No Longer Available
| Code | R028 |
|---|---|
| Model | TRT-12 |
| Capacity | Ø320mm |
| Weight (kg) | 150 |
| Weight (m3) | 0.120 |
| Weight (Freight) | 150 |
| Dimensions (cm) | 62 x 49 x 39.5 |
Product Brochure
This Product Is No Longer Available

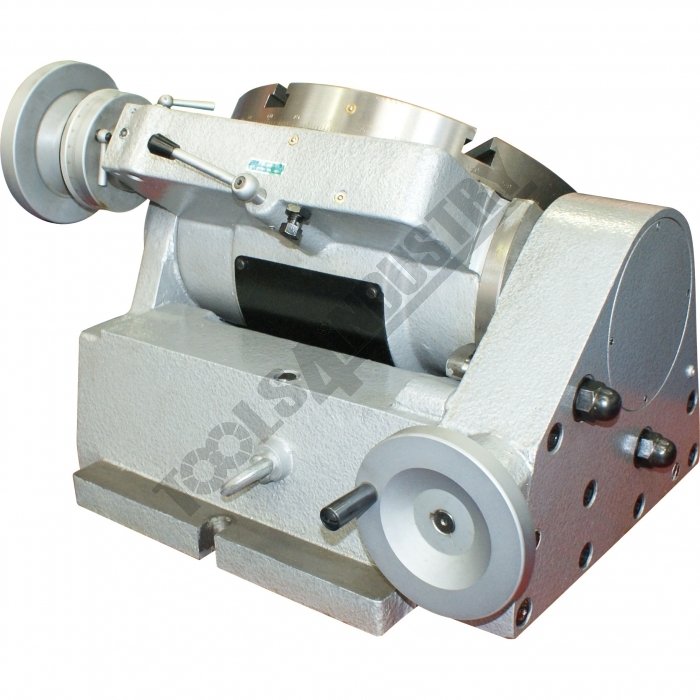

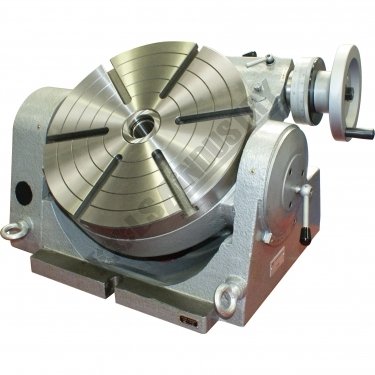

Tilting Rotary Table TRT-12 Ø320mm
Features
- An accurately designed rotary table for milling, boring and other machining operations
- The table allows for indexing, and other operations to be carried out rapidly with precision
- Low profile design minimises machine capacity losses without sacrificing work load capacity
- Tilting range from 0 - 90 degrees from the horizontal to vertical position and locked
- T-slots are machine to accept standard tee nuts
- One spindle rotation of the handle is equal to 3 degrees
- Accuracy of the tilting operation is 2 minutes
- 10 second vernier scale on table
- Table dial graduations 1 minute
- Worm ratio is 90:1
- Includes dividing plates
Optional Accessories
- Optional tailstock to suit CODE: R015

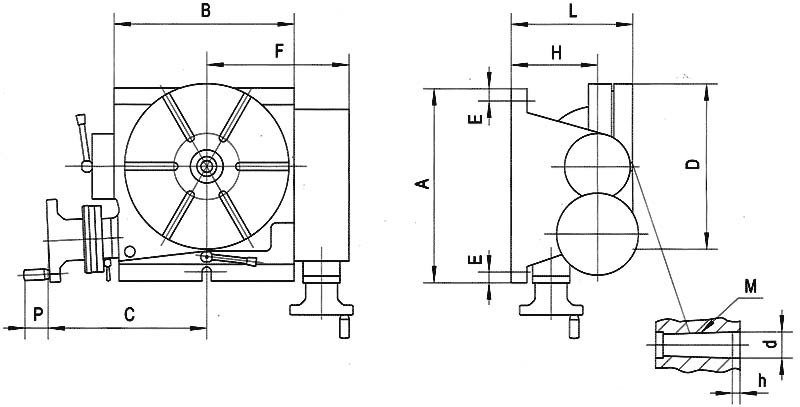

Specifications
- Compare 5 Products
- ORDER CODE
- MODEL
- Sizemm
- Amm
- Bmm
- Cmm
- Dmm
- Emm
- Fmm
- Hmm
- Lmm
- MMT
- Pmm
- d (lowercase)mm
- h (lowercase)mm
- T-Slot Sizemm
- Worm Ratio
| ORDER CODE | TRT-12 |
|---|---|
| MODEL | 320 |
| Sizemm | 380 |
| Amm | 322 |
| Bmm | 252 |
| Cmm | Ø320 |
| Dmm | 16 |
| Emm | 241 |
| Fmm | 175 |
| Hmm | 255 |
| Lmm | MT4 |
| MMT | 40 |
| Pmm | Ø40 |
| d (lowercase)mm | 10 |
| h (lowercase)mm | 14 |
| T-Slot Sizemm | 90:1 |
| Worm Ratio |
