This Product Is No Longer Available

Code	R003
Model	TRT-4C
Capacity	Ø110mm Chuck
Weight (kg)	9
Weight (m³)	0.005
Weight (Freight)	9
Dimensions (cm)	20 x 15 x 16

HAFCO

1 Year Warranty

Product Brochure

This Product Is No Longer Available

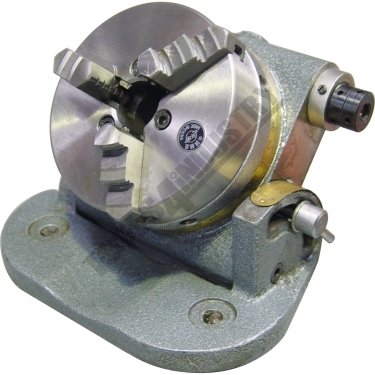

Tilting Rotary Table Chuck TRT-4C Ø110mm Chuck

Description

This small Tilting Rotary Table is manufactured from close grain cast iron and is suitable for small hobby mills

Features

110mm diameter 3-jaw self-centring chuck with 25mm bore
One set of Jaws supplied with chuck, which are reversible
Tilts from 0º horizontal to 90º vertical and is graduated in 1º increments
Chuck rotation is graduated 360º in 1º increments
94-1 gear ratio which can be disengaged for quick indexing work
Weigh's 9kg

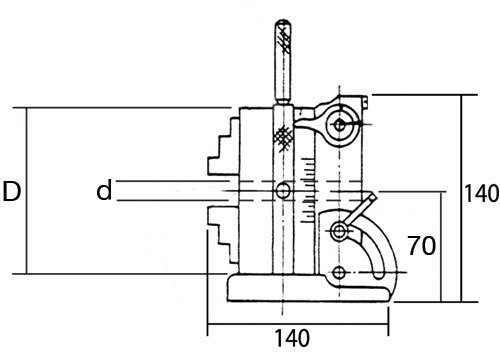

Specifications

Compare 5 Products
ORDER CODE
MODEL
Sizemm
Amm
Bmm
Cmm
Dmm
Emm
Fmm
Hmm
Lmm
MMT
Pmm
d (lowercase)mm
h (lowercase)mm
T-Slot Sizemm
Worm Ratio

R003
TRT-4C
110
~
~
~
Ø110
~
~
~
~
~
~
Ø25
~
~
94:1

R0014
TRT-4
100
~
~
~
Ø100
~
~
~
~
~
~
~
~
8
36:1

R026
TRT-8
200
296
213
186
Ø200
14
175.5
120
180
MT3
40
Ø30
6
12
90:1

R027
TRT-10
250
310
252
235
Ø250
14
199
140
205
MT3
40
Ø30
6
12
90:1

R028
TRT-12
320
380
322
252
Ø320
16
241
175
255
MT4
40
Ø40
10
14
90:1

ORDER CODE	TRT-4C
MODEL	110
Sizemm	~
Amm	~
Bmm	~
Cmm	Ø110
Dmm	~
Emm	~
Fmm	~
Hmm	~
Lmm	~
MMT	~
Pmm	Ø25
d (lowercase)mm	~
h (lowercase)mm	~
T-Slot Sizemm	94:1
Worm Ratio
