This Product Is No Longer Available

Code	L0645
Model	TNMG 160408-6G
Capacity	Grade V122
Weight (kg)	0.02
Weight (m³)	0.000
Weight (Freight)	0.02
Dimensions (cm)	9.8 x 4 x 1.1

KYOCERA

Product Brochure

This Product Is No Longer Available

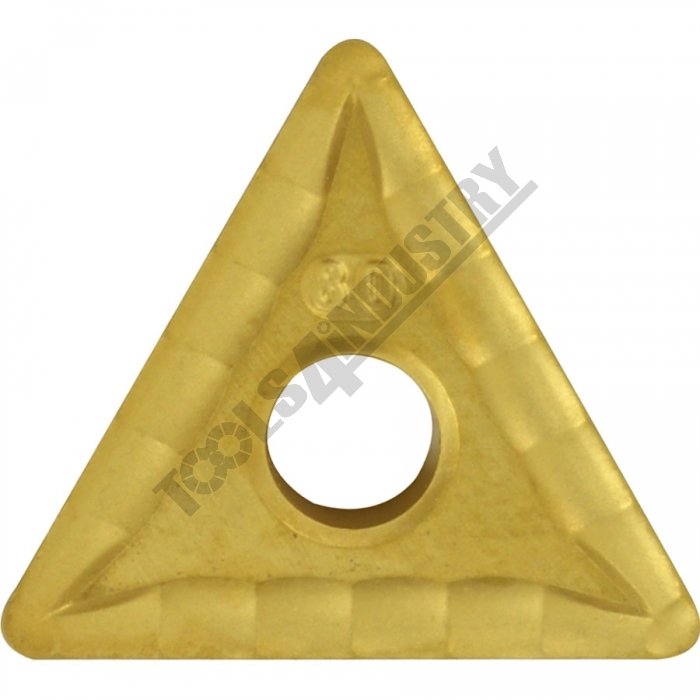

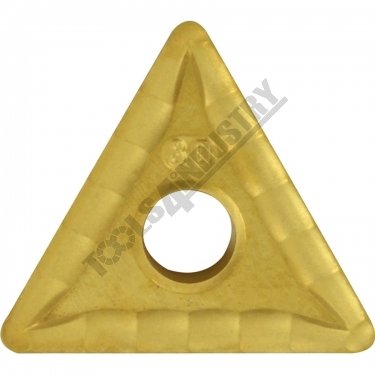

Carbide Inserts - Turning TNMG 160408-6G Grade V122

Description

INDEXABLE INSERTS
VANDURIT CARBIDE is manufactured in Italy

Features

Grade V122 - General purpose for finishing and medium roughing on steels, stainless steels and cast iron (Coated)

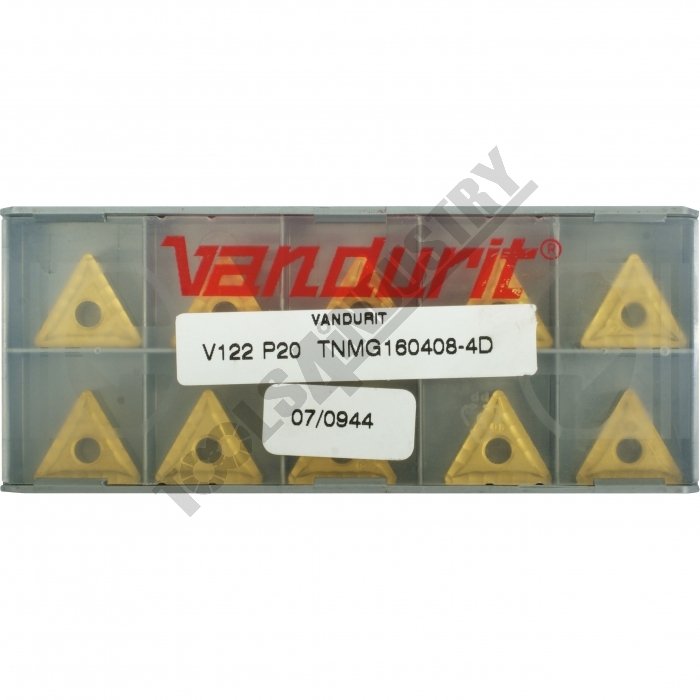

10 Inserts Per Pack

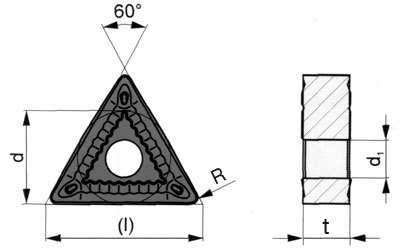

Specifications

Compare 25 Products
ORDER CODE
MODEL
Grade
Application
Pieces in SetNo.
I.C.mm
Thickness (S)mm
Hole Diameter Ø (D1)mm
Corner Radius (RE)mm
Relief AngleDeg
dmm
Insert shape
Use Classification
Clearance Angle

L0645
TNMG 1604086G
V222
~
10
16.5
4.76
3.81
0.80
~
9.525
~
~
~

L009A
Suits 12mm Lathe Set
~
General Purpose Steel
9
~
~
~
~
~
~
~
~
~

L0098
Suits 12mm Lathe Set
~
General Purpose Steel
10
~
~
~
~
~
~
~
~
~

L007A
Suits 16mm Lathe Set
~
General Purpose Steel
7
~
~
~
~
~
~
~
~
~

L0078
Suits 16mm Lathe Set
~
General Purpose Steel
10
~
~
~
~
~
~
~
~
~

L011A
Suits 20mm Lathe Set
~
General Purpose Steel
7
~
~
~
~
~
~
~
~
~

L060
CCMT 060204GK
CA125P
General Purpose Steel
10
6.35
2.38
2.8
0.4
7°
~
~
~
~

L060A
CCMT 9T304GK
CA125P
General Purpose Steel
10
9.525
3.97
4.4
0.40
7°
~
~
~
~

L0615
TCMT 090204HQ
CA525
General Purpose Steel
10
5.56
2.38
2.5
0.4
7°
~
~
~
~

L0515
SCMT09T304HQ
CA125P
Finishing to Medium
10
9.525
3.97
4.4
0.4
7°
~
~
~
~

L0517
SNMG120404HQ
CA125P
Roughing
10
12.7
4.76
5.16
0.4
~
~
~
~
~

L0519
VCMT110304HQ
CA125P
General Purpose Steel
10
6.35
3.18
2.75
0.4
7°
~
~
~
~

L0521
VCMT160404HQ
CA125P
General Purpose Steel
10
9.53
4.76
4.4
0.4
7°
~
~
~
~

L0525
RCMT10T3M0TN15
TN15
Finishing Medium
10
~
3.97
~
~
7°
Ø10mm
R - Round
Continuous Slight Interruption
Positive

L062
TCMT 110204HQ
CA125P
General Purpose Steel
10
11.0
2.38
2.80
0.40
~
6.35
~
~
~

L054
TCMT 16T304HQ
CA525
General Purpose Steel
10
16.5
3.97
4.10
0.40
~
9.35
~
~
~

L061
TPMR 110304
CA125P
General Purpose Steel
10
11.0
3.18
~
0.40
~
6.35
~
~
~

L063
TPMR 160308
CA125P
General Purpose Steel
10
16.5
3.17
~
0.80
~
9.52
~
~
~

L0644
TNMG 160404HQ
CA115P
Finishing Steel
10
16.5
4.76
3.81
0.40
~
9.525
~
~
~

L064
TNMG 160408PS
CA125P
General Purpose Steel
10
16.5
4.76
3.81
0.80
~
9.525
~
~
~

L0648
TNMG 160408MS
CA6525
Stainless Steel
10
16.5
4.76
3.81
0.80
~
9.525
~
~
~

L0602
CNMG120408PS
CA125P
General Purpose Steel
10
12.7
4.76
5.16
0.80
~
12.7
~
~
~

L053
WNMG 080408PS
CA125P
General Purpose Steel
10
8.7
4.76
5.16
0.8
~
12.7
~
~
~

L0534
WNMG 080404HQ
CA115P
Finishing Steel
10
8.7
4.76
5.16
0.4
~
12.7
~
~
~

L0538
WNMG 080408MS
CA6525
Stainless Steel
10
8.7
4.76
5.16
0.8
~
12.7
~
~
~

ORDER CODE	TNMG 1604086G
MODEL	V222
Grade	~
Application	10
Pieces in SetNo.	16.5
I.C.mm	4.76
Thickness (S)mm	3.81
Hole Diameter Ø (D1)mm	0.80
Corner Radius (RE)mm	~
Relief AngleDeg	9.525
dmm	~
Insert shape	~
Use Classification	~
Clearance Angle

Recommended Accessories

L044

Right Hand Turning Tool Holder
MTJNR-1616-H16
16mm Tool Height
Insert tip not included

Code: L044

L045

Left Hand Turning Tool Holder
MTJNL-1616-H16
16mm Tool Height
Insert tip not included

Code: L045

L046

Right Hand Turning Tool Holder
WTJNR-2020-K16
20mm Tool Height
Insert tip not included

Code: L046

L047

Left Hand Turning Tool Holder
WTJNL-2020-K16
20mm Tool Height
Insert tip not included

Code: L047

L048

Right Hand Turning Tool Holder
WTJNR-2525-M16
25mm Tool Height
Insert tip not included

Code: L048

L049

Left Hand Turning Tool Holder
WTJNL-2525-M16
25mm Tool Height
Insert tip not included

Code: L049

L024

Right Hand Boring Bar
S25T-MTUN-16A
Ø25mm
Insert tip not included

Code: L024
