L049 Left Hand Turning Tool Holder WTJNL2525M16
Left Hand Turning Tool Holder

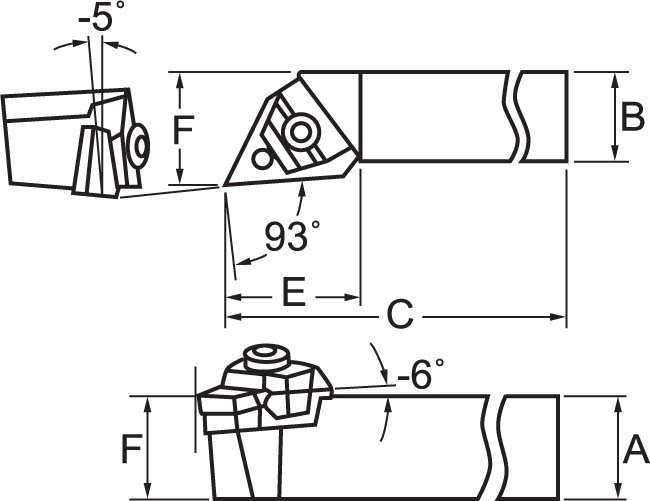

Side ViewTop View
TOOLMASTER LOGO
Code:L049
Model:WTJNL2525M16
Capacity:25mm
Weight (Nett):0.82 Kg
Weight (Cubic):0.000 m3
Weight (Freight):0.82 Kg
Dimensions:15.6 x 4 x 4
In Stock:Yes
Instruction Sheets

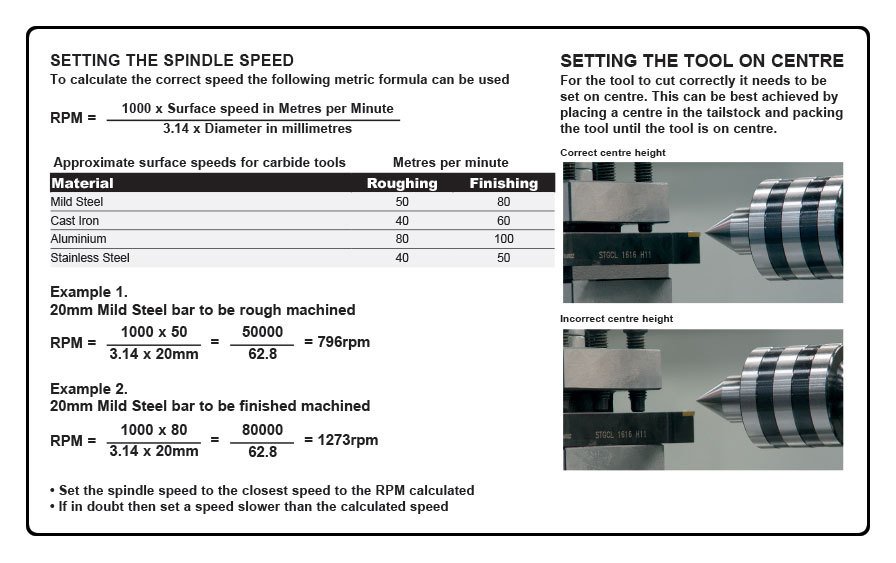

Technical Information [160.95 KB]

Left Hand Turning Tool Holder

Description
Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.

NOTE: Inserts not included with tool holders

Use insert TNMG 160408 (L064)

Features
- Negative rake turning tool holder with 93ยบ approach angle
- Suitable for rapid metal removal
- Left hand tool holder suitable for facing operations

Array
(
    [0] => L012
    [1] => L0121
    [2] => L0122
    [3] => L0123
    [4] => L015
    [5] => L016
    [8] => L017
    [9] => L018
    [15] => L039
    [16] => L040
    [20] => L041
    [21] => L042
    [12] => L044
    [13] => L045
    [14] => L046
    [17] => L047
    [18] => L048
    [19] => L049
    [6] => L400
    [7] => L401
    [10] => L404
    [11] => L405
)

All Sorts: Array
(
    [0] => L012
    [1] => L0121
    [2] => L0122
    [3] => L0123
    [4] => L015
    [5] => L016
    [6] => L017
    [7] => L018
    [8] => L039
    [9] => L040
    [10] => L041
    [11] => L042
    [12] => L044
    [13] => L045
    [14] => L046
    [15] => L047
    [16] => L048
    [17] => L049
    [18] => L400
    [19] => L401
    [20] => L404
    [21] => L405
)

All Codes +  All Sorts: Array
(
    [L012] => L012
    [L0121] => L0121
    [L0122] => L0122
    [L0123] => L0123
    [L015] => L015
    [L016] => L016
    [L017] => L017
    [L018] => L018
    [L039] => L039
    [L040] => L040
    [L041] => L041
    [L042] => L042
    [L044] => L044
    [L045] => L045
    [L046] => L046
    [L047] => L047
    [L048] => L048
    [L049] => L049
    [L400] => L400
    [L401] => L401
    [L404] => L404
    [L405] => L405
)

Current: 14
Max: 18
Back: -1
Next: 1
First: L048
Second: L049
Third: L400
Fourth: L401
CODESizeHandStyleABCEF
L01512mmRightSTGC12mm12mm100mm~16mm
L01612mmLeftSTGC12mm12mm100mm~16mm
L01716mmRightSTGC16mm16mm100mm~20mm
L01816mmLeftSTGC16mm16mm100mm~20mm
L03920mmRightWTJN20mm20mm125mm~25mm
L04020mmLeftWTJN20mm20mm125mm~25mm
L04125mmRightWTJN25mm25mm150mm~32mm
L04225mmLeftWTJN25mm25mm150mm~32mm
L04416mmRightMTJN16mm16mm100mm30mm20mm
L04516mmLeftMTJN16mm16mm100mm30mm20mm
L04620mmRightWTJN20mm20mm125mm32mm20mm
L04720mmLeftWTJN20mm20mm125mm32mm20mm
L04825mmRightWTJN25mm25mm150mm32mm25mm
L04925mmLeftWTJN25mm25mm150mm32mm25mm
L40012mmRightCTGP12mm12mm80mm20mm16mm
L40112mmLeftCTGP12mm12mm80mm20mm16mm
L40416mmRightCTGP16mm16mm100mm20mm20mm
L40516mmLeftCTGP16mm16mm100mm20mm20mm

Recommended Accessories

L064 - TNMG 160408 Turning Insert 16.5mm (Grade CA5525)
L527 - Seat to Suit Tool Holders
L528 - Pin to Suit WTJN Tool Holders
L529 - Clamp to Suit WTJN Tool Holders
L530 - Tool Holder - Clamp Screw
