This Product Is No Longer Available
| Code | D455 |
|---|---|
| Capacity | Suits Ø19mm Drill Chucks |
| Weight (kg) | 0.74 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.74 |
| Dimensions (cm) | 16 x 3.5 x 3.5 |
Product Brochure
This Product Is No Longer Available

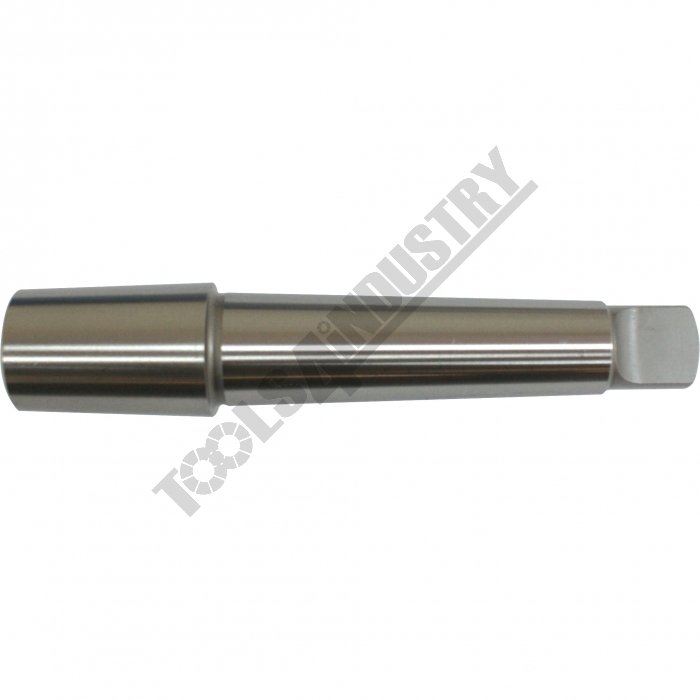

3MT x JT4 Drill Chuck Arbor Suits Ø19mm Drill Chucks
Description
Drill chuck arbors have one end which is the taper of the machine. The most common are Morse Tapers for mounting in a drill press spindle or lathe, or NT tapers for mounting in Milling machines. The other end of the arbor is a short taper called a Jacobs Taper that is driven into the taper of the chuck body. The JT taper or Jacobs Taper is the most commonly used taper for mounting a drill chuck. The most common tapers used in Australia are JT2, JT3, JT4 & JT6Features
- Hardened & precision ground
Specifications
- Compare 18 Products
- ORDER CODE
- Long TaperMT
- Short TaperJT
- Suits Chuck Sizemm
- Threaded Shank
- D455
- 3MT
- JT4
- 19
- ~
- D454
- 4MT
- JT6
- 13
- ~
- D454A
- 4MT
- JT3
- 16
- ~
- D456
- 4MT
- JT4
- 19
- ~
- D444
- R8
- JT6
- 13
- 7/16" UNF
- D445
- R8
- JT3
- 16
- 7/16" UNF
- D450
- NT30
- JT6
- 13
- M12
- D451
- NT30
- JT3
- 16
- M12
- D446
- NT40
- JT6
- 13
- M16
- D448
- NT40
- JT3
- 16
- M16
- D4412
- 2MT
- JT2
- 10
- ~
- D440
- 1MT
- JT6
- 13
- ~
- D442
- 2MT
- JT6
- 13
- ~
- D442A
- 2MT
- JT3
- 16
- ~
- D443
- 3MT
- JT6
- 13
- ~
- D4436
- 3MT
- JT6
- 13
- 1/2" BSW
- D443A
- 3MT
- JT3
- 16
- ~
- D4433
- 3MT
- JT3
- 16
- 1/2 Whitworth
| ORDER CODE | 3MT |
|---|---|
| Long TaperMT | JT4 |
| Short TaperJT | 19 |
| Suits Chuck Sizemm | ~ |
| Threaded Shank |
