D451 Drill Chuck Arbor NT30 - JT3


Code:	D451
Model:	NT30 - JT3
Capacity:	Suits 16mm Chucks
Weight (Nett):	0.5 Kg
Weight (Cubic):	0.000 m³
Weight (Freight):	0.5 Kg
Dimensions:	12.7 x 5.2 x 5.8
In Stock:	Yes

Drill Chuck Arbor

Description

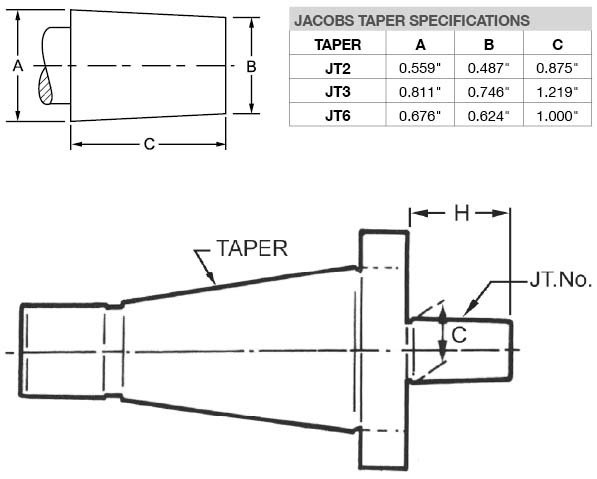

Drill chuck arbors have one end which is the taper of the machine. The most common are Morse Tapers for mounting in a drill press spindle or lathe, or NT tapers for mounting in Milling machines. The other end of the arbor is a short taper called a Jacobs Taper that is driven into the taper of the chuck body. The JT taper or Jacobs Taper is the most commonly used taper for mounting a drill chuck. The most common tapers used in Australia are JT2, JT3, JT4 and JT6

Features
- Precision ground with M12 drawbar thread

Array
(
    [0] => D4412
    [1] => D442
    [2] => D442A
    [3] => D443
    [5] => D4433
    [7] => D4436
    [4] => D443A
    [11] => D444
    [12] => D445
    [15] => D446
    [16] => D448
    [13] => D450
    [14] => D451
    [8] => D454
    [9] => D454A
    [6] => D455
    [10] => D456
)

All Sorts: Array
(
    [0] => D4412
    [1] => D442
    [2] => D442A
    [3] => D443
    [4] => D4433
    [5] => D4436
    [6] => D443A
    [7] => D444
    [8] => D445
    [9] => D446
    [10] => D448
    [11] => D450
    [12] => D451
    [13] => D454
    [14] => D454A
    [15] => D455
    [16] => D456
)

All Codes +  All Sorts: Array
(
    [D4412] => D4412
    [D442] => D442
    [D442A] => D442A
    [D443] => D443
    [D4433] => D4433
    [D4436] => D4436
    [D443A] => D443A
    [D444] => D444
    [D445] => D445
    [D446] => D446
    [D448] => D448
    [D450] => D450
    [D451] => D451
    [D454] => D454
    [D454A] => D454A
    [D455] => D455
    [D456] => D456
)

Current: 13
Max: 17
Back: -1
Next: 1
First: D450
Second: D451
Third: D454
Fourth: D454A

CODE	Long Taper	Short Taper	Suits Chuck Size	Threaded Shank
D4412	2MT	JT2	10mm	~
D442	2MT	JT6	13mm	~
D442A	2MT	JT3	16mm	~
D443	3MT	JT6	13mm	~
D4433	3MT	JT3	~	1/2' Whitworth
D4436	3MT	JT6	~	1/2' Whitworth
D443A	3MT	JT3	16mm	~
D444	R8	JT6	13mm	7/16"
D445	R8	JT3	16mm	7/16"
D446	NT40	JT6	13mm	M16
D448	NT40	JT3	16mm	M16
D450	NT30	JT6	13mm	M12
D451	NT30	JT3	16mm	M12
D454	4MT	JT6	13mm	~
D454A	4MT	JT3	16mm	~
D455	3MT	JT4	19mm	~
D456	4MT	JT4	19mm	~
