This Product Is No Longer Available
| Code | D177A |
|---|---|
| Model | GHD-32 |
| Capacity | Ø40mm Drilling Capacity |
| Weight (kg) | 320 |
| Weight (m3) | 1.539 |
| Weight (Freight) | 512.487 |
| Dimensions (cm) | 90 x 90 x 190 |

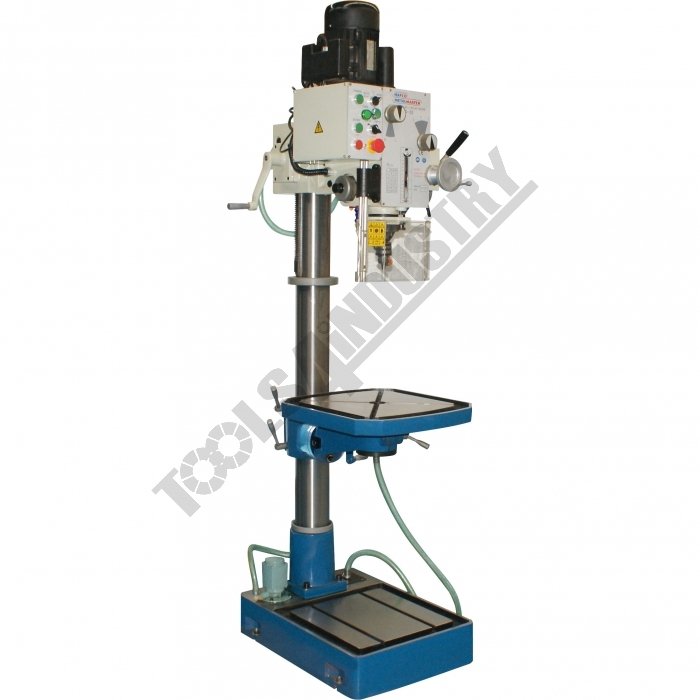

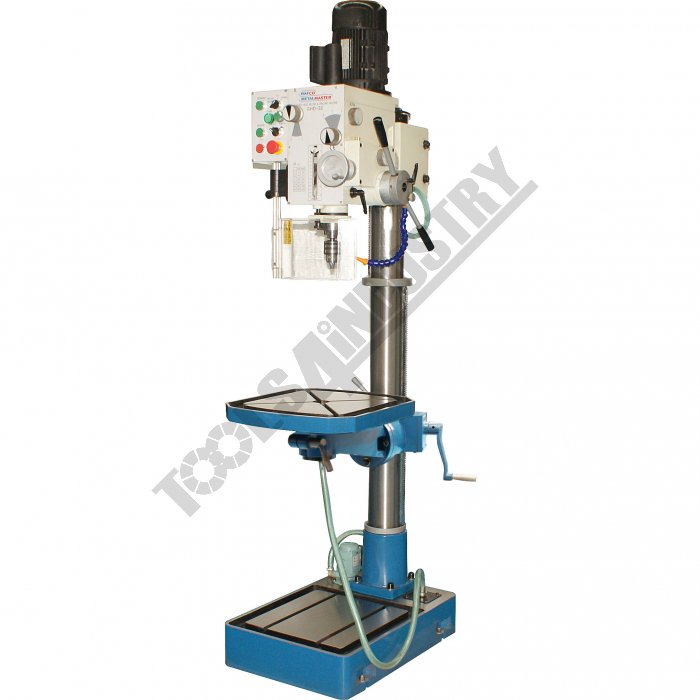

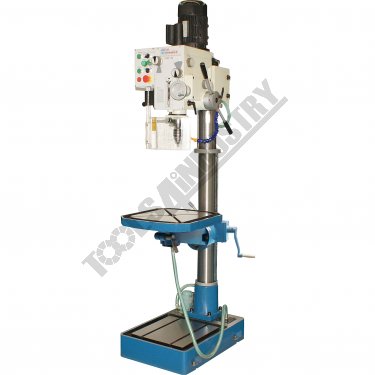

Industrial 4MT Geared Head Drilling Machine GHD-32 Ø40mm Drilling Capacity
Features
- Ideal for industrial workshop use

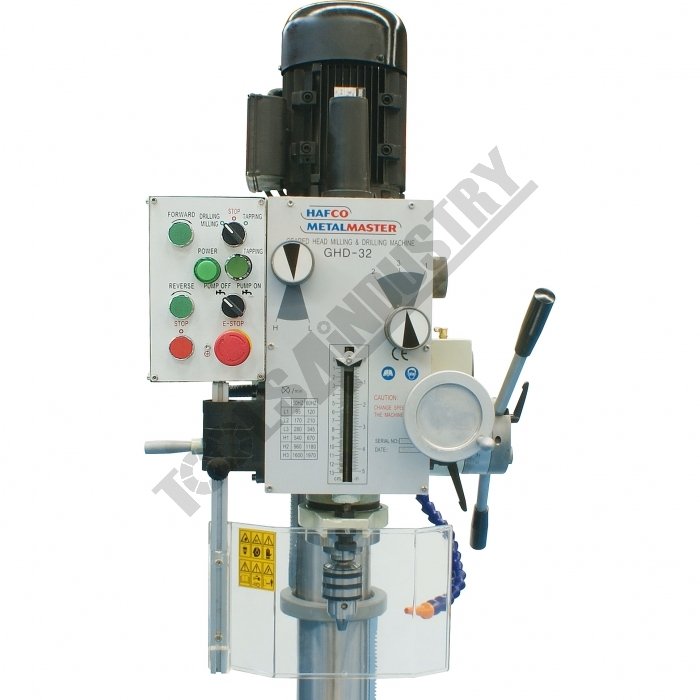

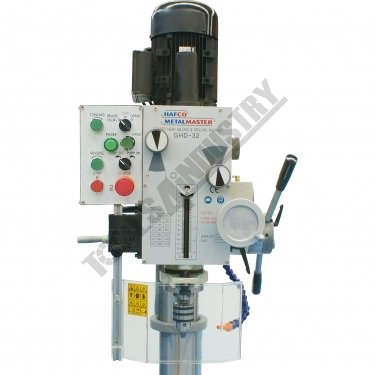

- 4MT geared head machine
- Thread tapping with auto reverse

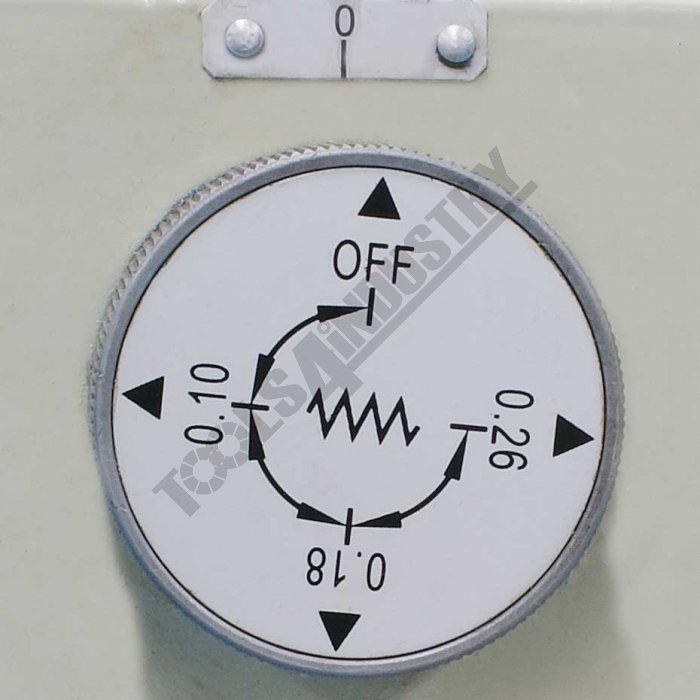

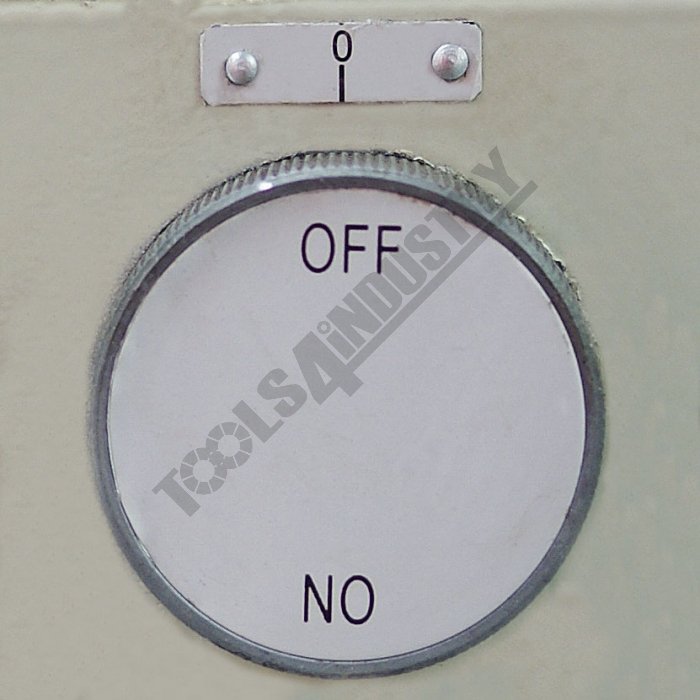

- Automatic feed range (0.1, 0.18, 0.26mm/rev)

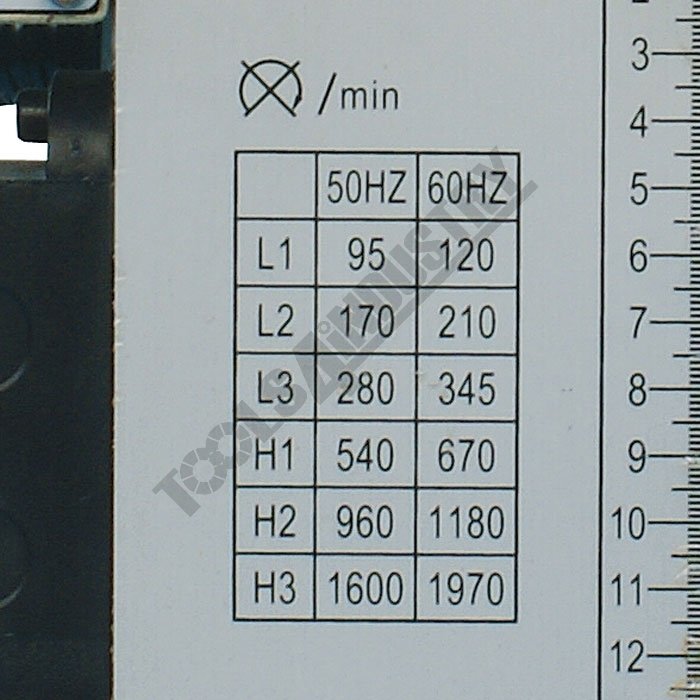

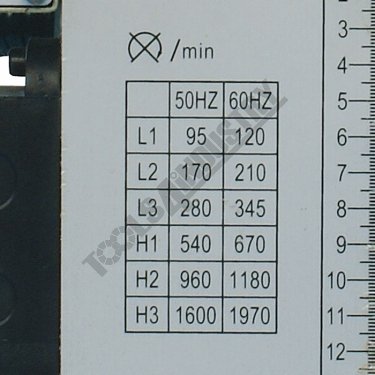

- 6 drilling speeds 95-1600rpm, 415V motor

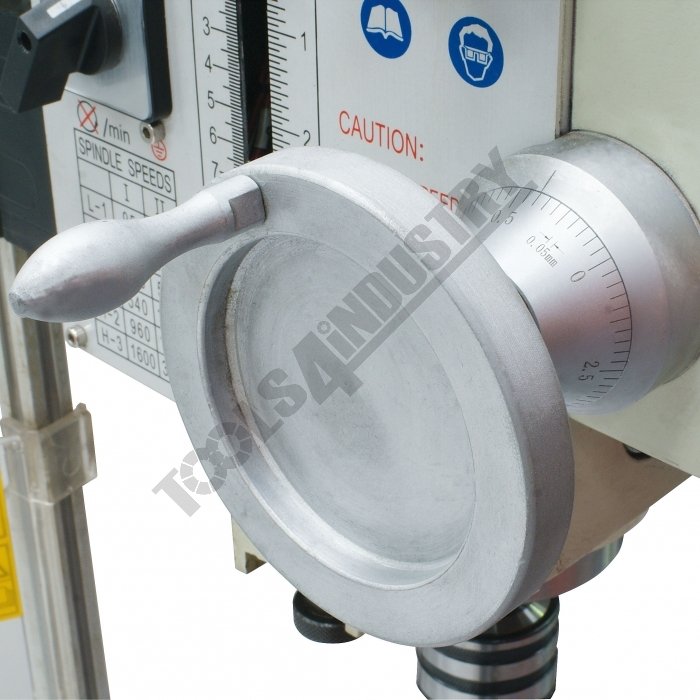

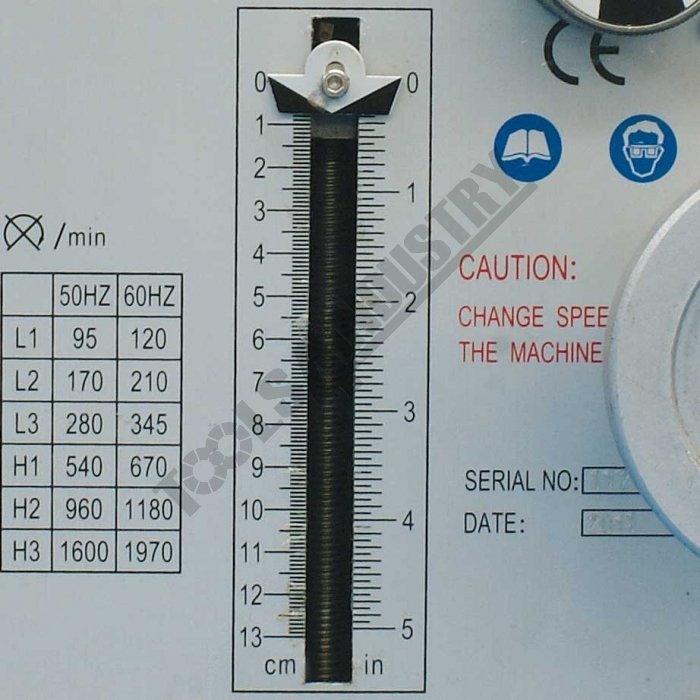

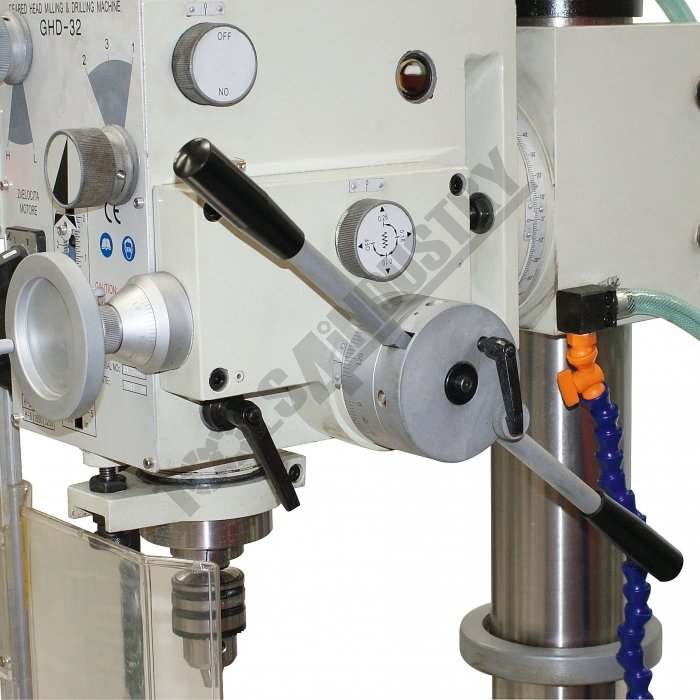

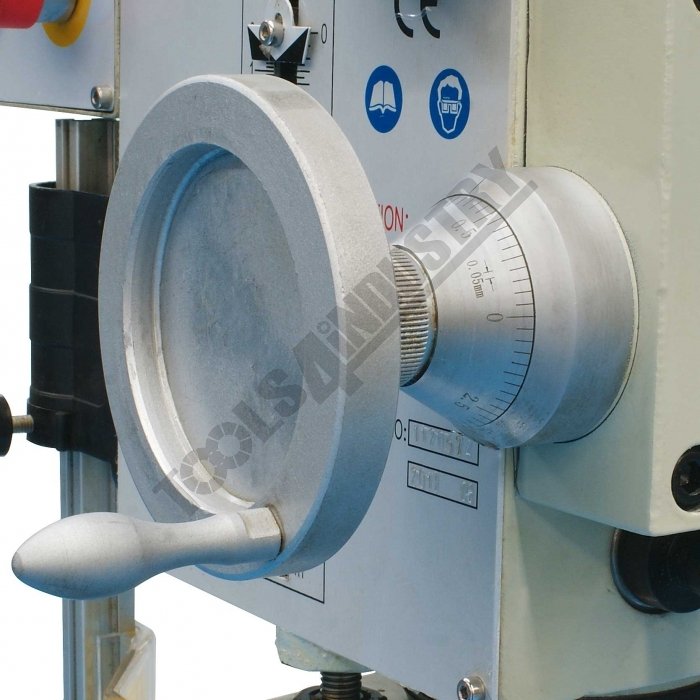

- Micro down feed adjustment

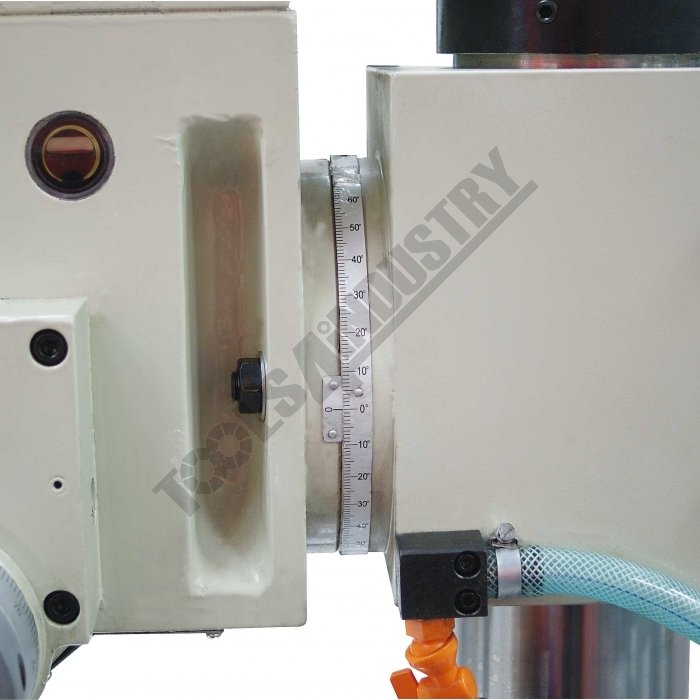

- Tilting / swivel head ±90º

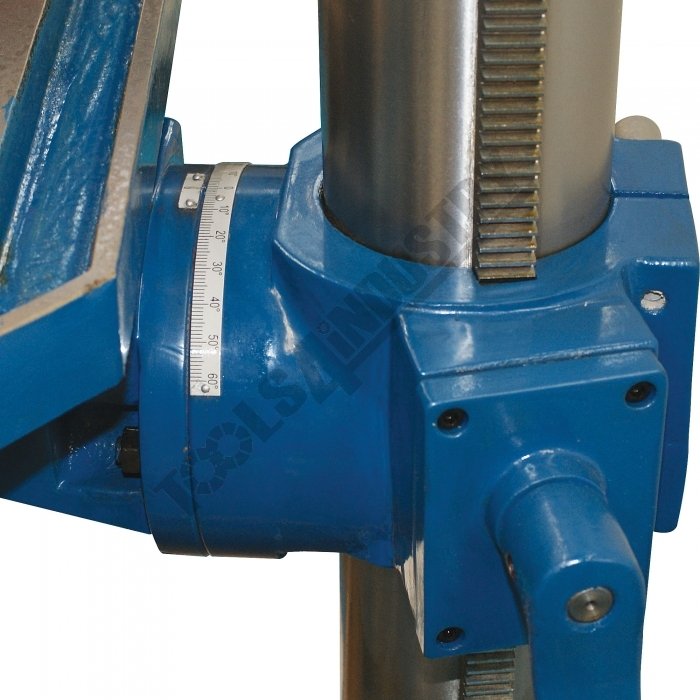

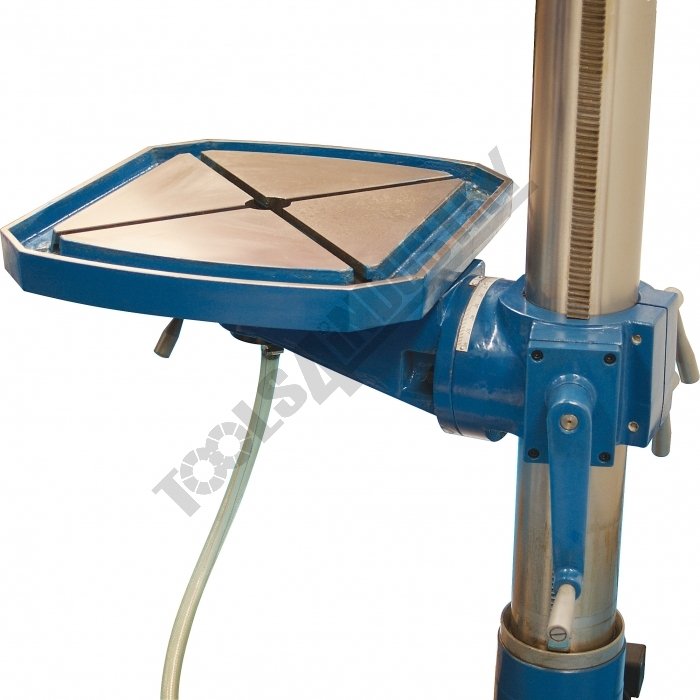

- Tilting & rotating rectangle work table

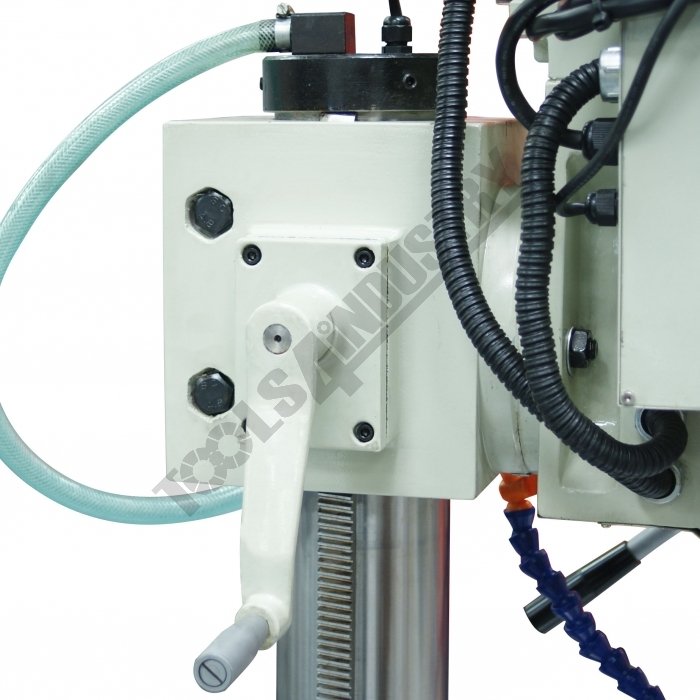

- Rack & pinion table & drill head
- Adjustable accurate depth setting for increased productivity

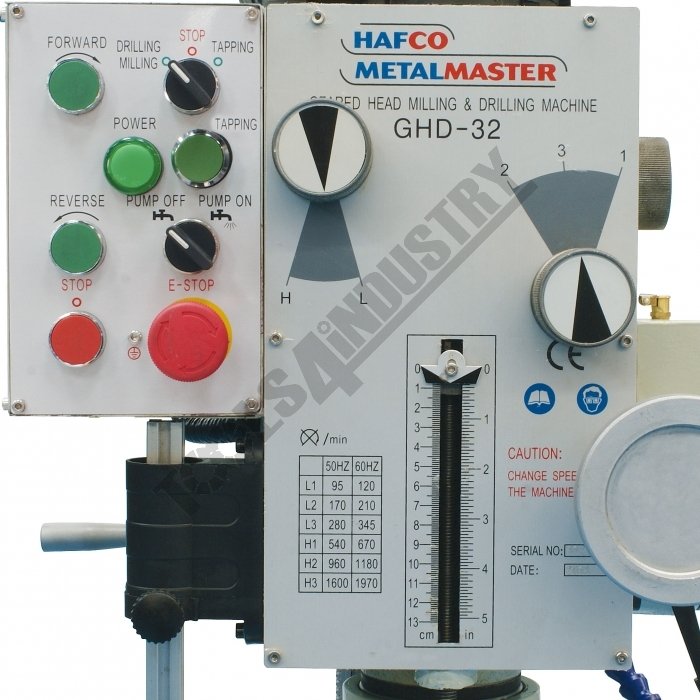

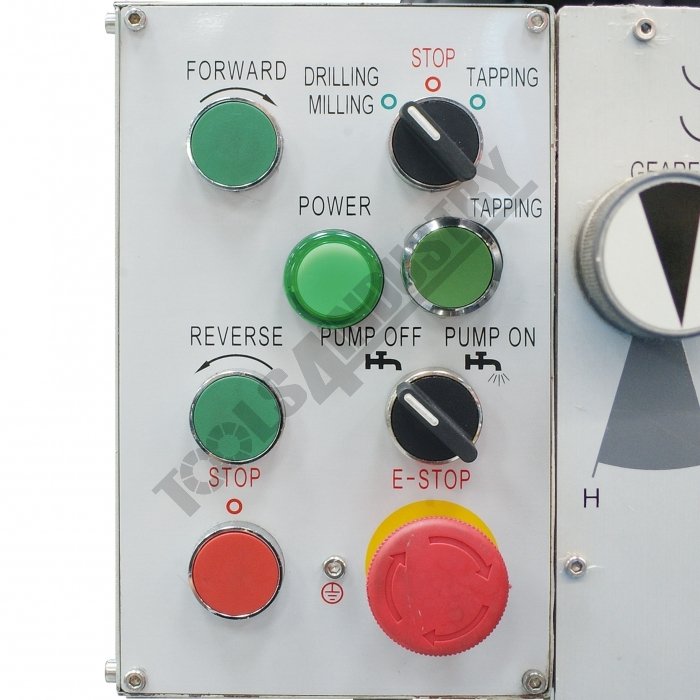

- Forward/reverse & safety stop switches

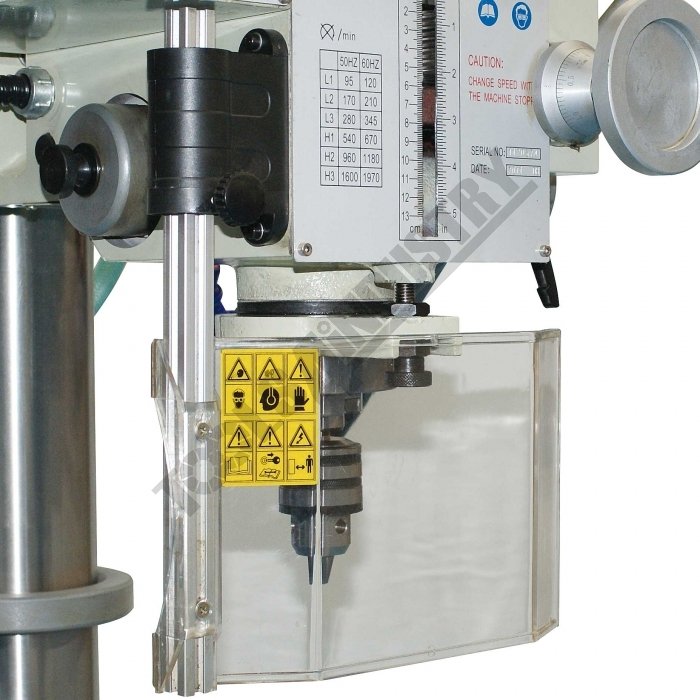

- Swivel safety drilling chuck guard

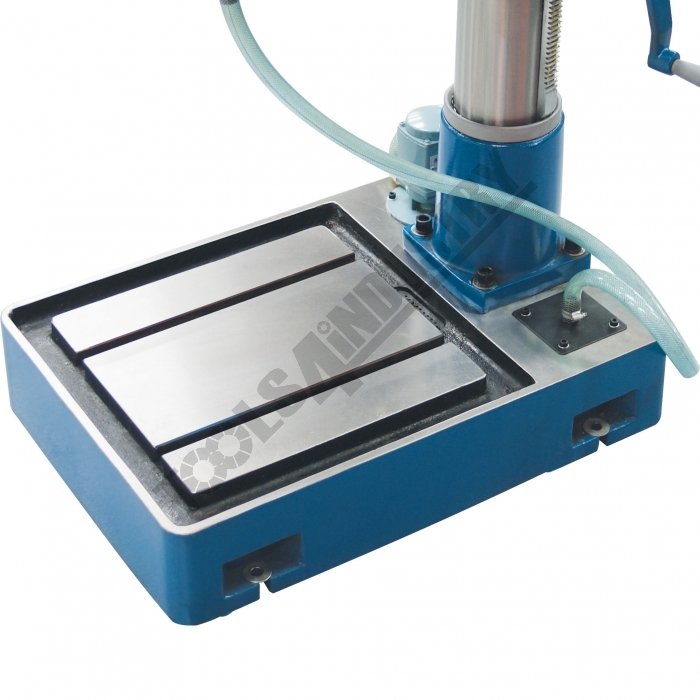

- T slotted work table and base
- Includes coolant pump system & drill chuck
Includes

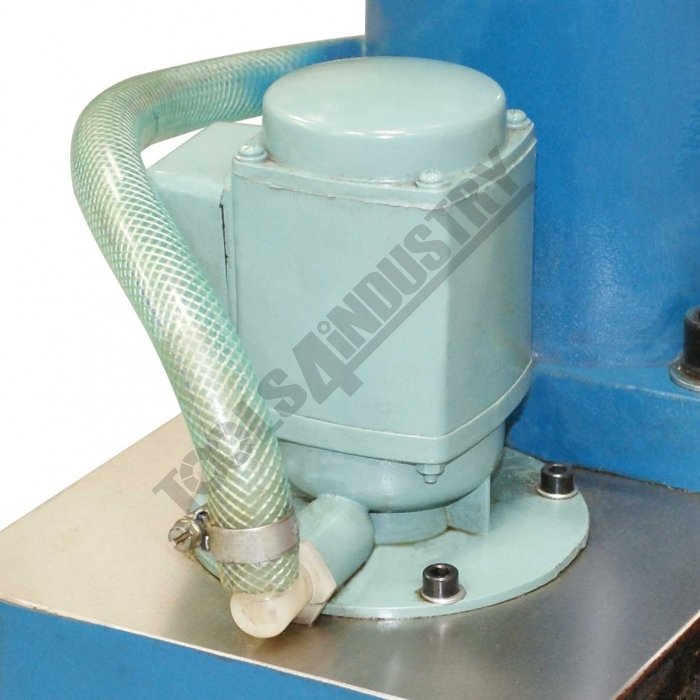

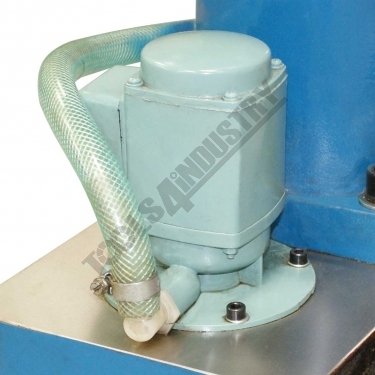

- Coolant pump system

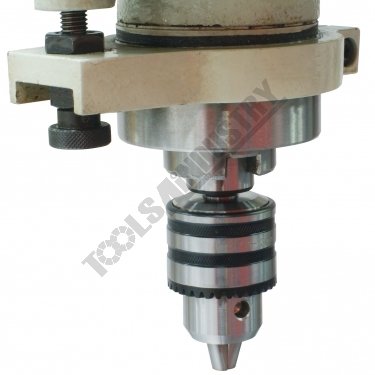

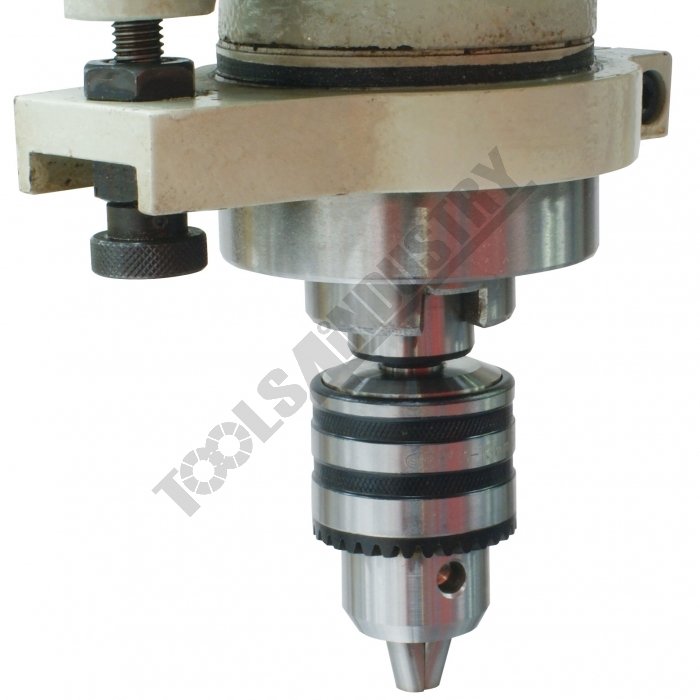

- Keyed drill chuck and arbor
- Chuck key to suit
- Drill drift tool to remove drill chuck or taper shank drills
- Interlocked spindle safety guard
- Drawbar
Specifications
- Compare 16 Products
- ORDER CODE
- MODEL
- Drilling Capacitymm
- Thread Tapping CapacityMetric
- Spindle TaperMT
- Spindle Travelmm
- Throat Depthmm
- Quill Diametermm
- Column Diametermm
- Spindle To Tablemm
- Spindle To Basemm
- TableType
- Table Sizemm
- T-Slot Sizemm
- Automatic Quill Feedmm/rev
- Work LightIncludes
- Coolant SystemIncludes
- Spindle Speed StepsNo.
- Spindle Speed Rangerpm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Full Heightmm
- Nett Weightkg
- D177A
- GHD-32
- Ø40
- M16
- 4
- 120
- 273
- 75
- 115
- 720
- 1175
- Rectangle
- 490 x 460
- 14
- 0.1, 0.18, 0.26
- ~
- Yes
- 6
- 95 ~ 1600
- 1.5 / 2
- 240 / 10
- 1890
- 320
- D132
- GHD-38A
- Ø40
- M24
- 4
- 180
- 350
- 75
- 150
- 780
- 1320
- Square
- 560 x 560
- 18
- 0.1, 0.2
- Yes
- Yes
- 18
- 50 ~ 1450
- 1.5 / 2
- 415
- 2220
- 550
- D137
- GHD-45A
- Ø40
- M27
- 4
- 180
- 360
- 70
- 160
- 600
- 1200
- Rectangle
- 450 x 578
- 14
- 0.07, 0.15, 0.26, 0.40
- Yes
- Yes
- 12
- 42 ~ 2050
- 2.8 / 3.75
- 415
- 2330
- 680
- D134
- GHD-20A
- Ø31.5
- ~
- 3
- 140
- 220
- 60
- 100
- 630
- 1070
- Round
- 390
- 14
- 0.08, 0.16, 0.24
- ~
- Yes
- 8
- 100 ~ 2900
- 0.9 / 1.2
- 415
- 2000
- 408
- D182
- DMF-43
- Ø31.5
- M16
- 3
- 120
- 280
- 80
- 115
- 625
- 1200
- Rectangle, X & Y-Axis
- 600 x 190
- 12
- ~
- ~
- ~
- 12
- 75 ~ 3200
- 1.1 / 1.5
- 415
- 1990
- 350
- D182A
- DMF-43
- Ø31.5
- ~
- 3
- 120
- 280
- 80
- 115
- 625
- 1200
- Rectangle, X & Y-Axis
- 600 x 190
- 12
- ~
- ~
- ~
- 6
- 75 ~ 1600
- 1.1 / 1.5
- 240 / 10
- 1990
- 350
- D170
- GHD-22
- Ø31.5
- ~
- 3
- 120
- 255
- 55
- 100
- 830
- 1240
- Rectangle
- 350 x 500
- 14
- ~
- ~
- ~
- 8
- 105 ~ 2900
- 0.9 / 1.2
- 415
- 1800
- 220
- D171
- GHD-22A
- Ø25
- ~
- 3
- 125
- 255
- 60
- 100
- 830
- 1240
- Rectangle
- 350 x 500
- 14
- ~
- ~
- ~
- 8
- 105 ~ 2900
- 0.9 / 1.2
- 415
- 1800
- 220
- D176
- GHD-30V
- Ø31.5
- M20
- 3
- 125
- 285
- 62
- 115
- 790
- 1270
- Rectangle
- 426 x 400
- 14
- 0.06, 0.09, 0.12
- Yes
- Yes
- Variable (3 Steps)
- 50 ~ 2850
- 2.2 / 3
- 240 / 15
- 1940
- 344
- D177
- GHD-32
- Ø40
- M16
- 4
- 120
- 273
- 75
- 115
- 720
- 1175
- Rectangle
- 490 x 460
- 14
- 0.1, 0.18, 0.26
- ~
- Yes
- 12
- 95 ~ 3300
- 1.5 / 2
- 415
- 1890
- 320
- D1325
- GHD-38B
- Ø40
- M24
- 4
- 180
- 350
- 75
- 150
- 770
- 1320
- Square
- 560 x 560
- 16
- 0.1, 0.2
- Yes
- Yes
- 18
- 50 ~ 1450
- 1.5 / 2
- 415
- 2220
- 615
- D1325
- GHD-38B
- Ø40
- M24
- 4
- 180
- 350
- 75
- 150
- 770
- 1320
- Square
- 560 x 560
- 16
- 0.1, 0.2
- Yes
- Yes
- 18
- 50 ~ 1450
- 1.5 / 2
- 415
- 2220
- 615
- D174
- GHD-45G
- Ø45
- M35
- 4
- 180
- 350
- 70
- 150
- 70 ~ 730
- 1210
- Square
- 530 x 530
- 18
- 0.1, 0.15, 0.2
- Yes
- Yes
- 8
- 90 ~ 1520
- 2.2 / 3
- 415
- 2445
- 670
- D175
- GHD-55G
- Ø50
- M42
- 4
- 180
- 405
- 88
- 200
- 130 ~ 750
- 1300
- Square
- 600 x 600
- 18
- 0.1, 0.15, 0.2
- Yes
- Yes
- 16
- 45 ~ 2000
- 2.8 / 3.7
- 415
- 2500
- 930
- D178
- GHD-50
- Ø50
- M30
- 4
- 240
- 360
- 80
- 180
- 485
- 1095
- Rectangle
- 460 x 580
- 14
- 0.1, 0.2, 0.3, 0.40
- Yes
- Yes
- 12
- 52 ~ 1400
- 3 / 4
- 415
- 2350
- 710
- D181B
- DMF-42
- Ø31.5
- ~
- 3
- 120
- 250
- 75
- 115
- 780
- 1300
- Rectangle, X & Y-Axis
- 585 x 190
- 14
- ~
- ~
- ~
- 6
- 95 ~ 1600
- 1.1 / 1.5
- 240 / 10
- 2120
- 350
| ORDER CODE | GHD-32 |
|---|---|
| MODEL | Ø40 |
| Drilling Capacitymm | M16 |
| Thread Tapping CapacityMetric | 4 |
| Spindle TaperMT | 120 |
| Spindle Travelmm | 273 |
| Throat Depthmm | 75 |
| Quill Diametermm | 115 |
| Column Diametermm | 720 |
| Spindle To Tablemm | 1175 |
| Spindle To Basemm | Rectangle |
| TableType | 490 x 460 |
| Table Sizemm | 14 |
| T-Slot Sizemm | 0.1, 0.18, 0.26 |
| Automatic Quill Feedmm/rev | ~ |
| Work LightIncludes | Yes |
| Coolant SystemIncludes | 6 |
| Spindle Speed StepsNo. | 95 ~ 1600 |
| Spindle Speed Rangerpm | 1.5 / 2 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 1890 |
| Full Heightmm | 320 |
| Nett Weightkg |
