| Code | W795 |
|---|---|
| Model | OVS-JM |
| Capacity | Ø1/4 - 4" Sanding Sleeves |
| Weight (kg) | 145 |
| Weight (m3) | 0.482 |
| Weight (Freight) | 160.506 |
| Dimensions (cm) | 66 x 67 x 109 |

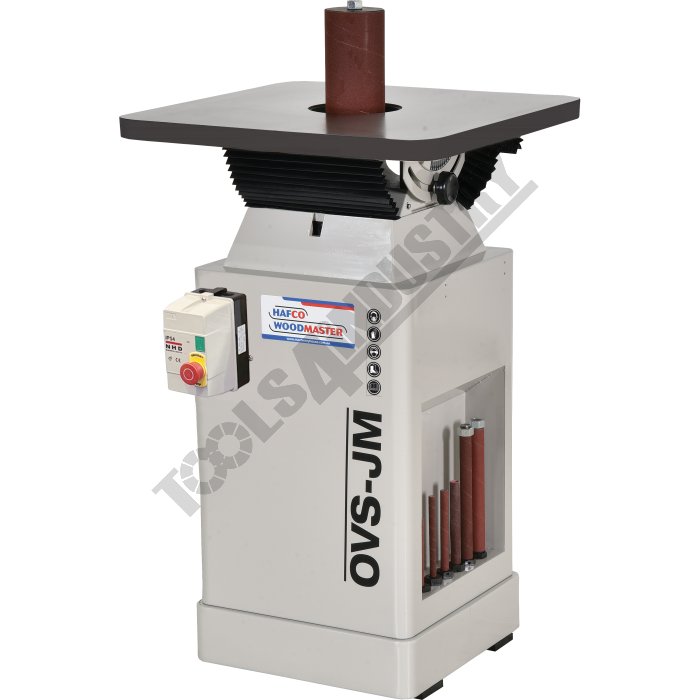

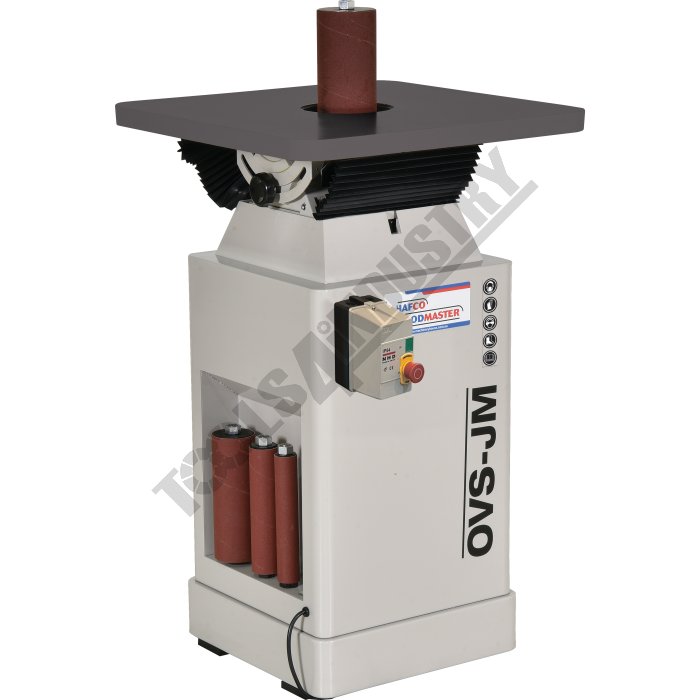

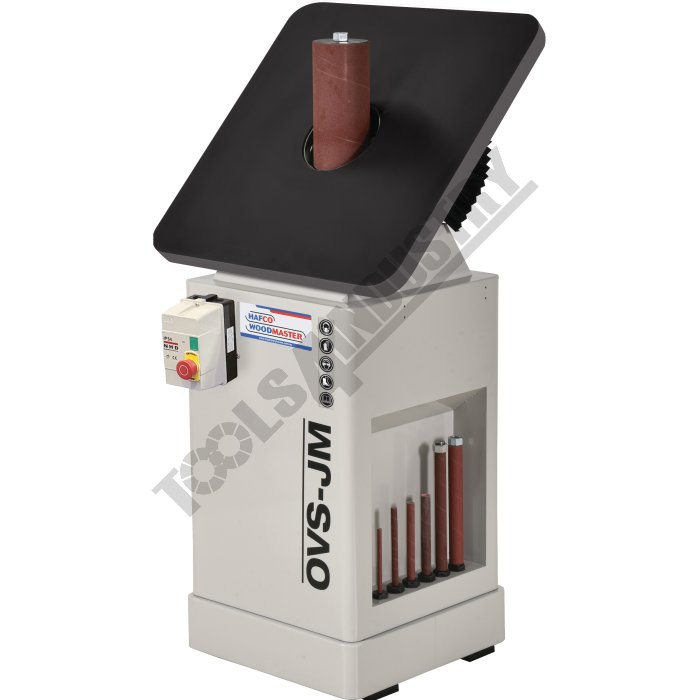

Vertical Oscillating Bobbin Sander with Cabinet Stand OVS-JM Ø1/4 - 4" Sanding Sleeves
Features
- Quality Taiwanese manufacture
- Used for sanding deep and wide work pieces, front edges, narrow inner curves, horizontal, vertical, diagonal, with or across the grain
- Rotating and oscillating action ensures exceptional finishing results
- Precision ground cast iron tilting table 609 x 609mm
- Heavy gauge steel frame construction

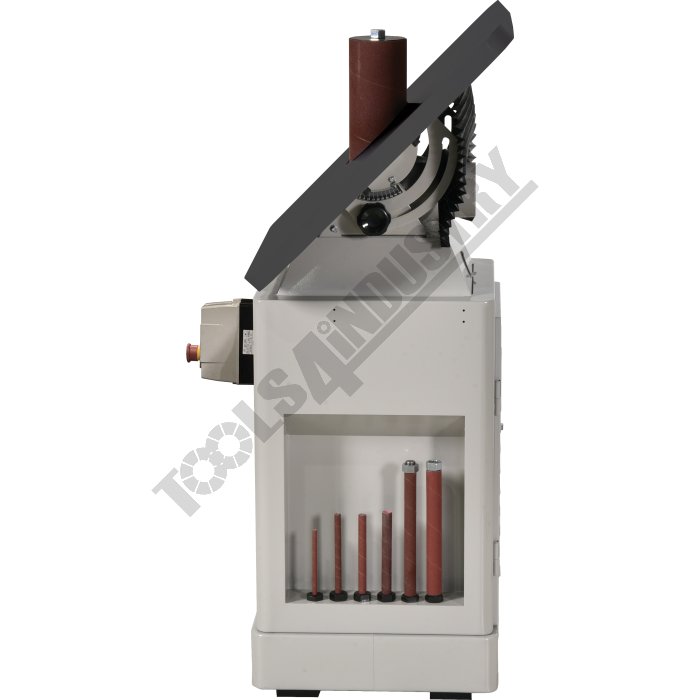

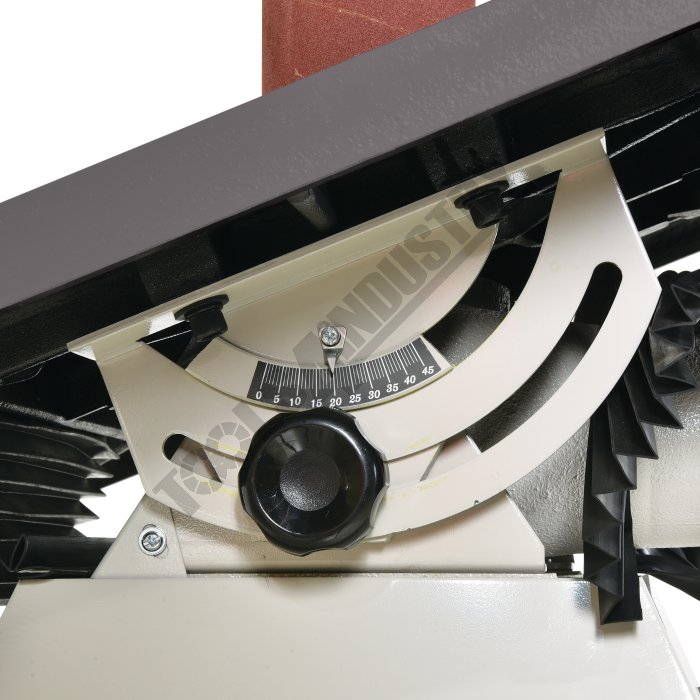

- Table tilting mechanism allows a tilt from 0° to 45°

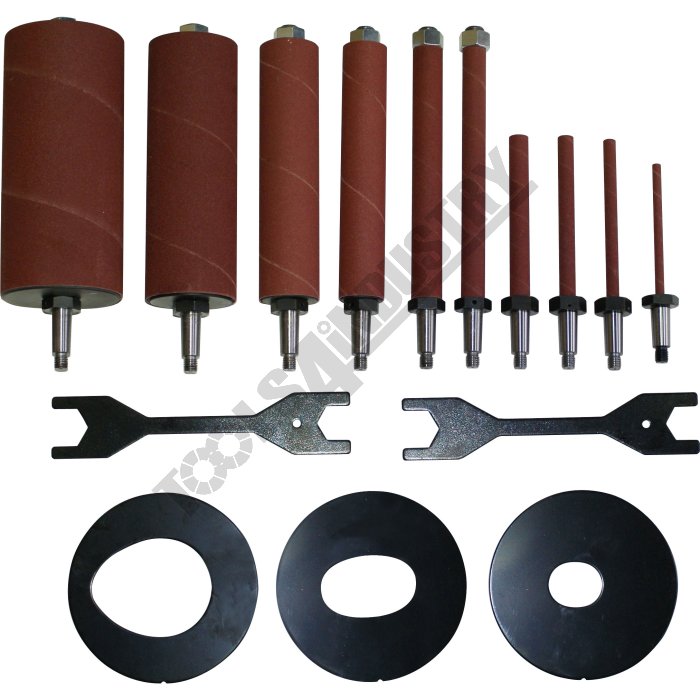

- Supplied with 10 bobbin spindles ranging from Ø6.35mm (1/4") to Ø101.6mm (4")
- Supplied with table inserts with round and oval openings for various sanding positions
- Spindle change is easily made by using the supplied wrench

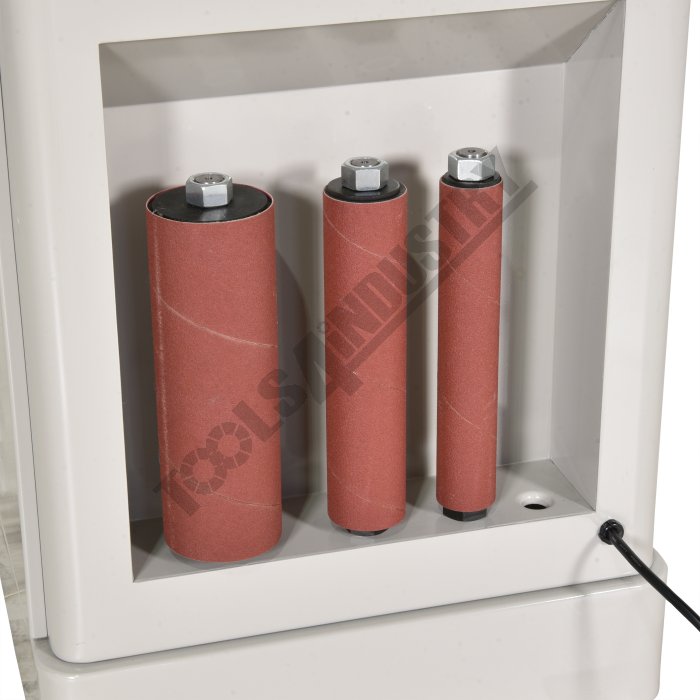

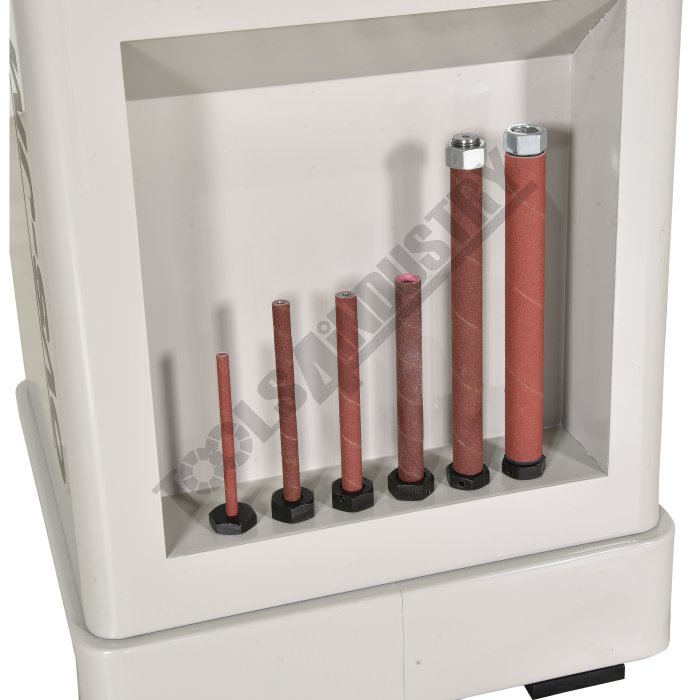

- On-board accessory storage ensures convenient storage of all drums and table inserts plates
- 1hp 240V motor provides ample power

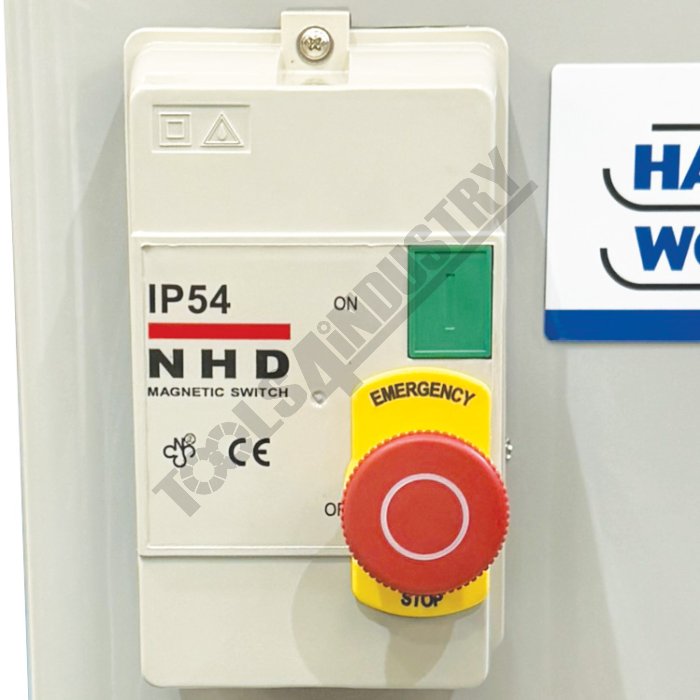

- DOL starter switch with overload protection and raised red stop button

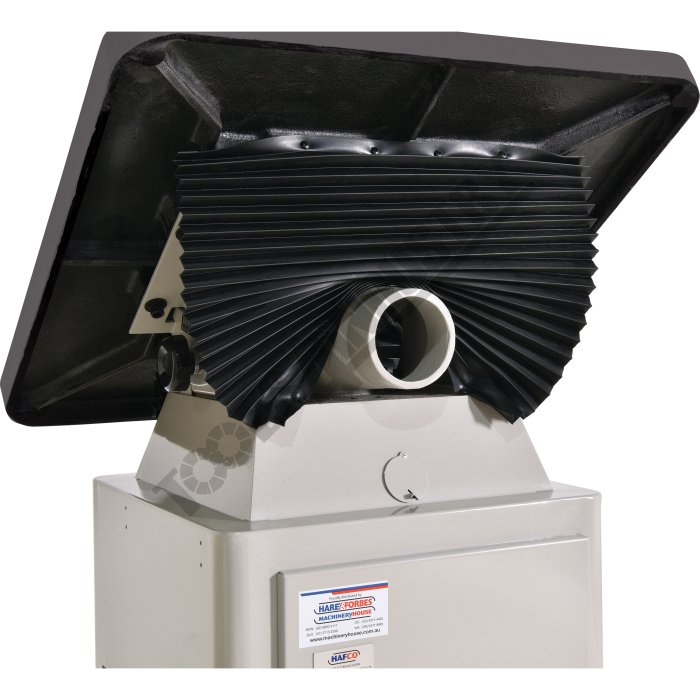

- Ø100mm (4") dust port for efficient dust extraction
- Oscillating per minute: 75 times
Includes
- Sanding Spindles & Sleeves:
- 1/4" x 5" long
- 3/8" x 6" long
- 1/2" x 6" long
- 5/8" x 6" long
- 3/4" x 9" long
- 1" x 9" long
- 1-1/2" x 9" long
- 2" x 9" long
- 3" x 9" long
- 4" x 9" long
Specifications
- Compare 3 Products
- ORDER CODE
- MODEL
- Sanding Spindle Sleeve SizesInch
- Table Sizemm
- Table Heightmm
- Oscillating Strokemm
- Sanding Spindle Speedrpm
- Tilting Work TableDeg.
- Dust Port Sizemm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor SpaceW x D x H
- Weightkg
- W795
- OVS-JM
- 1/4", 3/8", 1/2", 5/8", 3/4"
1", 1-1/2", 2", 3" & 4" - 609 x 609
- 990
- 38
- 1725
- 45º
- Ø100
- 0.75 / 1
- 240 / 10
- 620 x 620 x 1200
- 145
- W843
- OS-58
- 1/2", 3/4", 1", 1-1/2", 2"
& 3" - 370 x 290
- 330
- 16
- 2000
- ~
- Ø40
- 0.45 / 0.6
- 240 / 10
- 370 x 450 x 440
- 17.3
- W792
- OS-140
- 1/2", 3/4", 1", 1-1/2", 2"
- 370 x 370
- 485
- 24
- 1425
- 45º
- Ø50
- 0.37 / 0.5
- 240 / 10
- 370 x 370 x 500
- 34.5
| ORDER CODE | OVS-JM |
|---|---|
| MODEL | 1/4", 3/8", 1/2", 5/8", 3/4" 1", 1-1/2", 2", 3" & 4" |
| Sanding Spindle Sleeve SizesInch | 609 x 609 |
| Table Sizemm | 990 |
| Table Heightmm | 38 |
| Oscillating Strokemm | 1725 |
| Sanding Spindle Speedrpm | 45º |
| Tilting Work TableDeg. | Ø100 |
| Dust Port Sizemm | 0.75 / 1 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 620 x 620 x 1200 |
| Floor SpaceW x D x H | 145 |
| Weightkg |
