| Code | W326 |
|---|---|
| Model | AP-12 |
| Capacity | 1044cfm Air Flow Capacity |
| Weight (kg) | 27.5 |
| Weight (m3) | 0.198 |
| Weight (Freight) | 65.934 |
| Dimensions (cm) | 82 x 67 x 36 |

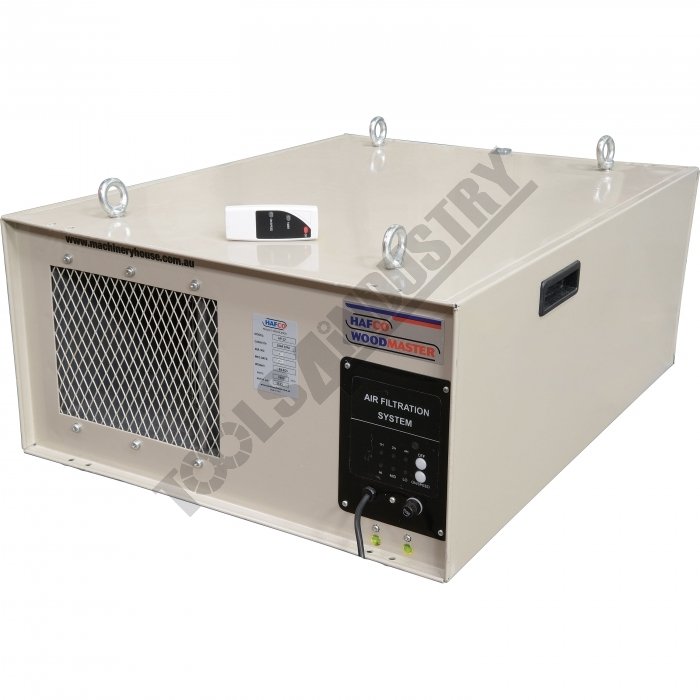

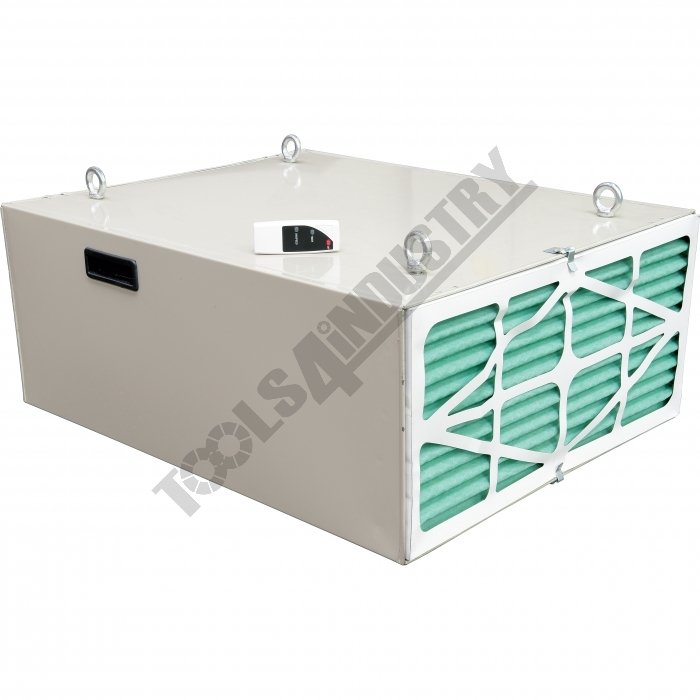

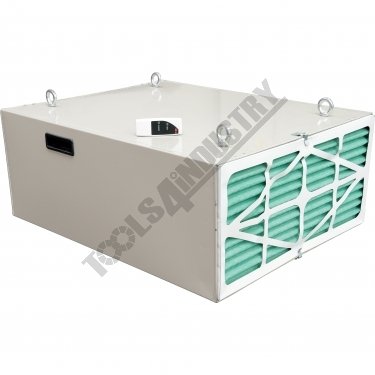

Two Stage Air Filtration Unit AP-12 1044cfm Air Flow Capacity
Description

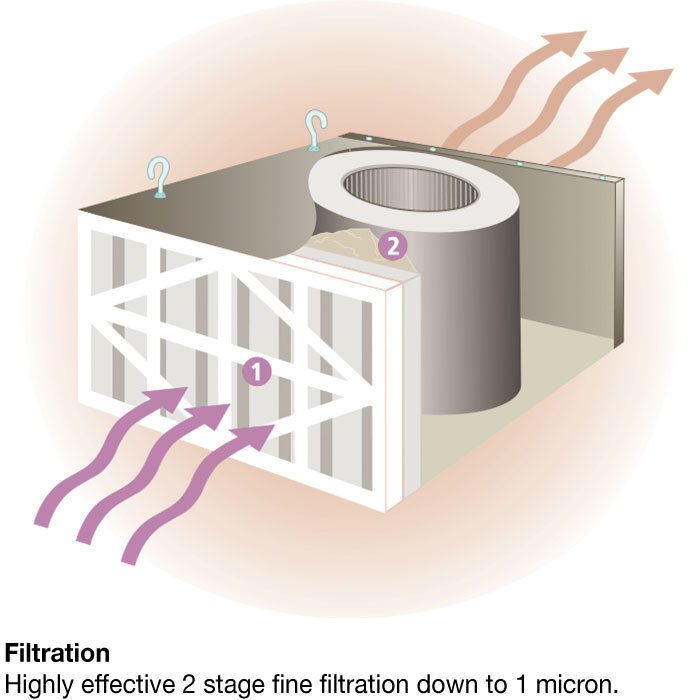

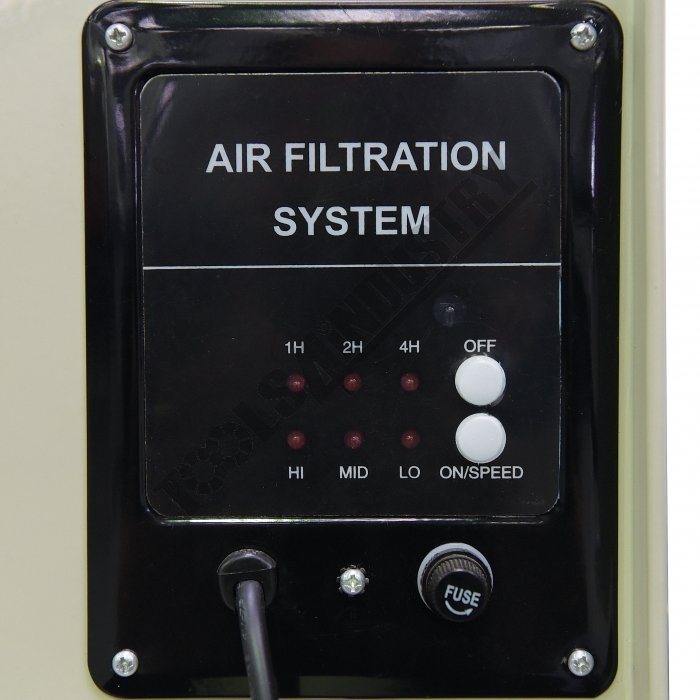

With a 150W motor the AP-12 is great for home or lite industrial workshops. The air passes through a 2 stage filter system, with the pleated pre-filter firstly captures 98% of all particles at 5 microns in size and 85% of all particles 1 micron in size when it passes through the second stage filter.The remote control unit has three settings for the motor speed (High-1044CFM @ 69dB, Medium-702CFM @ 67dB, Low-556CFM @ 62dB) and three different time settings of 1 hour, 2 hours and 4 hours, which can be used to clear the workshop after work has finished for the day.
Features
- 1044cfm air flow capacity

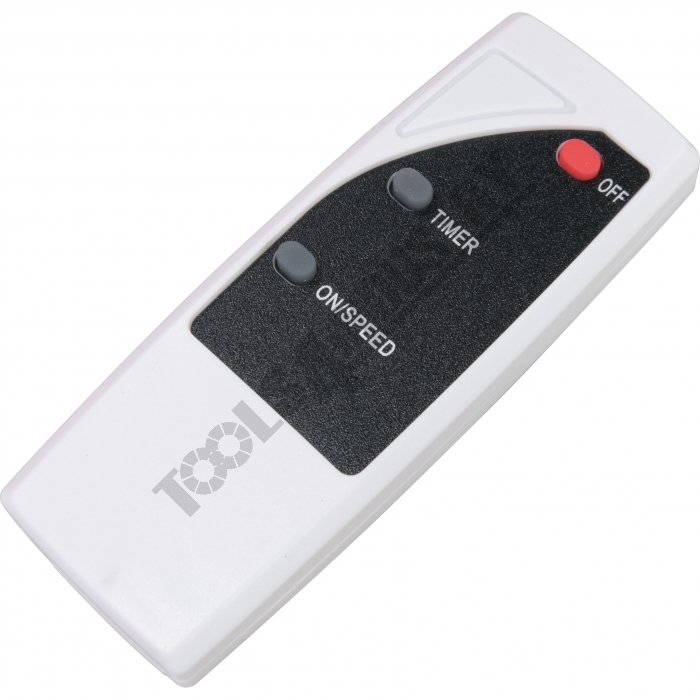

- Remote control ON/OFF
- Two stage air filter

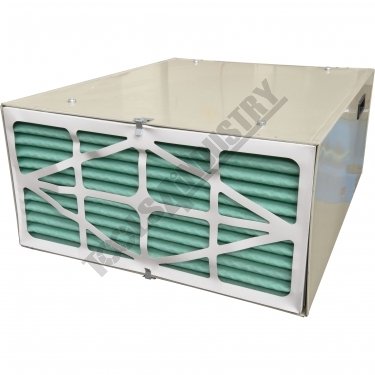

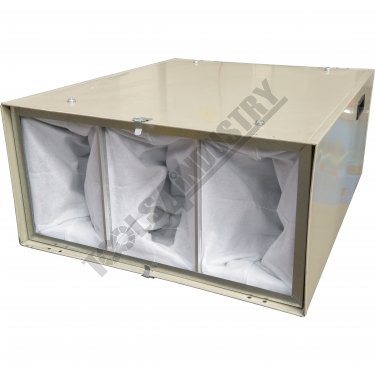

- Filtering 98% of all particles 5 microns in size and 85% of all particles 1 micron in size
- Quiet running with 3 x motor speeds (High-1044CFM @ 69dB, Medium-702CFM @ 67dB, Low-556CFM @ 62dB)
- 3 x timer settings (1Hr, 2Hr , 4Hr)

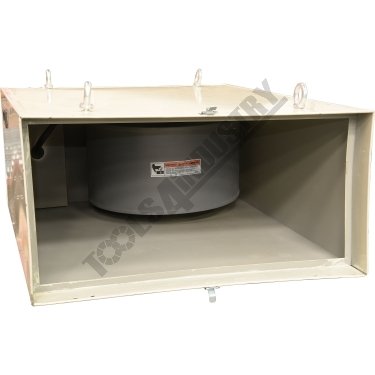

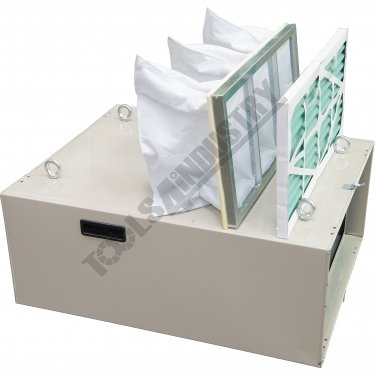

- Easy removal to clean filter element
- Designed for ceiling mount

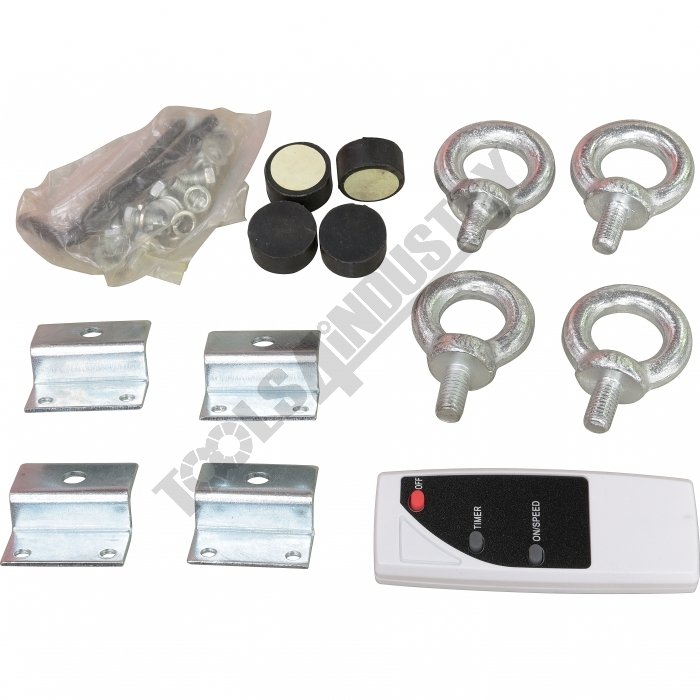

Includes
- Flange brackets for wall or ceiling mounting
- Eye bolts for mounting to ceiling rafters
- Rubber feet for placing unit on workbench
Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- Filtration Type
- Filtration ParticleMicron
- Air Flow CapacityCFM
- Noise LeveldB
- Room Volume Efficiencym³
- Motor PowerW / hp
- Voltage / AmperageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg
| ORDER CODE | AP-12 |
|---|---|
| MODEL | 2 Stage |
| Filtration Type | 1 |
| Filtration ParticleMicron | 1044 |
| Air Flow CapacityCFM | 62 ~ 69 |
| Noise LeveldB | 300 |
| Room Volume Efficiencym³ | 150 / 0.2 |
| Motor PowerW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 610 x 770 x 350 |
| Floor Space (W x D x H)mm | 27 |
| Nett Weightkg |
