| Code | W2741 |
|---|---|
| Model | MMC-SVAC |
| Capacity | Remove swarf and fine particles from your coolant tanks quickly and easily |
| Weight (kg) | 66.4 |
| Weight (m3) | 0.346 |
| Weight (Freight) | 115.218 |
| Dimensions (cm) | 68 x 48 x 106 |

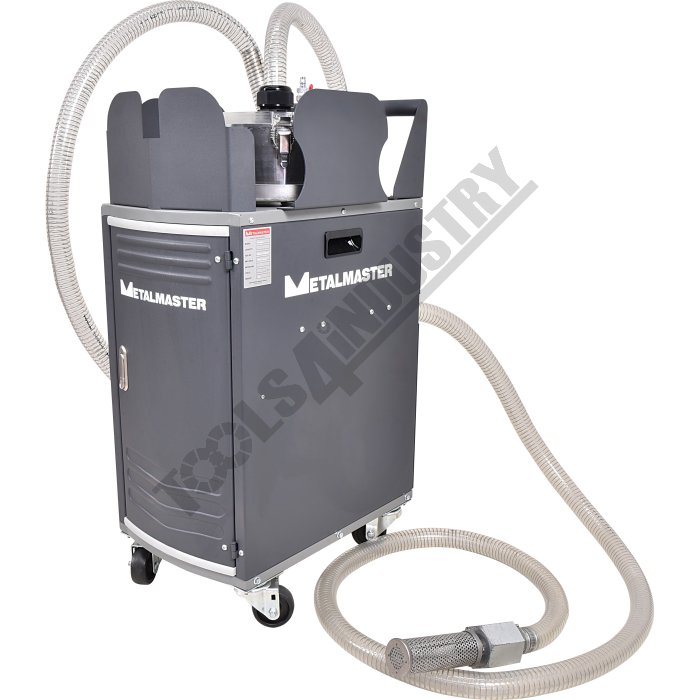

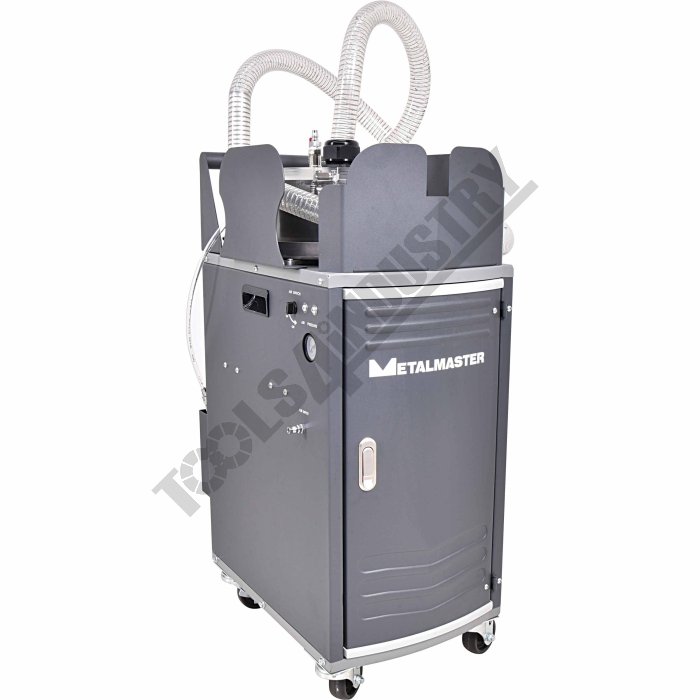

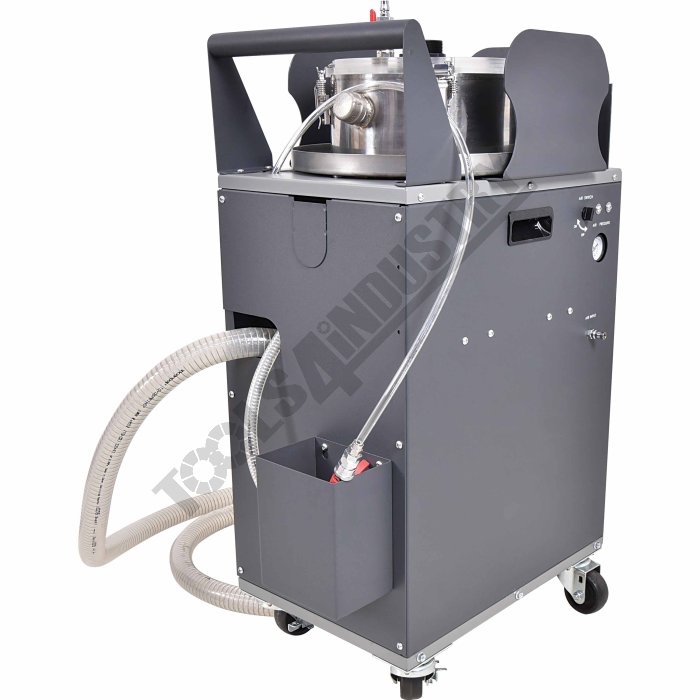

Swarf Vacuum MMC-SVAC Remove swarf and fine particles from your coolant tanks quickly and easily
Description
Are you still avoiding the nasty job of cleaning swarf and debris from your machine coolant tank ?The MEATALMASTER swarf vacuum will make this job easy, clean and efficient.

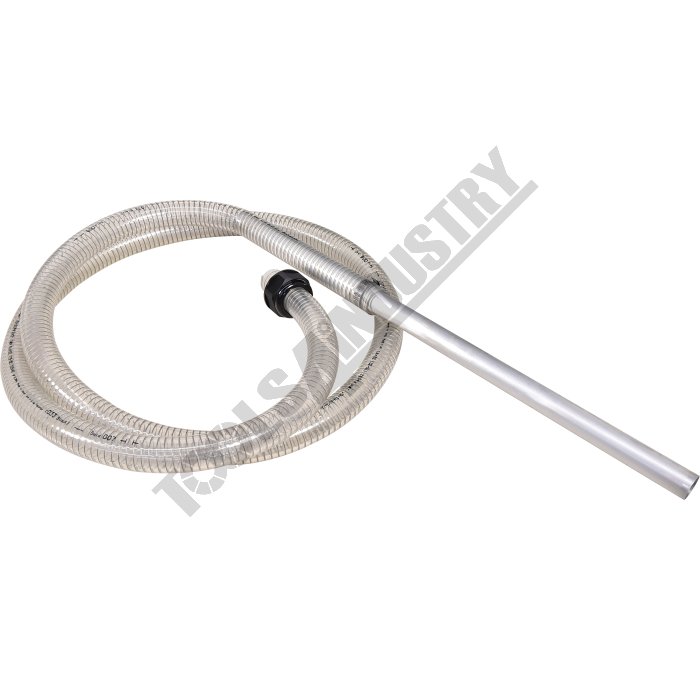

Suitable for water based or oil based cutting fluids, metal chips of all types can be removed from your tank and the coolant returned all in one process. Floating swarf, heavier chips sitting on the bottom of your tank or any other desposit can be easily and quickly removed.
There is no need to stop your machine, NO power required (Air operated) and is on wheels for moving from machine to machine.
Powerful Pneumatic Pump:
The high volume pump can be easily adjusted to suit the correct flow rate for your tank cleaning, simple & quiet operation with no consumables

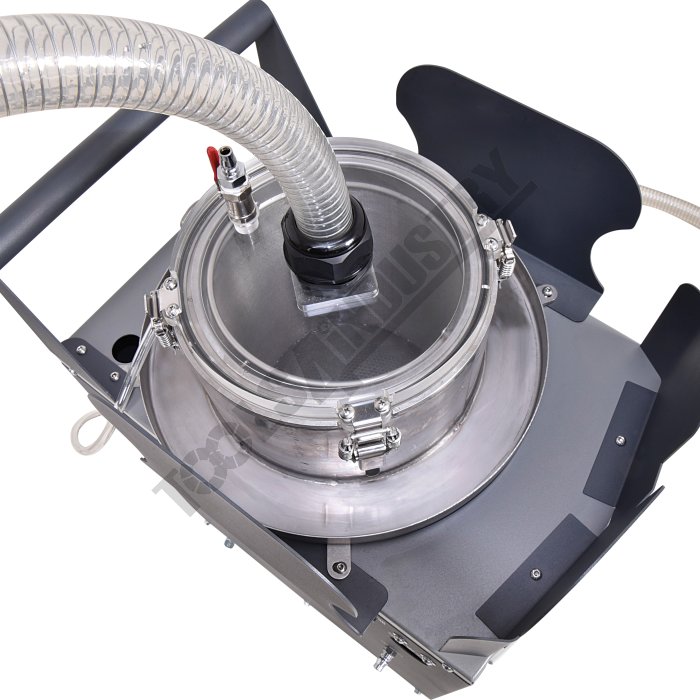

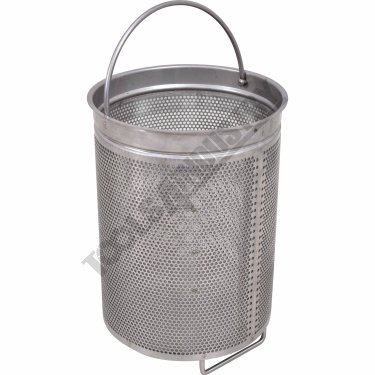

Stainless Filter Basket:
The heavy duty filtration basket with handle is made from 304 Stainless steel for longevity, the standard basket has a 0.38mm mesh that traps most types of swarf effectivley, we can offer a 0.18mm mesh basket for very fine swarf as an additional option.
Portability:
The swarf vacuum is on castor wheels so can be moved around the workshop at ease from machine to machine
Features
- Portable to move from machine to machine

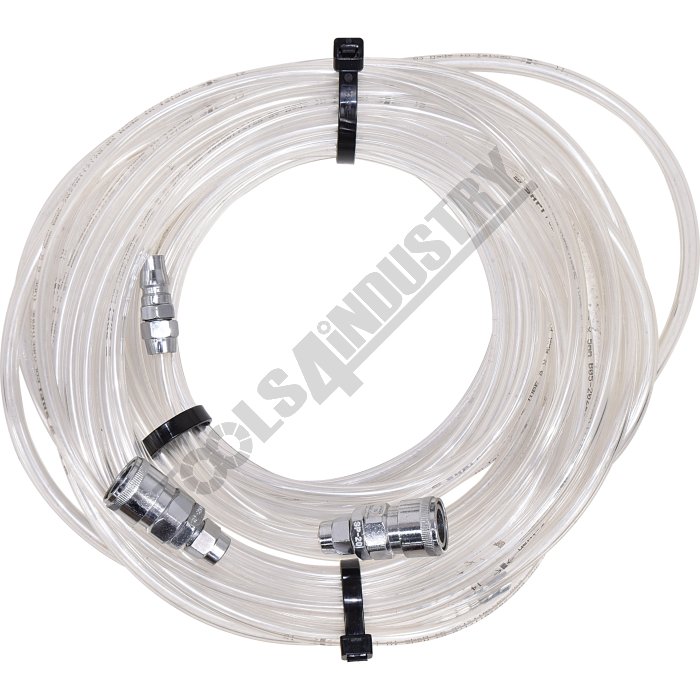

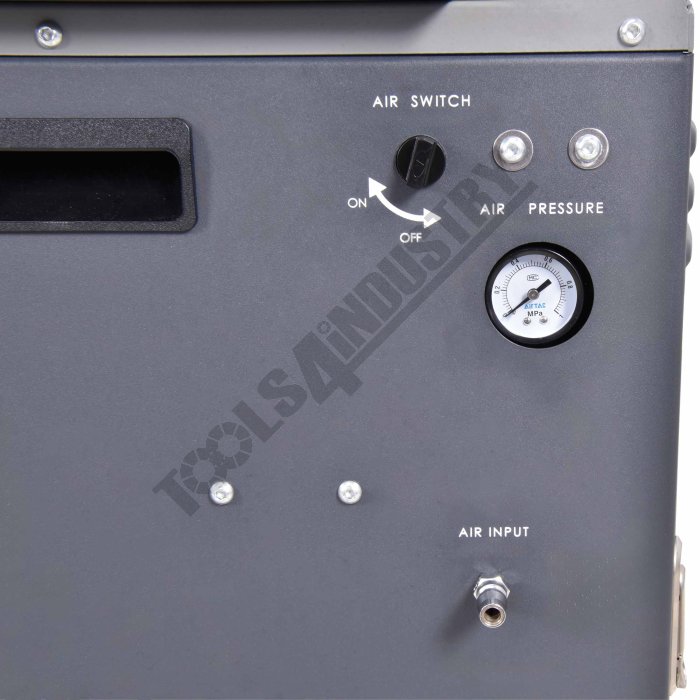

- Simple no fuss operation by compressed air
- Powerful 180L/min pnuematic pump
- Cleanable stainless steel filters

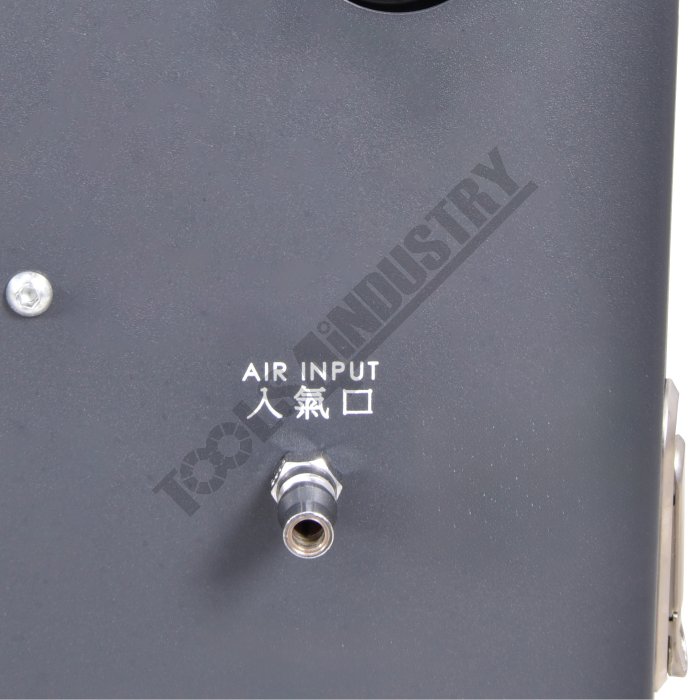

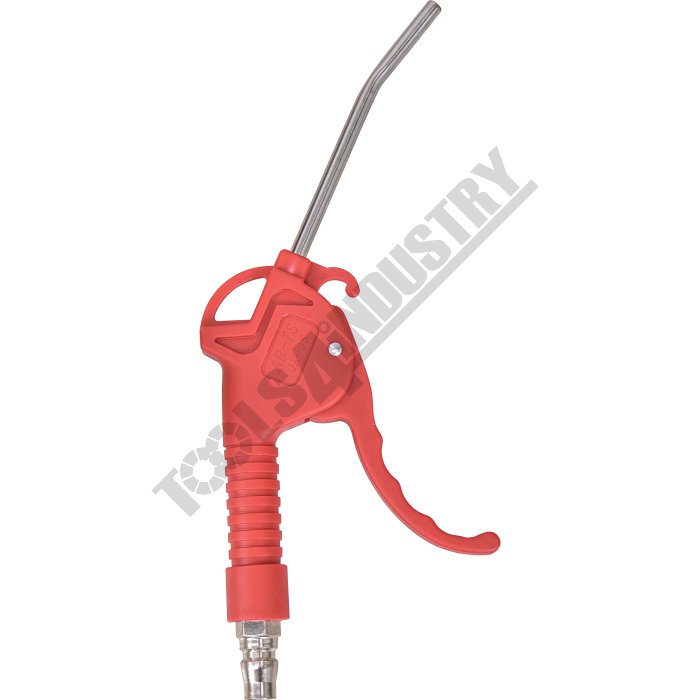

- Built in Air gun for cleaning of CNC machine tank mesh filters
Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- Pump Flow RateL/min
- Ozone Generation - Bacteria Killer !mg/hr
- Filtration Mesh sizemm
- Swarf Basket CapacityLiters
- Filter / Basket Material~
- Compressed Air RequirementBar
- Power RequirementV/Amp
- Machine Sizemm
- WeightKg

- W2740
- MMC-3IN1
- 10~30 Variable
- 500
- 0.38
- ~
- 304 Stainless Steel
- 6
- 240/10
- 560 x 410 x 880H
- 45
| ORDER CODE | MMC-SVAC |
|---|---|
| MODEL | 180 |
| Pump Flow RateL/min | ~ |
| Ozone Generation - Bacteria Killer !mg/hr | 0.38 |
| Filtration Mesh sizemm | 12 |
| Swarf Basket CapacityLiters | 304 Stainless Steel |
| Filter / Basket Material~ | 0.5 ~ 8.3 Variable |
| Compressed Air RequirementBar | ~ |
| Power RequirementV/Amp | 420 x 600 x 900H |
| Machine Sizemm | 56 |
| WeightKg |
