| Code | W1091 |
|---|---|
| Model | WMVP-2M |
| Capacity | 4pc Pack |
| Weight (kg) | 0.27 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.27 |
| Dimensions (cm) | 19.5 x 9.5 x 3.5 |

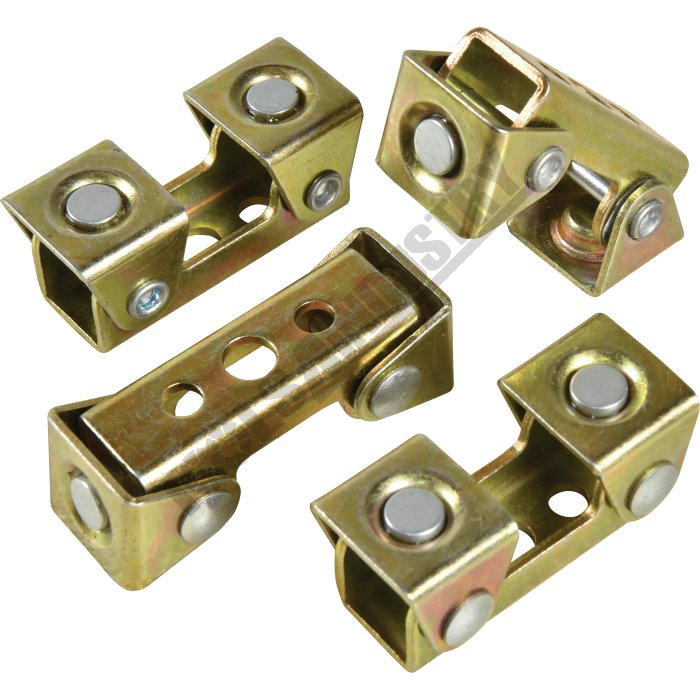

Magnetic Swivel V-Pad Clamps WMVP-2M 4pc Pack
Description
The swiveling magnetic jaws will hold almost any round or flat part. The dual swivel pads feature strong magnets to aid in holding your work piece. The base includes a through 8mm hole so that it can be used to attach to your jigs or welding table fixtures. Sold in a pack of 4pcs.Features

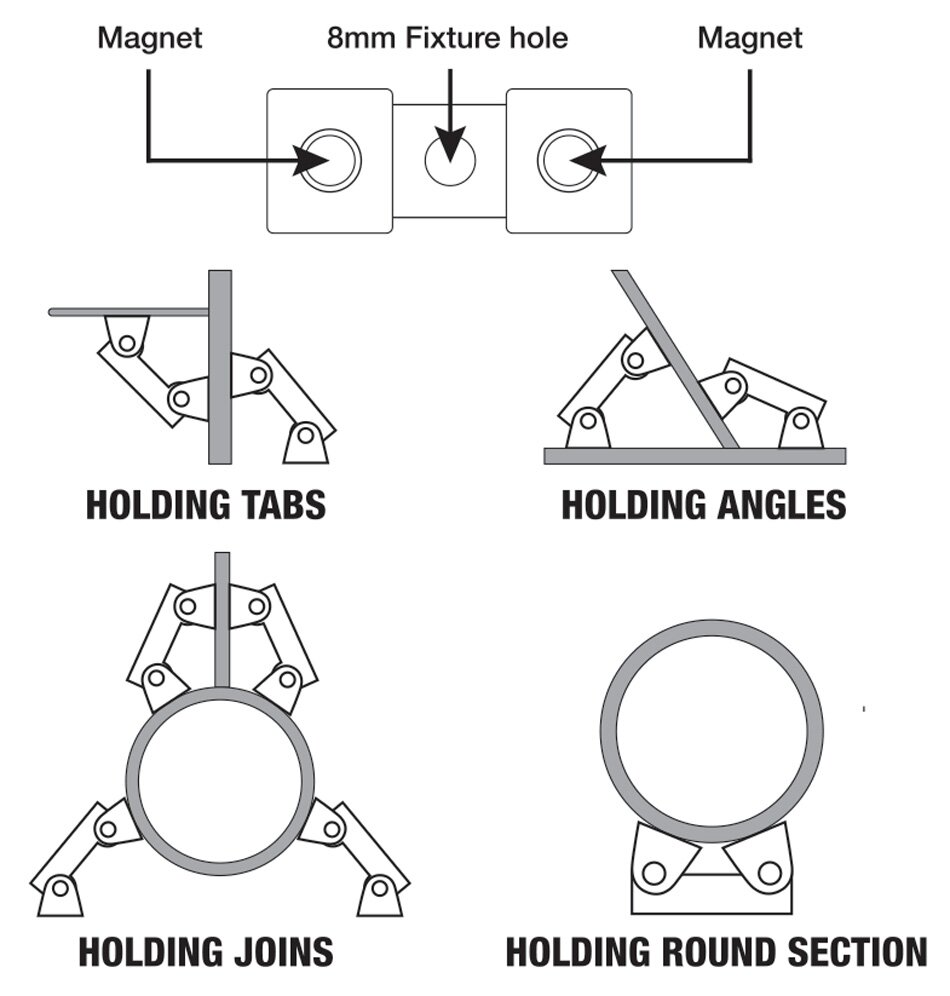

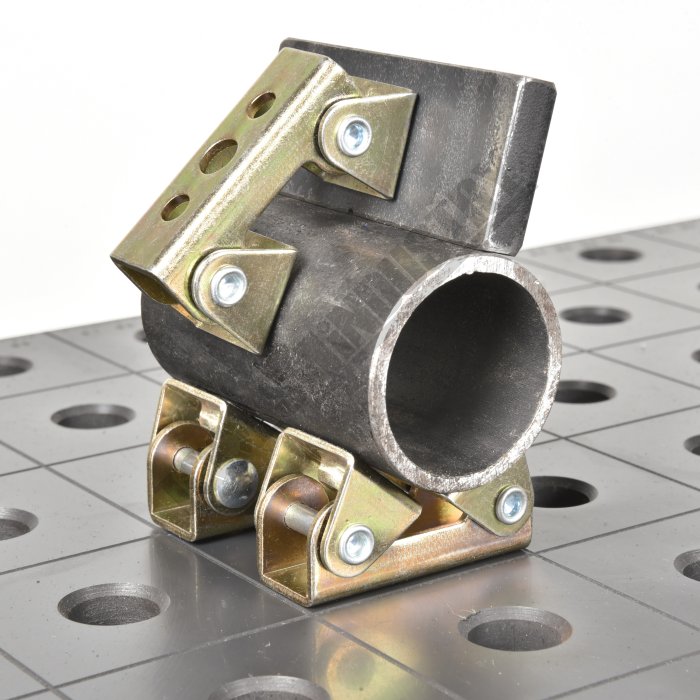

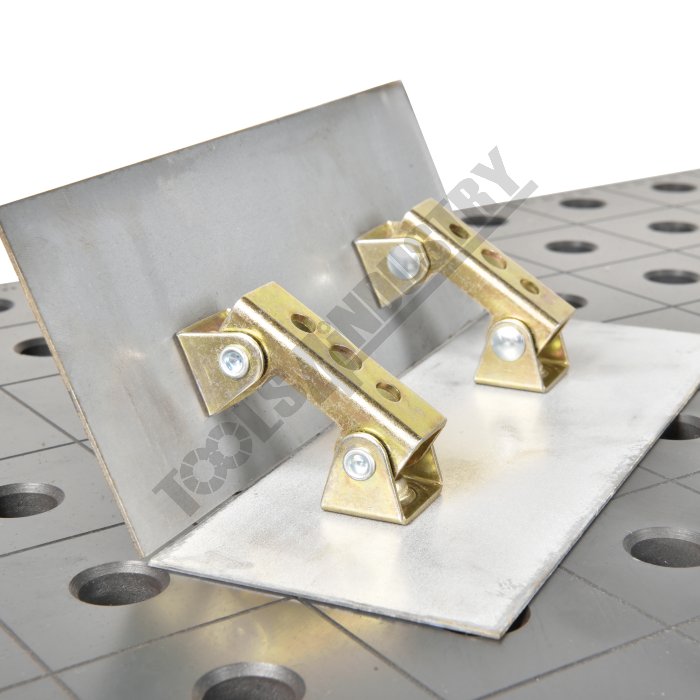

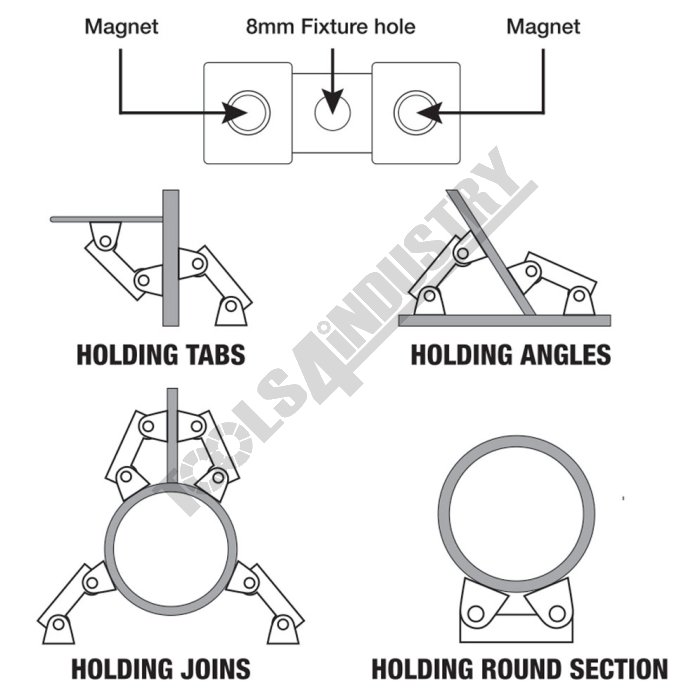

- Hold and position round, flat and square parts in multiple applications
- Each V-Pad contains 2 rare earth magnets
- Adjustable multi-purpose fixture clamps
- Hold and position steel
- Ø8mm Fixture hole
Specifications
- Compare 7 Products
- ORDER CODE
- MODEL
- Type
- Size
- Quantity Per PackNo.
- Magnet Clamp Angledeg
- Pull Forcekg
- Nett Weightkg
- W1091
- WMVP-2M
- Magnetic Swivel V-Pad Clamps
- ~
- 4
- ~
- 10
- ~
- W1081
- WCM-3A
- Corner Magnet
Mulit-Angle
- 92 x 92 x 31mm
- 2
- 45º, 90º & 135º
- 10*
- 0.4
- W1082
- WCM-4A
- Corner Magnet
Multi-Angle
- 57 x 37 x 70mm
- 2
- 15º, 60º, 90º & 120º
- 10*
- 0.5
- W1085
- WCM-3S
- Switchable Multi-Angle Welding Magnet
- ~
- 1
- 45º, 90º & 135º
- 15
- 0.4
- W1086
- WCM-5S
- Switchable Multi-Angle Welding Magnet
- ~
- 1
- 30º, 45º, 60º, 90º & 135º
- 15
- 0.4
- W1071
- WCM-90HD
- Switchable Multi-Angle Welding Magnet
- 95L x 110H x 26Wmm
- 1
- 45º, 90º
- 40
- 0.68
- W1072
- WCM-140HD
- Switchable Dual-Angle Welding Magnet
- ~
- 1
- 45º, 90º
- 70
- 1.4
| ORDER CODE | WMVP-2M |
|---|---|
| MODEL | Magnetic Swivel V-Pad Clamps |
| Type | ~ |
| Size | 4 |
| Quantity Per PackNo. | ~ |
| Magnet Clamp Angledeg | 10 |
| Pull Forcekg | ~ |
| Nett Weightkg |
