Code	W07851
Model	WT16-AB400LR
Capacity	400 x 200 x 50mm
Weight (kg)	11
Weight (m³)	0.008
Weight (Freight)	11
Dimensions (cm)	44 x 22 x 8

METALMASTER

1 Year Warranty

Product Brochure

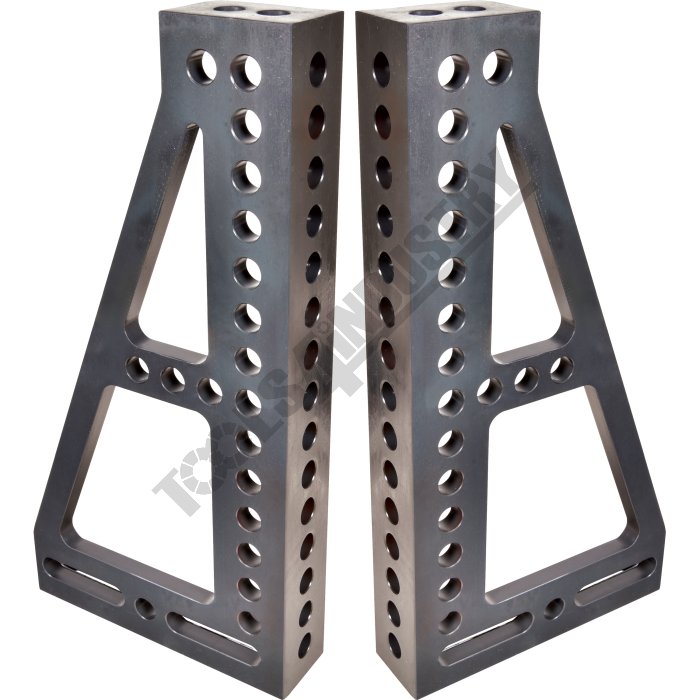

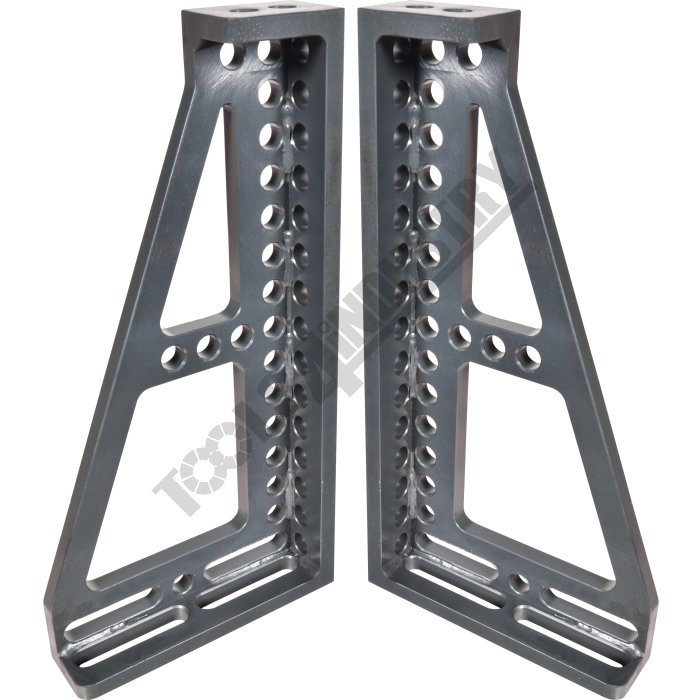

Angle Bracket Set WT16-AB400LR 400 x 200 x 50mm

Description

The perfect addition to complement our METALMASTER M16 Pro Series welding tables. The modular design makes it easy to set-up and tear down for your job at hand whether it is big or small. Increase precision & consistency for all your welding tasks to save you time and money.

Features

Heavy steel construction
Sold as a pair – 1 x LH & 1 x RH
4 machined surfaces with a combination of 16mm holes & slots
CNC machined surfaces to ensure precision tolerances
Burnished finish surface treatment to prevent rust

Specifications

Compare 30 Products
ORDER CODE
MODEL
Type
Suits Table Hole DiameterØ (mm)
Sizemm
Slot Lengthmm
Nett Weightkg

W07851
WT16-AB400LR
Angle Bracket
Ø16mm
~
~
11

W07852
WT16-AB600LR
Angle Bracket
Ø16mm
~
~
16

W08532
WTS215
Table Square
Ø16mm
200 x 100 x 50mm
~
1.8

W08554
WTS3151
Table Square
Ø16mm
300 x 150 x 100mm
~
3.5

W08539
WTS4515
Weldoing Table Square
Ø16mm
450 x 150 x 50
~
3

W08111
T60231
M. Cast Iron Clamp Square
Ø16mm
50 x 140 x 300mm
2 Slots
2.9

W08110
T60230
M. Cast Iron Clamp Square
Ø16mm
50 x 140 x 300mm
2 Slots
2.9

W08320
WT28-AB755
Right Angle Bracket / Stop
Ø28mm
75 x 75 x 50mm
~
0.93

W08321
WT28-AB1755
Right Angle Bracket / Stop
Ø28mm
175 x 75 x 50mm
~
1.28

W08324
WT28-AB1753x1
Right Angle Bracket / Stop
Ø28mm
175 x 175 x 50mm
~
1.98

W08325
WT28-AB2755x1
Right Angle Bracket / Stop
Ø28mm
275 x 175 x 50mm
~
2.59

W08330
WT28-LB175
L Bracket
Ø28mm
175 x 175 x 25mm
~
1.76

W08331
WT28-LB275
L Bracket
Ø28mm
275 x 225 x 25mm
~
2.57

W08335
WT28-TB2501
T Bracket
Ø28mm
250 x 150 x 25mm
~
2.11

W08329
WT28-AB500ADJ
Adjustable Angle Bracket
Ø28mm
500 x 100 x 100mm
~
24

W08326
WT28-AB300LR
Angle Bracket Set
Ø28mm
300 x 275 x 100mm
~
32

W08327
WT28-AB600LR
Angle Bracket Set
Ø28mm
600 x 375 x 100mm
~
55

W08328
WT28-AB800LR
Angle Bracket Set
Ø28mm
800 x 375 x 100mm
~
50

W07840
WT16-AB443
Right Angle Bracket / Stop
Ø16mm
~
~
0.10

W07841
WT16-AB943
Right Angle Bracket / Stop
Ø16mm
~
66
0.15

W07844
WT16-AB993
Right Angle Bracket / Stop
Ø16mm
~
~
0.25

W07845
WT16-AB1405x1
Right Angle Bracket / Stop
Ø16mm
140 x 90 x 30mm
~
0.32

W07853
WT16-LB105
L Bracket
Ø16mm
~
~
0.32

W07855
WT16-LB155
L Bracket
Ø16mm
~
~
2.0

W07857
WT16-TB130
T Bracket
Ø16mm
~
~
2.5

W07858
WT16-TB250
T Bracket
Ø16mm
~
~
2.5

W07846
WT16-CSQ100
Clamping Square
Ø16mm
140 x 90 x 100 x 50mm
~
0.32

W07847
WT16-CSQ200
Clamping Square
Ø16mm
140 x 90 x 200 x 50mm
~
0.32

W07848
WT16-CSQ300
Clamping Square
Ø16mm
140 x 90 x 300 x 50mm
~
0.32

W07850
WT16-AB300LR
Angle Bracket
Ø16mm
~
~
9

ORDER CODE	WT16-AB400LR
MODEL	Angle Bracket
Type	Ø16mm
Suits Table Hole DiameterØ (mm)	~
Sizemm	~
Slot Lengthmm	11
Nett Weightkg
