Code	T8221
Capacity	Metric Extra Fine Pitch
Weight (kg)	0.02
Weight (m³)	0.000
Weight (Freight)	0.02
Dimensions (cm)	6 x 2 x 1

Product Brochure

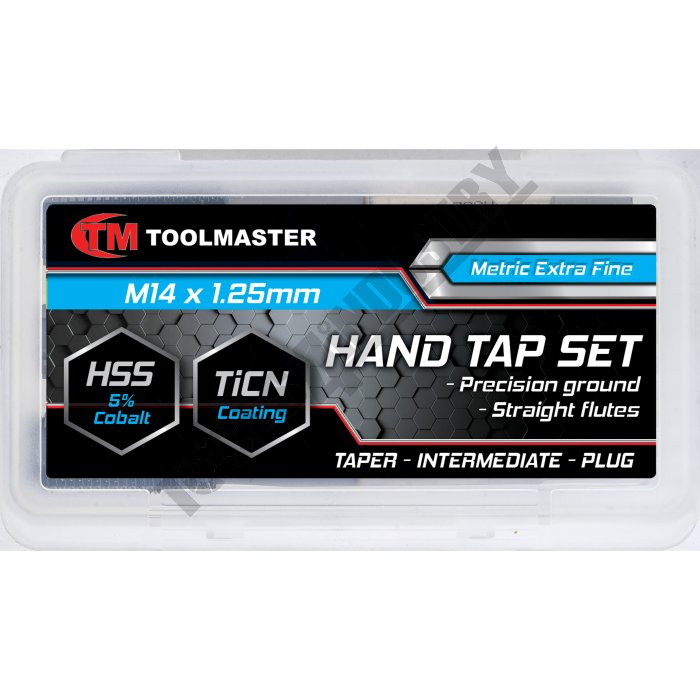

M14x 1.25mm HSS Straight Flute 3pc Hand Tap Set Metric Extra Fine Pitch

Description

High quality HSS tap sets which include starting, intermediate & bottoming taps. Manufactured from premium quality M35 HSS featuring precision CNC ground threads for superior tolerance . Supplied in a handy storage case.

Features

M35 High Speed Steel with 5% cobalt
TiCN Coating for increased wear resistance
Precision ground thread
ISO 529 Standard

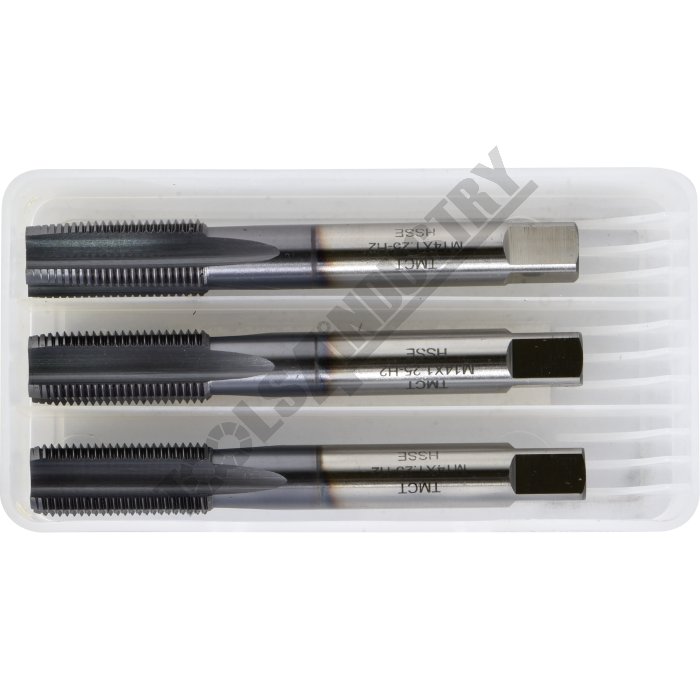

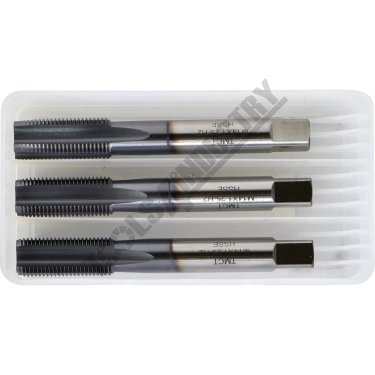

Includes

1 x Taper
1 x Intermediate
1 x Plug

Specifications

Compare 23 Products
ORDER CODE
Size
Pitch
Pitch Type
Flute Type
Thread Form
Max Cut Depth
Nut Tolerance
Standard

T8221
M14
1.25mm
Metric Extra Fine
Straight
Metric
2.5 x D
~
ISO 529

T8220
M14
1.5mm
Metric Fine
Straight
Metric
2.5 x D
~
ISO 529

T8219
M14
2.0mm
Metric Course
Straight
Metric
2.5 x D
~
~ISO 529

T8216
M12
1.5mm
Metric Fine
Straight
Metric
2.5 x D
~
ISO 529

T8215
M12
1.75mm
Metric Course
Straight
Metric
2.5 x D
~
ISO 529

T8212
M10
1.25mm
Metric Fine
Straight
Metric
2.5 x D
~
ISO 529

T8211
M10
1.5mm
Metric Course
Straight
Metric
2.5 x D
~
ISO 529

T8209
M8
1.0mm
Metric Fine
Straight
Metric
2.5 x D
~
ISO 529

T8208
M8
1.25mm
Metric Course
Straight
Metric
2.5 x D
~
ISO 529

T8207
M6 x 0.75mm
0.75mm
Metric Fine
Straight
Metric
~2.5 x D
~
ISO 529

T8206
M6 x 1.0mm
1.0mm
Metric Coarse
Straight
Metric
2.5 x D
~
ISO 529

T8204
M5 x 0.8mm
0.8mm
Metric Coarse
Straight
Metric
2.5 x D
~
ISO 529

T8202
M4 x 0.7mm
0.7mm
Metric Coarse
Straight
Metric
2.5 x D
~
ISO 529

T8200
M3
0.5mm
Metric Coarse
Straight
Metric
2.5 x D
~
ISO 529

T8230
M20
2.0mm
Metric Fine
Straight
Metric
2.5 x D
~
ISO 529

~T8102
~M5 X 0.8mm
~0.8mm
~Metric Course
~Straight
~Metric
~1 x D
~
~ISO 529

~T8103
~M6 X 1.0mm
~1.0mm
~Metric Course
~Straight
~Metric
~1 x D
~
~ISO 529

~T8104
~M8 X 1.25mm
~1.25mm
~Metric Course
~Straight
~Metric
~1 x D
~
~ISO 529

~T8105
~M10 X 1.5mm
~1.5mm
~Metric Course
~Straight
~Metric
~1 x D
~
~ISO 529

~T8106
~M2 X 1.75mm
~1.75mm
~Metric Course
~Straight
~Metric
~1 x D
~
~ISO 529

T8229
M20
2.5mm
Metric Course
Straight
Metric
2.5 x D
~
ISO 529

T8224
M16
1.5mm
Metric Fine
Straight
Metric
2.5 x D
~
ISO 529

T8223
M16
2.0mm
Metric Course
Straight
Metric
2.5 x D
~
ISO 529

ORDER CODE	M14
Size	1.25mm
Pitch	Metric Extra Fine
Pitch Type	Straight
Flute Type	Metric
Thread Form	2.5 x D
Max Cut Depth	~
Nut Tolerance	ISO 529
Standard
