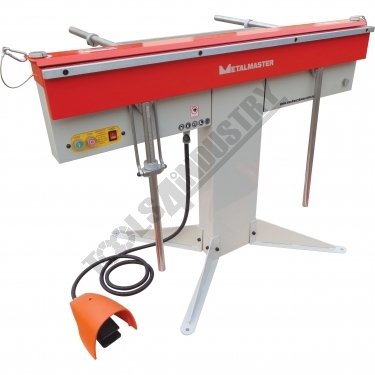

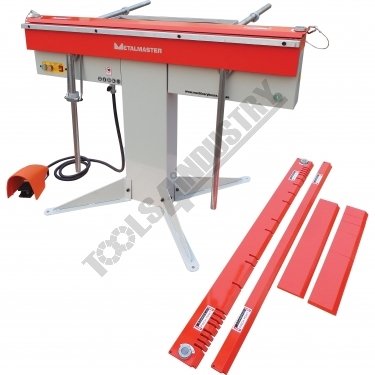

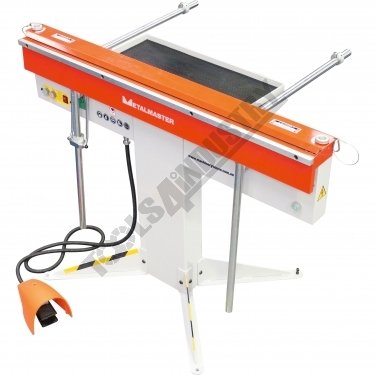

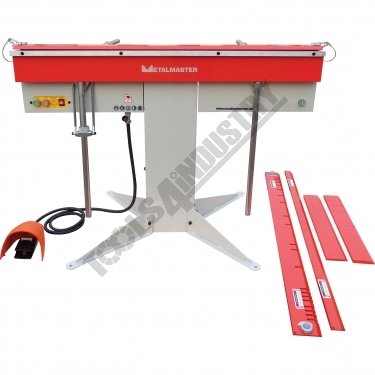

Magnetic Panbrake MB-1250D 1250 x 1.6mm Mild Steel Bending Capacity

Description

NEW GENERATION BENDING! Electromagnetic sheet metal folding machine
Bends all types of sheet metal, aluminium, copper, stainless steel for Typical industries: Roofing, Aircraft, General Sheet Metal Fabrication
6 Tonne Clamping Force (with standard full-length clamp bar)

Features

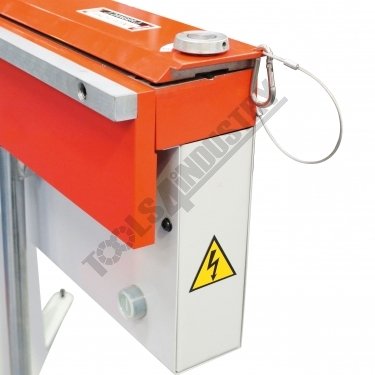

• Electromagnetic rather than mechanical clamping

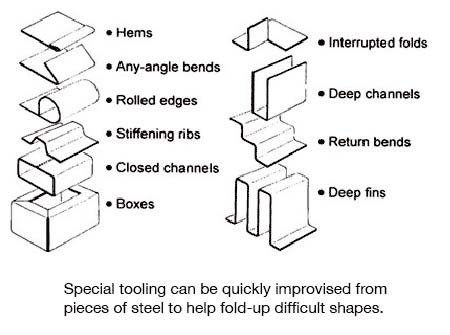

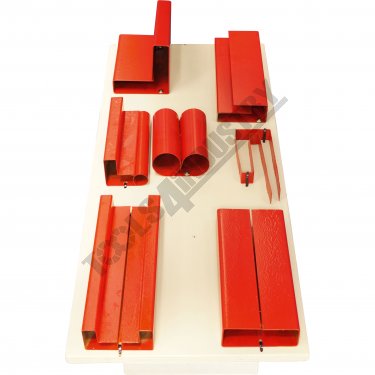

• Excellent design easy to use - forming deep channels and closed sections, deep boxes
• Much greater versatility than conventional sheet metal benders
• No limitation to depth of boxes
• Can form deep channels, and completely closed sections

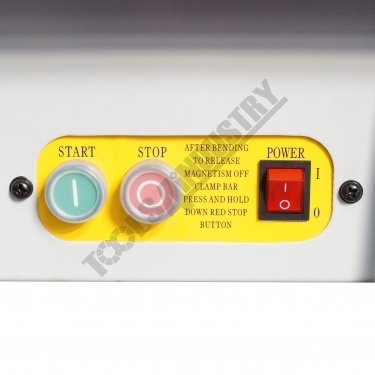

• Automatic clamping and unclamping means faster operation, less fatigue

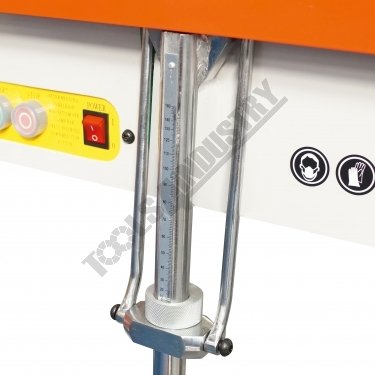

• Quick and accurate sliding angle guide on bending arm
• Infinite length bending in stages is possible
• Accurate and continuous indication of beam angle
• Open ended design allows folding of complex shapes
• Machines can be ganged end-to-end for long bending
• Adapts easily to customised tooling (clamp bars of special cross-sections)

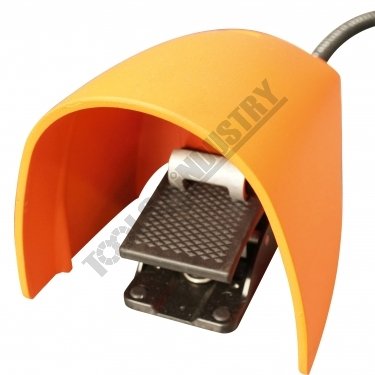

• Includes foot control, full length narrow, slotted & segmented clamp bars
• Mild steel capacity is rated on hot rolled material with 250MPA

Includes

• Segmented clamp bars; 25, 38, 52, 70, 140, 280 & 585mm lengths
• Standard clamp bar 1300mm long (W 100mm x H 15mm)
• Slotted clamp bar 1300mm long (W 100mm x H 15mm)
• Narrow clamp bar 1300mm long (W 50mm x H 15mm)
