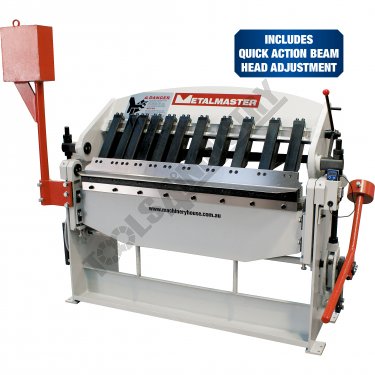

PB-422A Manual Panbrake 1250 x 2mm Mild Steel Bending Capacity

Features

  • 1250mm x 2mm capacity
  • Extended fingers allows bending of pans or boxes to a depth of 230mm

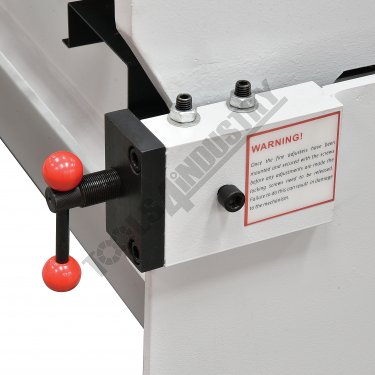

  • Quick head adjustment mechanism to suit your material thickness
  • Ground segmented fingers can be repositioned to suit many applications
  • Heavy duty steel fabricated frame provides accurate bends

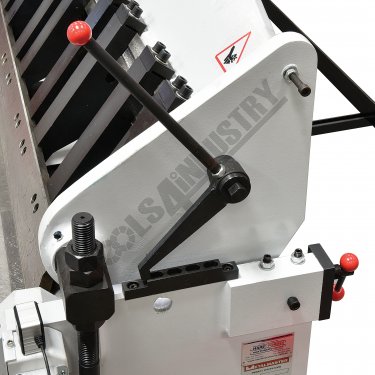

  • Safety top beam support stop lever located on right side of machine
  • Grease nipples located on all rotating parts
  • Quick action beam adjustment for varying material thickness

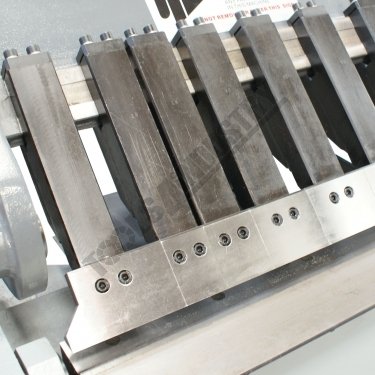

  • Removable individual bending fingers for pans or boxes
  • Mild steel capacity is rated on hot rolled material with 250MPA

Includes

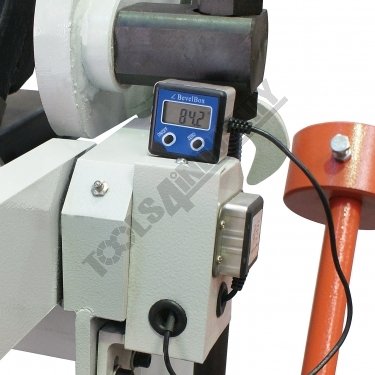

  • Includes digital angle readout with CR2032 battery
  • Quick Action Beam Head Adjustment for Material Thickness

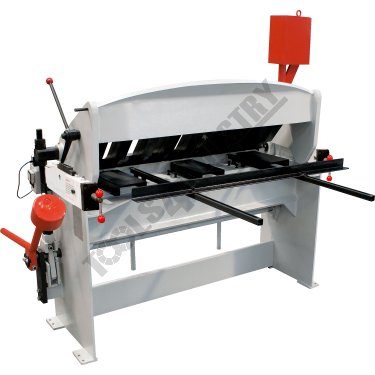

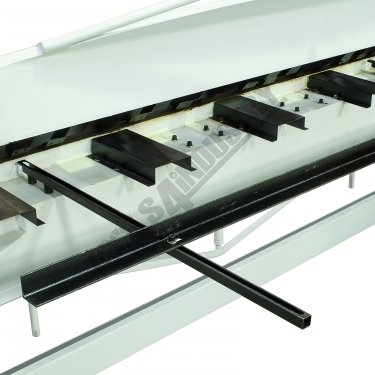

  • Rear manual backgauge

Specifications

ORDER CODEPB-422A
MODEL2
Bending Capacity - Mild Steelmm1250
Material Length Capacitymm1820 x 620 x 1300
Floor Space (L x W x H)mm1820 x 560 x 1290
Shipping Dimensions (L x W x H)mm980
Nett Weightkg
