This Product Is No Longer Available
| Code | R904 |
|---|---|
| Model | DS300 |
| Capacity | Ø305mm Sanding Disc |
| Weight (kg) | 35 |
| Weight (m3) | 0.107 |
| Weight (Freight) | 35.631 |
| Dimensions (cm) | 53 x 47 x 43 |

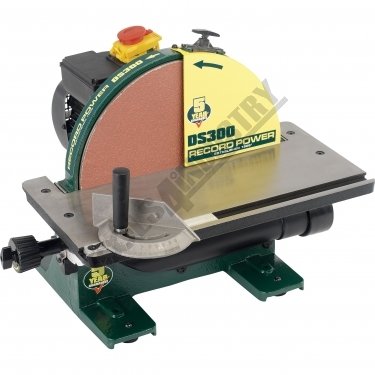

Bench Disc Sander DS300 Ø305mm Sanding Disc
Description
The Record Power DS300 is a superbly built and heavy duty disc sander; a real workhorse that will provide years of reliable service in the workshop.Featuring a cast iron body, disc and table, this machine is more than capable of withstanding heavy sanding tasks. The powerful 1hp motor provides plenty of power and torque to easily handle large sections of timber and the dynamically balanced disc ensures smooth operation.
This machine is in a different league to other disc sanders. When seen in action, the build quality and performance speak for themselves.
Features

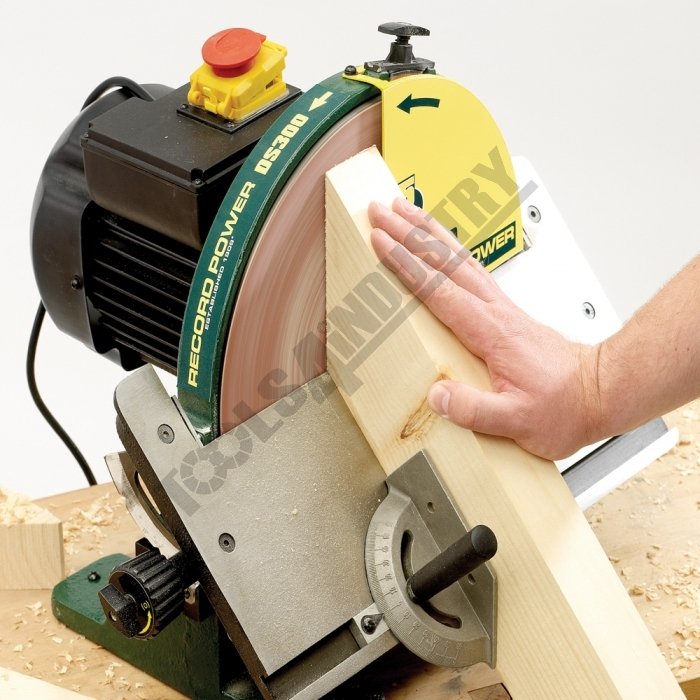

- Tilting Table - The table can tilt up to 45º, giving great flexibility of use, particularly when used in conjunction with the adjustable mitre fence (included).

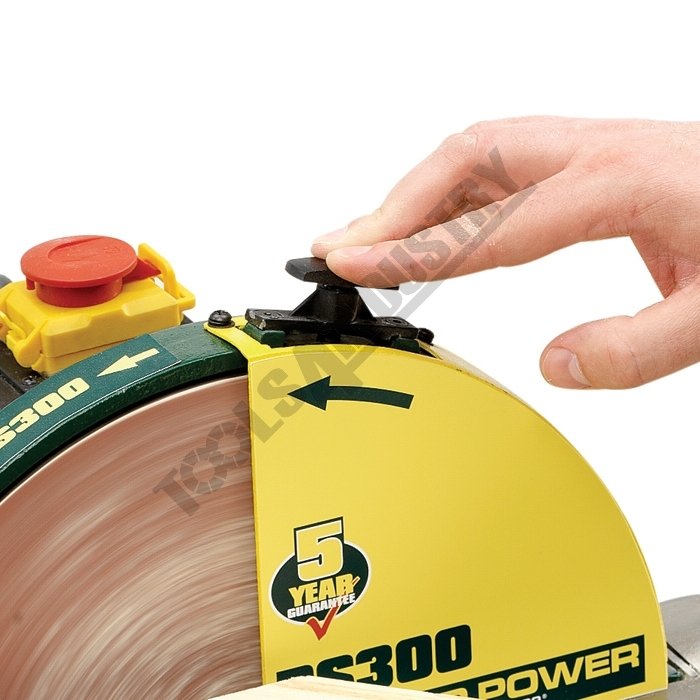

- Effective Manual Brake - For extra safety and convenience, the disc can be stopped quickly with very little pressure.

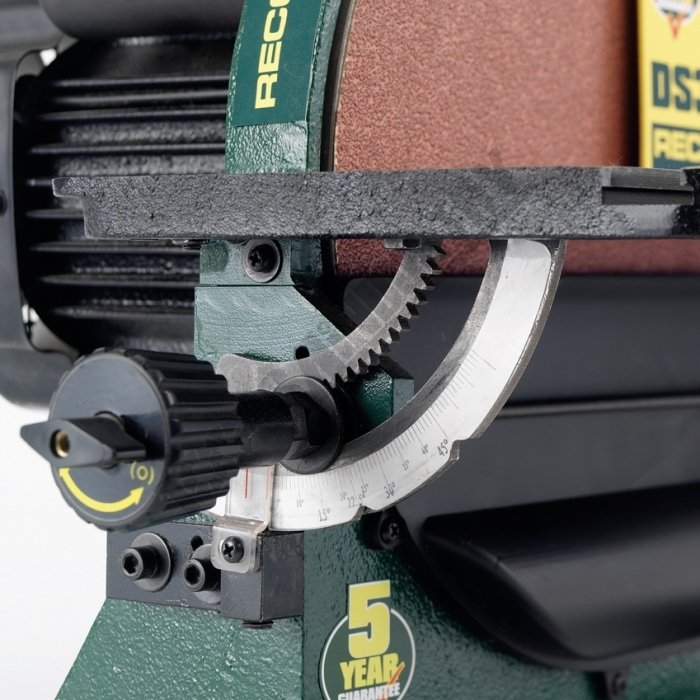

- Rack and Pinion Table Tilt - The rack and pinion mechanism, provides easy and accurate tilt up to 45º.

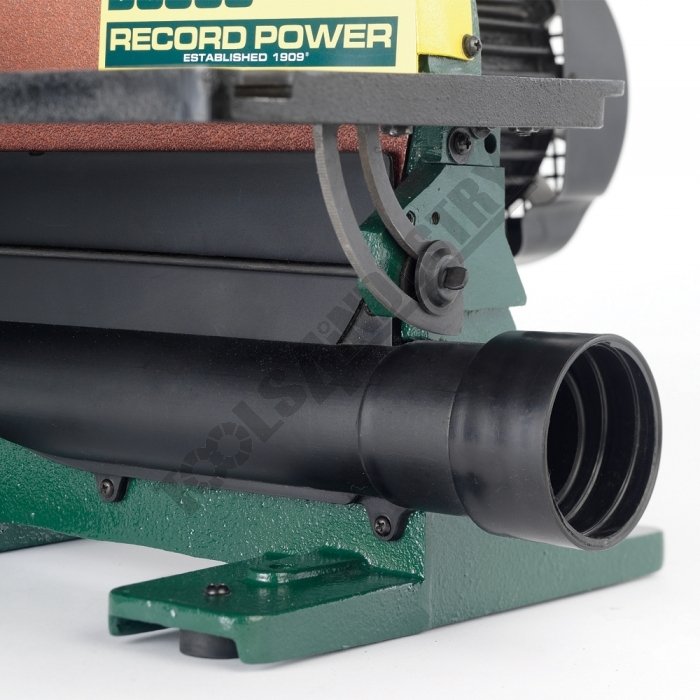

- Dust Extraction - The DS300 is designed for effective waste extraction; as the machine is used, the dust is thrown down the extraction assembly to the port, ready to be fully removed using a suitable dust extraction machine.

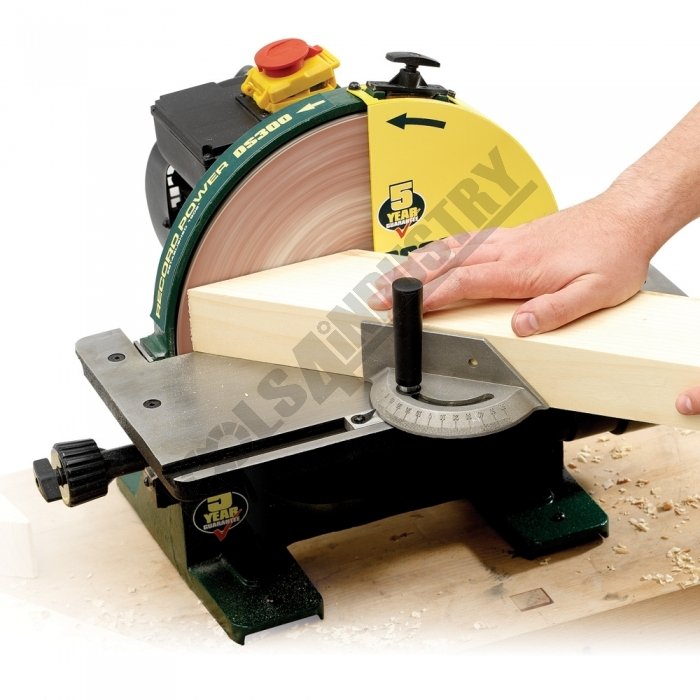

- Table - Finely ground cast iron table provides superior support.
- Table Size: 435 x 165mm
- Disc Speed: 1420rpm
- Size: L450 x W510 x H400mm
Includes
- Mitre fence
Specifications
- Compare 7 Products
- ORDER CODE
- MODEL
- Type
- Disc Diametermm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Floor Space (W x D x H)mm
- Nett Weightkg

- R904
- DS300
- Bench
- Ø305
- 0.75 / 1
- 240 / 10
- ~
- 33

- L133
- DS-12D
- Bench
- Ø305
- 0.75 / 1
- 240 / 10
- ~
- 32

- L1336
- DS305
- Bench
- Ø305
- 0.75 / 1
- 240 / 10
- 510 x 500 x 385
- 36

- L1335
- DS300
- Bench
- Ø305
- 0.75 / 1
- 240 / 10
- 510 x 500 x 385
- 36

- L135
- DS-12S
- Pedestal
- Ø305
- 0.75 / 1
- 240 / 10
- 430 x 710 x 1310
- 76

- L1352
- DS-15S
- Pedestal
- Ø380
- 1.5 / 2
- 240 / 15
- 550 x 650 x 1340
- 96

- L1354
- DS-15S
- Pedestal
- Ø380
- 1.5 / 2
- 415
- 550 x 650 x 1340
- 96
| ORDER CODE | DS300 |
|---|---|
| MODEL | Bench |
| Type | Ø305 |
| Disc Diametermm | 0.75 / 1 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | ~ |
| Floor Space (W x D x H)mm | 33 |
| Nett Weightkg |
