Code Q239
Model 33-239
Capacity 0-20mm/0.8"
Weight (kg) 0.86
Weight (m3) 0.002
Weight (Freight) 0.86
Dimensions (cm) 23.5 x 17 x 5.5
MEASUMAX
1 Year
RS232

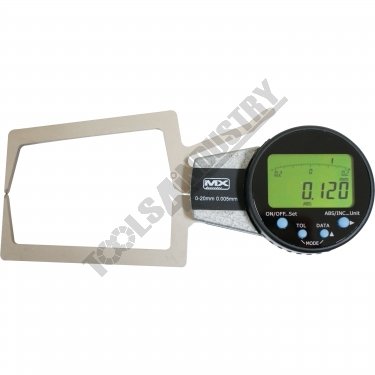

33-239 Outside Caliper Gauge 0-20mm/0.8"

Description

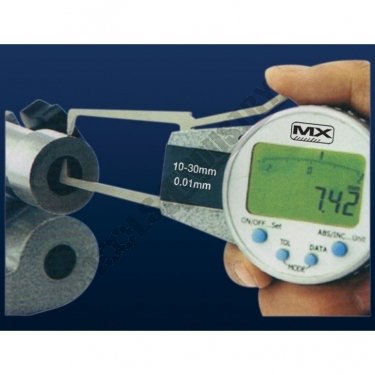

Electronic outside caliper gauges are suitable for the measurement of grooves or dimensions that cannot be reached with a micrometer or vernier caliper

Features

  • Digital and analogue display on LCD
  • Function include Power, Absolute & Incremental
  • Metric/Imperial conversion
  • Remembers the data of Max. and Min. or hold data
  • Direct RS232 Output (Uses cable 40-401)
  • Auto Power off
  • Accuracy 0.03mm
  • Tolerance set

Includes

  • Includes CR2032 battery

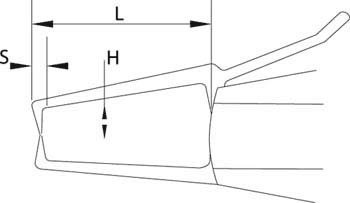

Specifications

ORDER CODE0 - 20mm / 0 - 0.8"
Range0.01mm / 0.0005"
Graduations80
Lmm6.5
Smm25
Hmm
