Code Q234
Model 33-234
Capacity 1-26 module
Weight (kg) 0.48
Weight (m3) 0.001
Weight (Freight) 0.48
Dimensions (cm) 21 x 15 x 2
MEASUMAX
1 Year

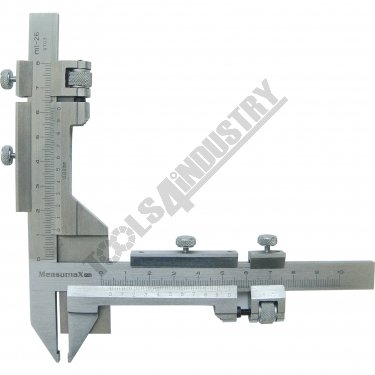

33-234 Gear Tooth Vernier Caliper 1-26 module

Features

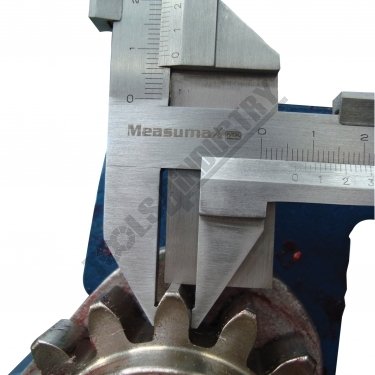

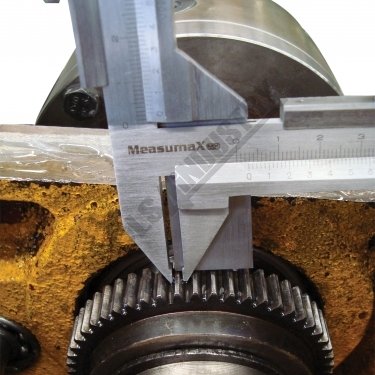

  • One of the benefits using a caliper is that the gear does not have to be removed from the machine
  • The caliper consists of two adjustable verniers, that reference two dimensions on the gear and provide a measurement
  • Vertical scale: Measures the depth of the teeth from the top of the pitch line
  • Horizontal Scale: This is used to measure the Chordal Thickness of the gear tooth

Specifications

ORDER CODE1 - 26 Module
Range0.02
Graduationsmm±0.02
Accuracymm
