Code Q1851
Model 31-1851
Capacity 150mm / 6"
Weight (kg) 0.52
Weight (m3) 0.001
Weight (Freight) 0.52
Dimensions (cm) 27 x 11.5 x 3
MEASUMAX
1 Year
IP67

31-1851 Digital Caliper - Coolant Proof 150mm / 6"

Description

Coolant Proof IP-67 (CEI60529). Precision digital calipers with stainless steel body and slides. Ideal application where dust and coolant is prevalent

The international ratings organisation explain the following conditions for IP-67
The "6" denotes: "Protected against dust - limited ingress (no harmful deposit)"
The "7" denotes: "Protected against immersion between a depth of 15cm to 1 meter in fluids"

Features

  • New ABSOLUTE measuring system with memory hold and ABS/INC
  • Fully protected against the penetration of liquids
  • IP-67 prevents dust, water or oil from entering the caliper through effective encapsulation of the main parts
  • Large clear screen display - Metric/Imperial conversions at any position, Zero switches at any position. The memory hold function allows for the reading to be kept even after the unit is switched off.
  • Manual switch off
  • Supplied in fitted blow mould case

Includes

  • Includes CR2032 battery

Specifications

ORDER CODE150mm / 6"
Sizemm / inch0.01mm / 0.0005"
Resolutionmm / inchIP67
Coolant ProofRatingYes
4 WayYes / No17

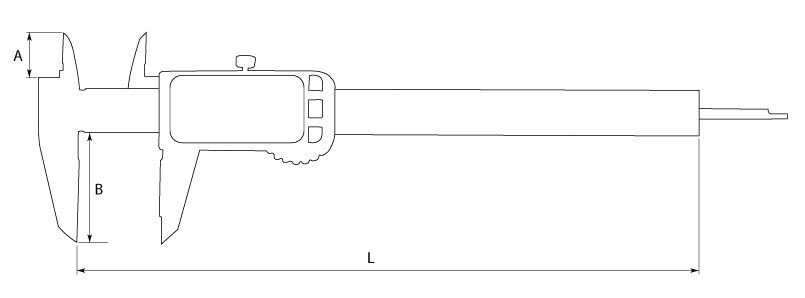

Amm40
Bmm220
Lmm
