This Product Is No Longer Available
| Code | Q157 |
|---|---|
| Model | 25-157 |
| Capacity | 1000-3000mm |
| Weight (kg) | 4.04 |
| Weight (m3) | 0.044 |
| Weight (Freight) | 14.652 |
| Dimensions (cm) | 112x 23 x 17 |
Product Brochure
This Product Is No Longer Available

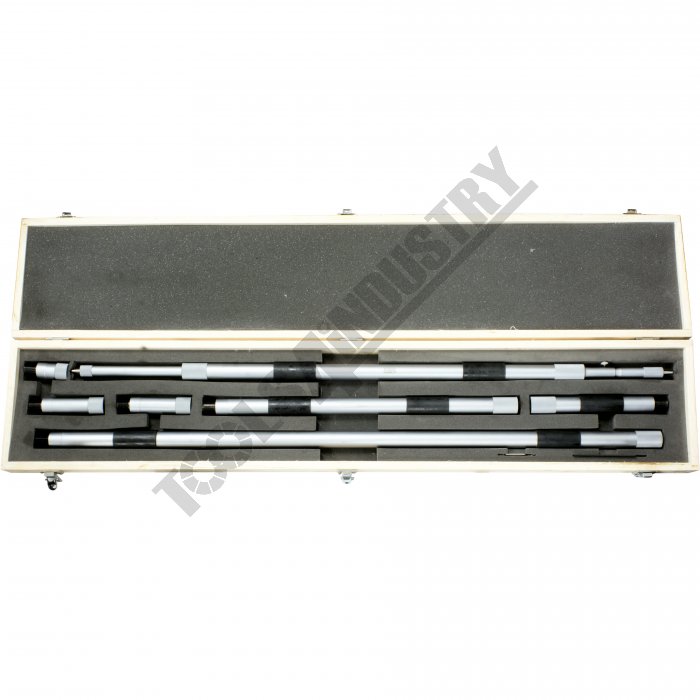

Large Tube Type - Inside Micrometer 25-157 1000-3000mm
Description
Measumax series 25 inside micrometers are tube type with high rigidity for large diameter measuring.Features
- The anvil and the spindle are hardened and precision ground
- Spindle thread is hardened and precision ground
- Carbide measuring faces
- Each interchangeable rod is marked with the range
- Large diameter rod for rigidity
- Graduation: 0.01mm
Specifications
- Compare 6 Products
- ORDER CODE
- Rangemm / inch
- Micrometer Headmm / inch
- Head Travelmm
- Graduationmm / inch
- Extension Rods
- Rod Diametermm
- Accuracyµm
- Q157
- 1000 - 3000
- 1000 - 1050
- 50
- 0.01mm
- 50, 2x100, 200, 500, 1000
- 28
- (7+n+L/50)
- Q156
- 1000 - 2000
- 1000 - 1050
- 50
- 0.01mm
- 50, 2x100, 200, 500
- 28
- (7+n+L/50)
- Q1491
- 50 - 300
- 50 - 63
- ~
- 0.01mm
- 13, 25, 50 (2pce), 100
- ~
- ~
- Q1495
- 2 - 12"
- 2 - 2.5"
- ~
- 0.001"
- 0.5", 1", 2" (2pce), 4"
- ~
- ~
- Q150
- 50 - 500
- 50 - 63
- ~
- 0.01mm
- 13,25,50 (2pce),100, 200
- ~
- ~
- Q155
- 100 - 1300
- 100 - 125
- 25
- 0.01mm
- 25, 50, 100, 200, 2x400mm
- 22
- (3+n+L/50)
| ORDER CODE | 1000 - 3000 |
|---|---|
| Rangemm / inch | 1000 - 1050 |
| Micrometer Headmm / inch | 50 |
| Head Travelmm | 0.01mm |
| Graduationmm / inch | 50, 2x100, 200, 500, 1000 |
| Extension Rods | 28 |
| Rod Diametermm | (7+n+L/50) |
| Accuracyµm |
