ARCDROID X2 Large cut indexing system

Description

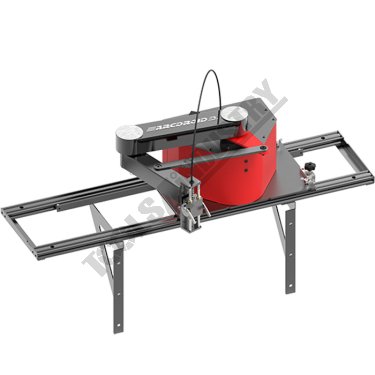

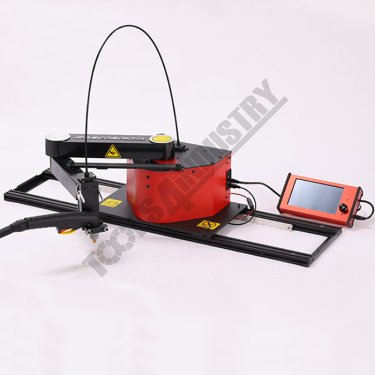

The X2 is an upgrade to any existing ArcDroid that increases the X axis cutting width to over 1220mm cutting envelope without sacrificing the ease of use and portability that you’ve all come to know and love.

Using a custom encoder and a set of slide rails the X2 allows you to stitch together cuts into one big cut easily. Simply slide to the left and cut the first half then slide to the right and cut the rest.

The X2 system will do all the math for you! You need a box 800 x 350.. no problem. Got to cut a 1220mm long ArcDroid Logo for your shop…we got you. Simple Trace™ and main firmware updates make it easy, all you need to do is choose a dividing point.

Features

  • MULTIPLY THE EFFECTIVE CUTTING AREA OF YOUR ARCDROID™
  • Full depth edge to edge cutting on a 1220 wide sheet!

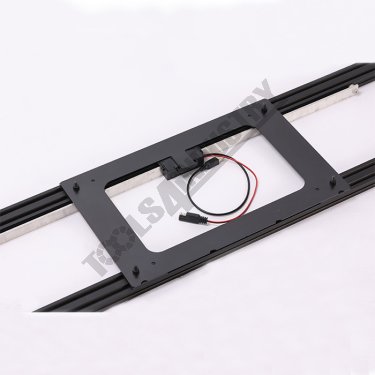

  • A specialised encoder and rail system as well as updates to our Simple Trace™ Operating System allow easy and automatic splitting and re-stitching of larger size cut files

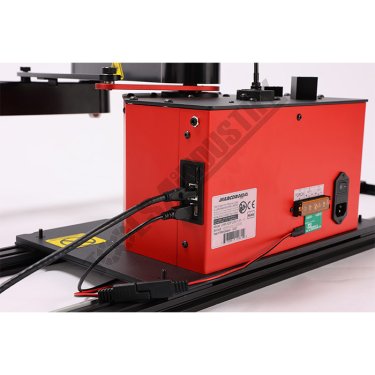

  • Simple low-profile system easily retrofitted to your Existing ArcDroid™ without sacrificing portability.
  • Mount flush to a surface or use the supplied brackets to support on the side of a table.
  • Requires free update for both Simple Trace™ and main machine firmware. Available for download from the Arcdroid website.

Specifications

ORDER CODE~
MODEL~
Cutting capacitymm~
Arcdroid input voltageV / Amps~
Plasma input voltageV / Amps~
Plasma cutting unit~
CNC Cable
