Code P065
Model PPB-2
Capacity Ø1/2 - Ø2" NB Pipe Capacity
Weight (kg) 43
Weight (m3) 0.093
Weight (Freight) 43
Dimensions (cm) 64 x 58 x 25
HAFCO
1 Year

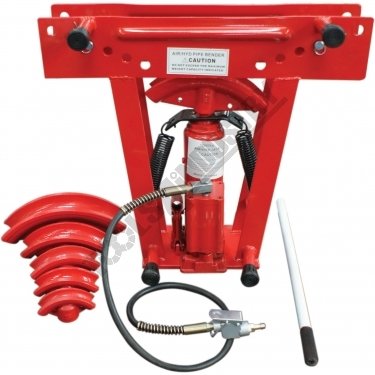

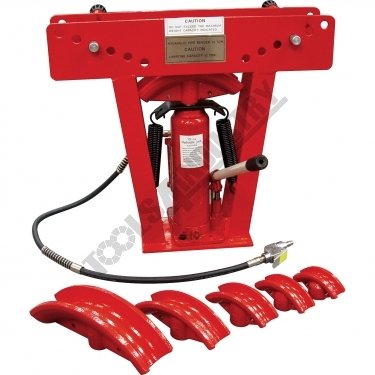

PPB-2 Hydraulic & Pneumatic Pipe Bender Ø1/2 - Ø2" NB Pipe Capacity

Description

PNEUMATIC WATER PIPE BENDER

Features

  • 6 cast steel pipe formers to suit (Ø1/2", Ø3/4", Ø1", Ø1-1/4", Ø1-1/2", Ø2" water pipe)

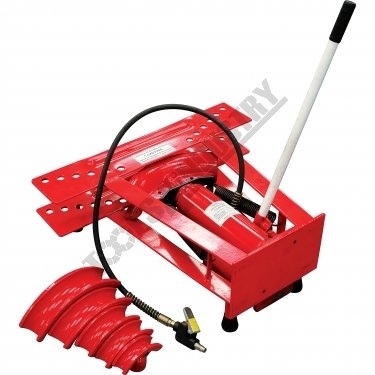

  • Designed to work on its side as well as vertically
  • Quick & easy to adjust guide pins to suit pipe
  • Bend pipe up to a maximum of 90º
  • 12 tonne bottle jack
  • Spare formers and seal kits available

Includes

  • Pipe Formers:
  • (Ø1/2", Ø3/4", Ø1", Ø1-1/4", Ø1-1/2", Ø2")

Specifications

ORDER CODEPPB-2
MODELPipe
MaterialTypeRound
Material SectionTypePneumatic & Manual Hyd.
MachineType12
Hydraulic Jack SizeTonneØ1/2" - Ø2"
Round Pipe Range (NB) - Mild Steelinch / mm~
Round Tube Range (OD) - Mild Steelinch / mm~
Square Tube Rangeinch / mm~
Tube Wall Thickness - Mild Steelinch / mm~
Round Pipe (NB) x Wall Capacity - Mild Steelinch~
Round Pipe (NB) x Wall Capacity - Aluminiuminch / mm~
Round Pipe (NB) x Wall Capacity - Stainless Steelinch / mm~
Round Tube (OD) x Wall Capacity - Mild Steelinch / mm~
Round Tube (OD) x Wall Capacity - Aluminiuminch / mm~
Round Tube (OD) x Wall Capacity - Copper, Brassinch / mm~
Round Tube (OD) x Wall Capacity - Stainless Steelinch / mm~
Round Tube (OD) x Wall Capacity - Chromolyinch / mm~
Solid Rod - Mild Steelinch / mm~
Square Tube x Wall Capacity - Mild Steelinch / mm~
Rectangle Tube x Wall Capacity - Mild Steelinch / mm~
Bend Speed - MaximumDeg / Sec~
Bend Direction~
Centre Line Radius - Maximum (CLR)inch / mm~
Centre Line Radius - Minimum (CLR)inch / mm~


Tube Formers Includedinch / mm1/2", 3/4", 1", 1-1/4",
1-1/2", 2"
Pipe Formers Includedinch / mm20
Spigot Size on Raminch / mm~
Angle Capacitydeg~
Hydraulic Pressure - Maximumpsi~
Motor PowerkW / hp~
Voltage / AmperageV / amp640 x 580 x 250
Shipping Dimensionsmm43
Nett Weightkg
