Code P020
Model CHP-60
Capacity 22.5 - 61.5mm
Weight (kg) 15
Weight (m3) 0.040
Weight (Freight) 15
Dimensions (cm) 40 x 40 x 25
TOOLMASTER
1 Year

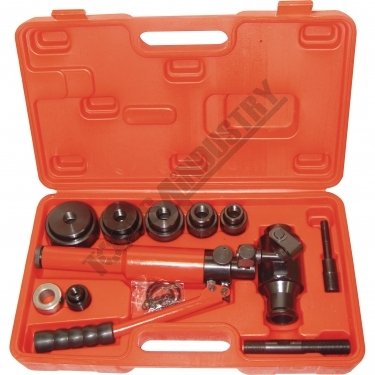

CHP-60 Hydraulic Chassis Punch Set 22.5 - 61.5mm

Description

Hydraulic Chassis Punch Set with Dies

Features

  • Suitable for punching holes in sheet metal
  • 1.6mm sheet metal capacity in mild steel
  • 2mm sheet metal capacity in mild steel up to 28.3mm diameter
  • Swivel punch head allows for better pump positioning
  • Includes 22.5, 28.3, 34.6, 43.2, 49.6, & 61.5mm hole punching die sets
  • Includes blow mould carry case

  • Note: Requires a 12mm hole prior hole punching

Specifications

ORDER CODECHP-60
MODEL6
Quantity of DiesNo.22.5, 28.3, 34.6, 43.2,
49.6, & 61.5
Hole Punch Die Set Sizesmm
