| Code | M225 |
|---|---|
| Model | SHA-125 |
| Capacity | 125mm Stroke |
| Weight (kg) | 143 |
| Weight (m3) | 0.211 |
| Weight (Freight) | 143 |
| Dimensions (cm) | 75 x 67 x 42 |

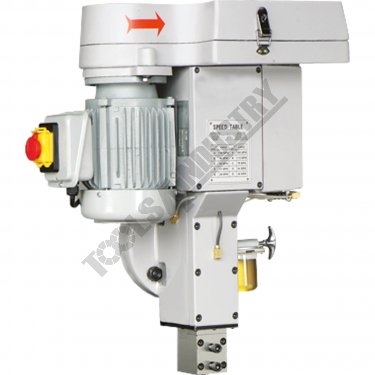

Precision Slotting Head Attachment SHA-125 125mm Stroke
Description
Designed for turret milling machines with a tail lug.Features
- Manufactured from heavy duty casting for rigidity
- Transmission of power is provided through a specifically designed high output worm drive
- The sliding surfaces of the Ram are hardened and ground
- One shot lubrication built in
- Emergency stop for safe operation

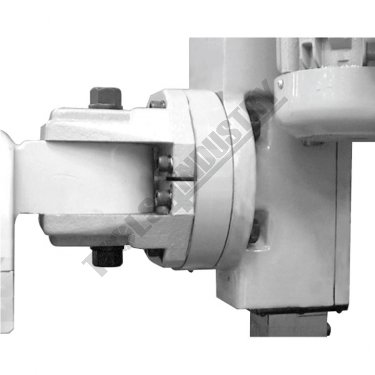

- Includes adjustable mounting bracket to suit most turret type milling machines
- Suits 25mm diameter tooling
Specifications
- Compare 1 Products
- ORDER CODE
- MODEL
- Strokemm
- Ram Stroke (stroke/min.)
- Motor Powerhp
- VoltageV
- Nett Weightkg
- M225
- SHA-125
- 125
- 30, 47, 69, 98, 140
- 3/4
- 415
- 180
| ORDER CODE | SHA-125 |
|---|---|
| MODEL | 125 |
| Strokemm | 30, 47, 69, 98, 140 |
| Ram Stroke (stroke/min.) | 3/4 |
| Motor Powerhp | 415 |
| VoltageV | 180 |
| Nett Weightkg |
