| Code | K8804 |
|---|---|
| Model | QLD Schools / TAFE |
| Capacity | QLD Contract |
| Weight (kg) | 185 |
| Weight (m3) | 0.616 |
| Weight (Freight) | 205.128 |
| Dimensions (cm) | 136 x 73 x 62 |

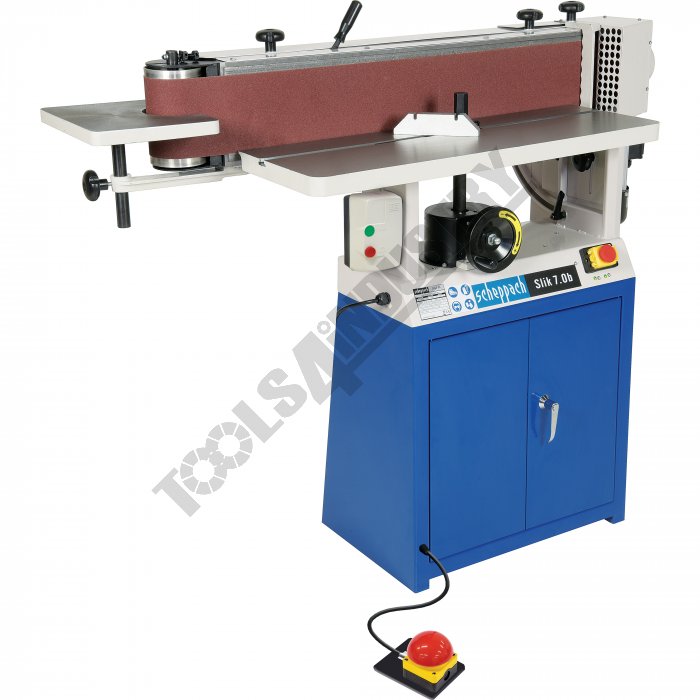

Slik 7.0b Oscillating Belt Sander QLD Schools / TAFE QLD Contract
Features
- Oscillating sander with graphite pad for smooth operation
- Easy belt tracking adjustment
- Rear material guide stop
- Safety magnetic stop switch
- 90 ~ 180º tilting sanding belt
- 2515mm x 150mm belt with 16M/sec belt speed
- 90 ~ 40º tilting cast iron side table
- 850 x 300mm cast iron side table with 90mm height adjustment
- Table height adjustment via hand wheel located in convenient location
- 300 x 245mm cast iron end table with 130mm height adjustment
- 2.2kW / 3hp, 2800rpm, 240V direct drive motor
Includes
- Cabinet storage stand
- End & side cast iron tables
- Spare linishing belts
- Aluminium mitre guide
- Table guide support

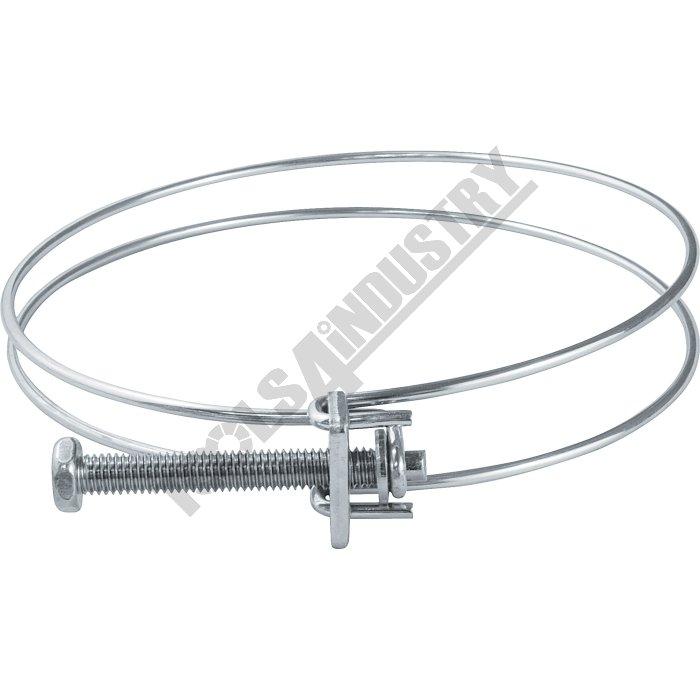

- (W340) - DCC-100 - Dust Hose Clamp - Ø100mm (4") x2

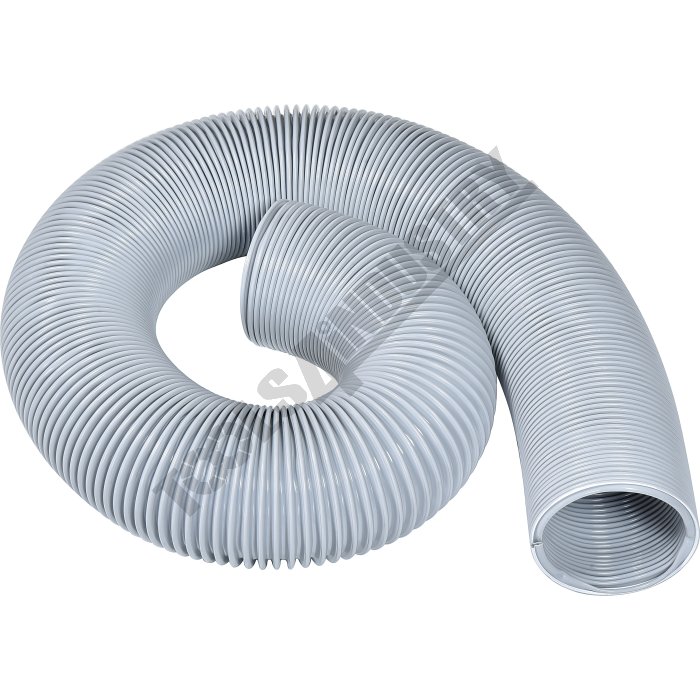

- (W3981) - DCH-100-3 - 3 Metre PVC Dust Hose - Ø100mm (4")
- Included Safety Feature
- Roving E-Stop
Specifications
- Compare 1 Products
- ORDER CODE
- NSW DOE Item No.
- QLD DOE Item No.
- MODEL
- Disc Diametermm
- Variable Table Feed Speedm/min
- Sanding Drum Speedrpm
- Belt Sizemm
- Drum Diametermm
- Max Sanding Widthmm
- Max Sanding Thicknessmm
- Min Sanding Thicknessmm
- Dust Collector PortsNo. x mm
- Feed Motor Powerhp
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Nett Weight
- K8804
- ~
- Schools / TAFE
- ~
- ~
- ~
- 2515 x 150
- ~
- ~
- ~
- ~
- ~
- ~
- 2.2 / 3
- 240 / 15
- 185
| ORDER CODE | ~ |
|---|---|
| NSW DOE Item No. | |
| QLD DOE Item No. | Schools / TAFE |
| MODEL | ~ |
| Disc Diametermm | ~ |
| Variable Table Feed Speedm/min | ~ |
| Sanding Drum Speedrpm | 2515 x 150 |
| Belt Sizemm | ~ |
| Drum Diametermm | ~ |
| Max Sanding Widthmm | ~ |
| Max Sanding Thicknessmm | ~ |
| Min Sanding Thicknessmm | ~ |
| Dust Collector PortsNo. x mm | ~ |
| Feed Motor Powerhp | 2.2 / 3 |
| Motor PowerkW / hp | 240 / 15 |
| Voltage / AmperageV / amp | 185 |
| Nett Weight |
