This Product Is No Longer Available
| Code | C037 |
|---|---|
| Capacity | ØØ3/4" |
| Weight (kg) | 0.24 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.24 |
| Dimensions (cm) | 11 x 3.5 x 3 |
Product Brochure
This Product Is No Longer Available

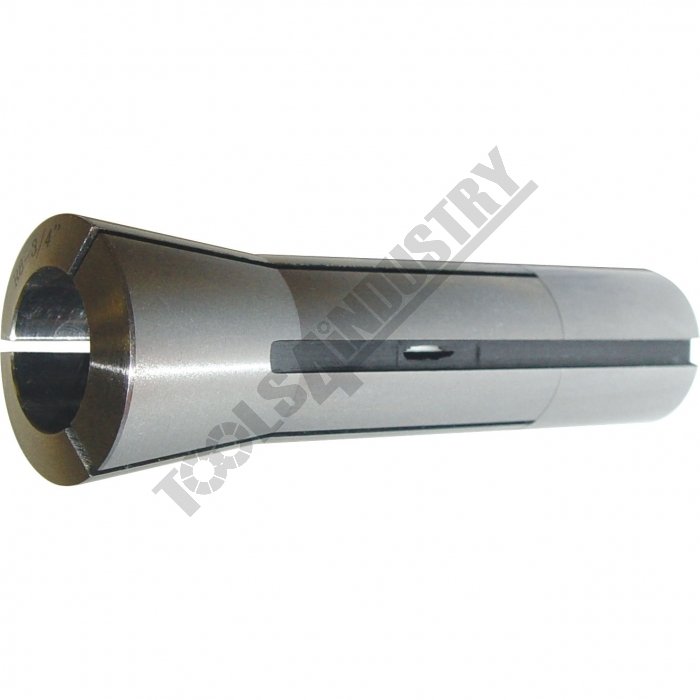

R8 Collet ØØ3/4"
Description
These collets are usually used where the collet is fitted directly into the spindle taper and are secured with a drawbar.They have the advantage of mounting the cutter close to the spindle nose increasing rigidity.
Specifications
- Compare 103 Products
- ORDER CODE
- Type
- Metric Sizemm
- Imperial Sizeinch
- C037
- R8
- ~
- 3/4"
- C822
- ER16
- 2 - 1
- ~
- C823
- ER16
- 3 - 2
- ~
- C824
- ER16
- 4 - 3
- ~
- C825
- ER16
- 5 - 4
- ~
- C826
- ER16
- 6 - 5
- ~
- C827
- ER16
- 7 - 6
- ~
- C828
- ER16
- 8 - 7
- ~
- C829
- ER16
- 9 - 8
- ~
- C830
- ER16
- 10 - 9
- ~
- C843
- ER20
- 2 - 1
- ~
- C8431
- ER20
- 3 - 2
- ~
- C8432
- ER20
- 4 - 3
- ~
- C8433
- ER20
- 5 - 4
- ~
- C8434
- ER20
- 6 - 5
- ~
- C8435
- ER20
- 7 - 6
- ~
- C8436
- ER20
- 8 - 7
- ~
- C8437
- ER20
- 9 - 8
- ~
- C8438
- ER20
- 10 - 9
- ~
- C8439
- ER20
- 11 - 10
- ~
- C844
- ER20
- 12 - 11
- ~
- C8441
- ER20
- 13 - 12
- ~
- C855
- ER25
- 2 - 1
- ~
- C8551
- ER25
- 3 - 2
- ~
- C8552
- ER25
- 4 - 3
- ~
- C8553
- ER25
- 5 - 4
- ~
- C8554
- ER25
- 6 - 5
- ~
- C8555
- ER25
- 7 - 6
- ~
- C8556
- ER25
- 8 - 7
- ~
- C8557
- ER25
- 9 - 8
- ~
- C8558
- ER25
- 10 - 9
- ~
- C8559
- ER25
- 11 - 10
- ~
- C8561
- ER25
- 12 - 11
- ~
- C8562
- ER25
- 13 - 12
- ~
- C8563
- ER25
- 14 - 13
- ~
- C8564
- ER25
- 15 - 14
- ~
- C8565
- ER25
- 16 - 15
- ~
- C903
- ER32
- 3 - 2
- ~
- C904
- ER32
- 4 - 3
- ~
- C905
- ER32
- 5 - 4
- ~
- C906
- ER32
- 6 - 5
- ~
- C907
- ER32
- 7 - 6
- ~
- C908
- ER32
- 8 - 7
- ~
- C909
- ER32
- 9 - 8
- ~
- C910
- ER32
- 10 - 9
- ~
- C911
- ER32
- 11 - 10
- ~
- C912
- ER32
- 12 - 11
- ~
- C913
- ER32
- 13 - 12
- ~
- C914
- ER32
- 14 - 13
- ~
- C915
- ER32
- 15 - 14
- ~
- C916
- ER32
- 16 - 15
- ~
- C917
- ER32
- 17 - 16
- ~
- C918
- ER32
- 18 - 17
- ~
- C919
- ER32
- 19 - 18
- ~
- C920
- ER32
- 20 - 19
- ~
- C934
- ER40
- 4 - 3
- ~
- C935
- ER40
- 5 - 4
- ~
- C936
- ER40
- 6 - 5
- ~
- C937
- ER40
- 7 - 6
- ~
- C938
- ER40
- 8 - 7
- ~
- C939
- ER40
- 9 - 8
- ~
- C940
- ER40
- 10 - 9
- ~
- C941
- ER40
- 11 - 10
- ~
- C942
- ER40
- 12 - 11
- ~
- C943
- ER40
- 13 - 12
- ~
- C944
- ER40
- 14 - 13
- ~
- C945
- ER40
- 15 - 14
- ~
- C946
- ER40
- 16 - 15
- ~
- C947
- ER40
- 17 - 16
- ~
- C948
- ER40
- 18 - 17
- ~
- C949
- ER40
- 19 - 18
- ~
- C950
- ER40
- 20 - 19
- ~
- C951
- ER40
- 21 - 20
- ~
- C952
- ER40
- 22 - 21
- ~
- C953
- ER40
- 23 - 22
- ~
- C954
- ER40
- 24 - 23
- ~
- C955
- ER40
- 25 - 24
- ~
- C956
- ER40
- 26 - 25
- ~
- C133
- 3MT
- 6
- ~
- C134
- 3MT
- 10
- ~
- C030
- R8
- 12
- ~
- C032
- R8
- 20
- ~
- C029
- R8
- 10
- ~
- C135
- 3MT
- 12
- ~
- C972
- C32
- 10
- ~
- C975
- C32
- 16
- ~
- C970
- C32
- 6
- ~
- C976
- C32
- 20
- ~
- C978
- C32
- 25
- ~
- C973
- C32
- 12
- ~
- C971
- C32
- 8
- ~
- C136
- 3MT
- 16
- ~
- C131
- 3MT
- ~
- 5/8"
- C129
- 3MT
- ~
- 3/8"
- C128
- 3MT
- ~
- 1/4"
- C130
- 3MT
- ~
- 1/2"
- C132
- 3MT
- ~
- 3/4"
- C028
- R8
- 6
- ~
- C031
- R8
- 16
- ~
- C034
- R8
- ~
- 3/8"
- C036
- R8
- ~
- 5/8"
- C033
- R8
- ~
- 1/4"
- C035
- R8
- ~
- 1/2"
| ORDER CODE | R8 |
|---|---|
| Type | ~ |
| Metric Sizemm | 3/4" |
| Imperial Sizeinch |
