This Product Is No Longer Available
| Code | V360 |
|---|---|
| Model | VCV-160V-L |
| Capacity | 160 x 400mm |
| Weight (kg) | 81 |
| Weight (m3) | 0.064 |
| Weight (Freight) | 81 |
| Dimensions (cm) |
Product Brochure
This Product Is No Longer Available

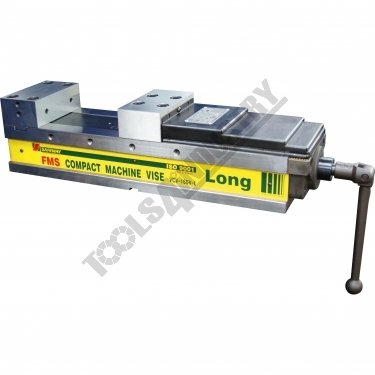

Compact Power Machine Vice VCV-160V-L 160 x 400mm
Description
Long Series precision machine vice with modular jaws. Replaceable jaws allow for special purpose holding of components.Other sizes available...
Features
- Maximum opening capacity while compact in overall length
- Toleranced all over for use with other vices as matched pairs
- Rigid material- Ductile Iron FCD60 JIS. Equal to GGG60. 80,000 psi tensile strength
- Vice bed flame hardened to HRC 45
- Chip cover to protect leadscrew
- Jaws hardened to HRC 55

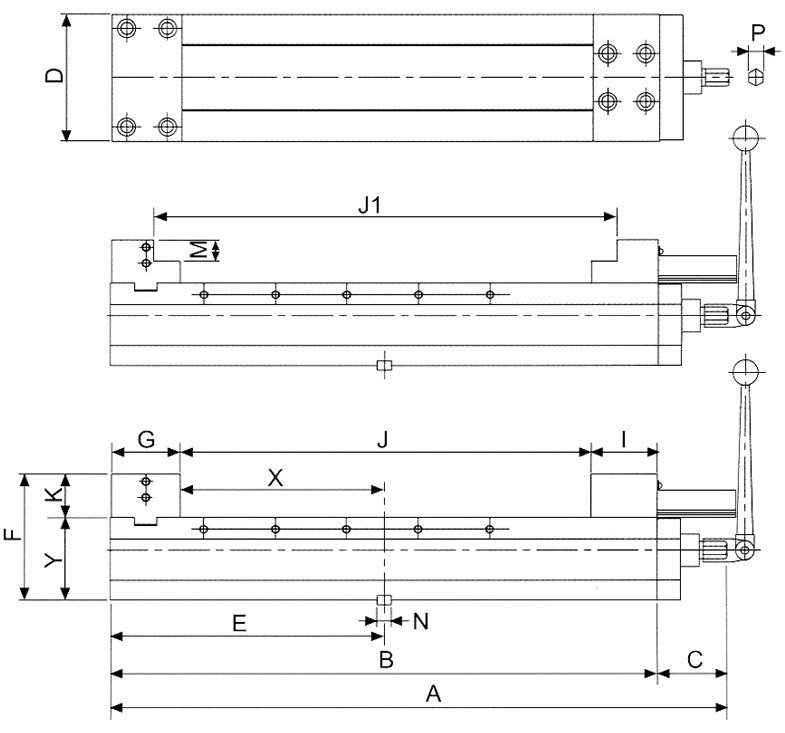

Specifications
- Compare 1 Products
- ORDER CODE
- MODEL
- Amm
- Bmm
- Cmm
- Dmm
- Emm
- Fmm
- Gmm
- Imm
- Jmm
- Kmm
- Nmm
- Mmm
- Pmm
- Xmm
- Ymm
- Nett Weightkg
- V360
- VCV-160V-L
- 688
- 590
- 98
- 161
- 124
- 160
- 86
- 86
- 400
- 55
- 18
- ~
- 19
- 208
- 105
- 66
| ORDER CODE | VCV-160V-L |
|---|---|
| MODEL | 688 |
| Amm | 590 |
| Bmm | 98 |
| Cmm | 161 |
| Dmm | 124 |
| Emm | 160 |
| Fmm | 86 |
| Gmm | 86 |
| Imm | 400 |
| Jmm | 55 |
| Kmm | 18 |
| Nmm | ~ |
| Mmm | 19 |
| Pmm | 208 |
| Xmm | 105 |
| Ymm | 66 |
| Nett Weightkg |
