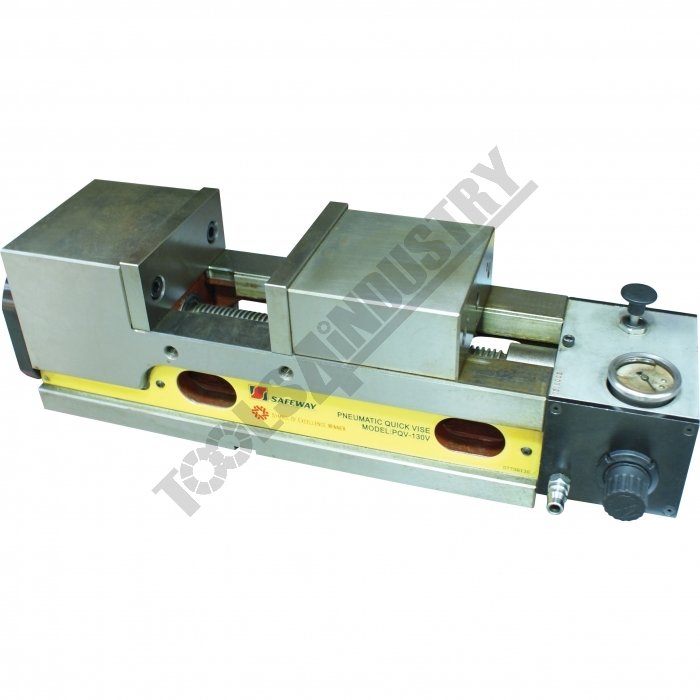

Safeway Pneumatic Production Vice PQV-100V 100mm Jaw Width

Description

Designed for production applications with simple ON/OFF operation.

Features

• Robust construction of one piece casting consisting of fixed jaw and vise bed
• Rigid casting of high tensile ductile iron FCD60JIS (Equal to GGG60) with 60kgs/mm2 or 80,000 psi tensile strength
• Suitable for mass production runs on machine centre's, milling machines, drilling machines or special purpose machines
• Compact pneumatic mechanism design. No oil is required only a air supply
• Compact total length of vice with Max, clamping capacity
• Safety locking mechanism for unexpected termination of air supply. After pneumatic clamping. The work piece will be remain clamped firmly even without the air supply
• Easy and simple ON-OFF switch control for pneumatic operation
• Safety protection with Max. pneumatic clamping stroke is 4mm to prevent inserting operator's finger during clamping operation. (Stroke is 2mm best power capacity)
• Rapid ON-OFF only 1.5sec
• Free adjusting of Max. pneumatic clamping pressure from 0-1000kgf (4000) by air regulator, jaw opening 2mm is best clamping power capacity of workpiece
• Vise bed flame hardened to HRC45° to reduce up wear and maintain accuracy
• Down trust "semi-spherical segment" mechanism eliminates the jaw and work-piece lifting
