This Product Is No Longer Available
| Code | V113 |
|---|---|
| Model | HFV-75W |
| Capacity | 75mm Jaw Width |
| Weight (kg) | 11.5 |
| Weight (m3) | 0.014 |
| Weight (Freight) | 11.5 |
| Dimensions (cm) | 35 x 19.5 x 21 |
Product Brochure
This Product Is No Longer Available
3 Way Angle Milling Vice HFV-75W 75mm Jaw Width
Description
Angles can be set in 3 planes:Features
- 360º swivel base
- The vice can be elevated through 90º from horizontal to vertical
- Tilts 45º from side to side
Specifications
- Compare 3 Products
- ORDER CODE
- MODEL

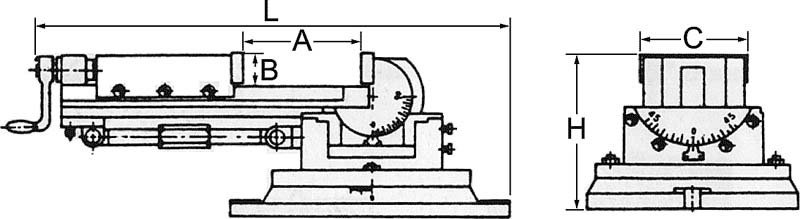

- C - Jaw Widthmm
- A - Jaw Openingmm
- B - Jaw Heightmm
- Hmm
- Lmm
- Nett Weightkg
| ORDER CODE | HFV-75W |
|---|---|
| MODEL | 75 |
| C - Jaw Widthmm | 82 |
| A - Jaw Openingmm | 35 |
| B - Jaw Heightmm | 150 |
| Hmm | 280 |
| Lmm | 12 |
| Nett Weightkg |
